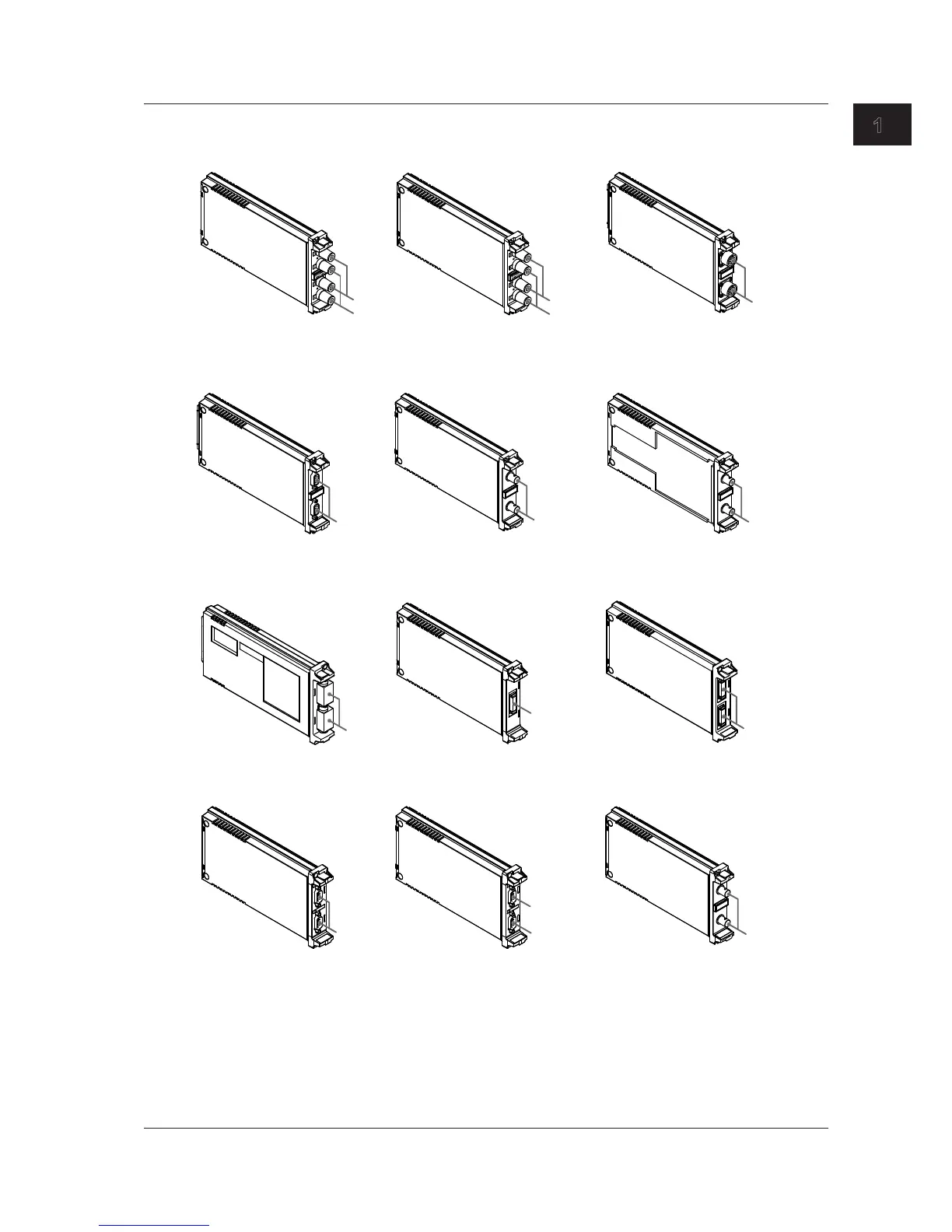

Names and Functions of Parts
16-CH Voltage Input Module
16CH VOLT (model: 720220)
CAN & LIN Bus Monitor Module
CAN & LIN (model: 720241)
CAN Bus Monitor Module
CAN MONITOR (model: 720240)
16-channel Temperature/Voltage
Input Module
16CH TEMP/VOLT (model: 720221)
SENT Monitor Module
SENT (model: 720243)
Temperature, High Precision
Voltage Isolation Module
TEMP/HPV (model: 701265)
H input terminal
L input terminal
(2ch)
Signal input
terminal (16ch)
Signal input
terminal
(16ch)
Logic probe
terminal
CAN bus signal input
terminal
LIN bus signal input
terminal
CAN bus signal
input terminal
SENT signal
input terminal
Frequency Module
FREQ (model: 720281)
Signal input
terminal
(2ch)
Acceleration/Voltage Module
(with AAF)
ACCL/VOLT (model: 701275)
Signal input
terminal (2ch)
Strain Module (DSUB, Shunt-Cal)
STRAIN_DSUB (model: 701271)
Signal input
terminal (2ch)
Strain Module (NDIS)
STRAIN_NDIS (model: 701270)
Signal input
terminal
(2ch)
Temp./Hi-Prec. Voltage
Module (Low Noise)
TEMP/HPV (model: 720266)
H input terminal
L input terminal
(2ch)
Logic Input Module
LOGIC (model: 720230)
