YOKOGAWA DL350 Getting Started Guide

1-8
IM DL350-03EN

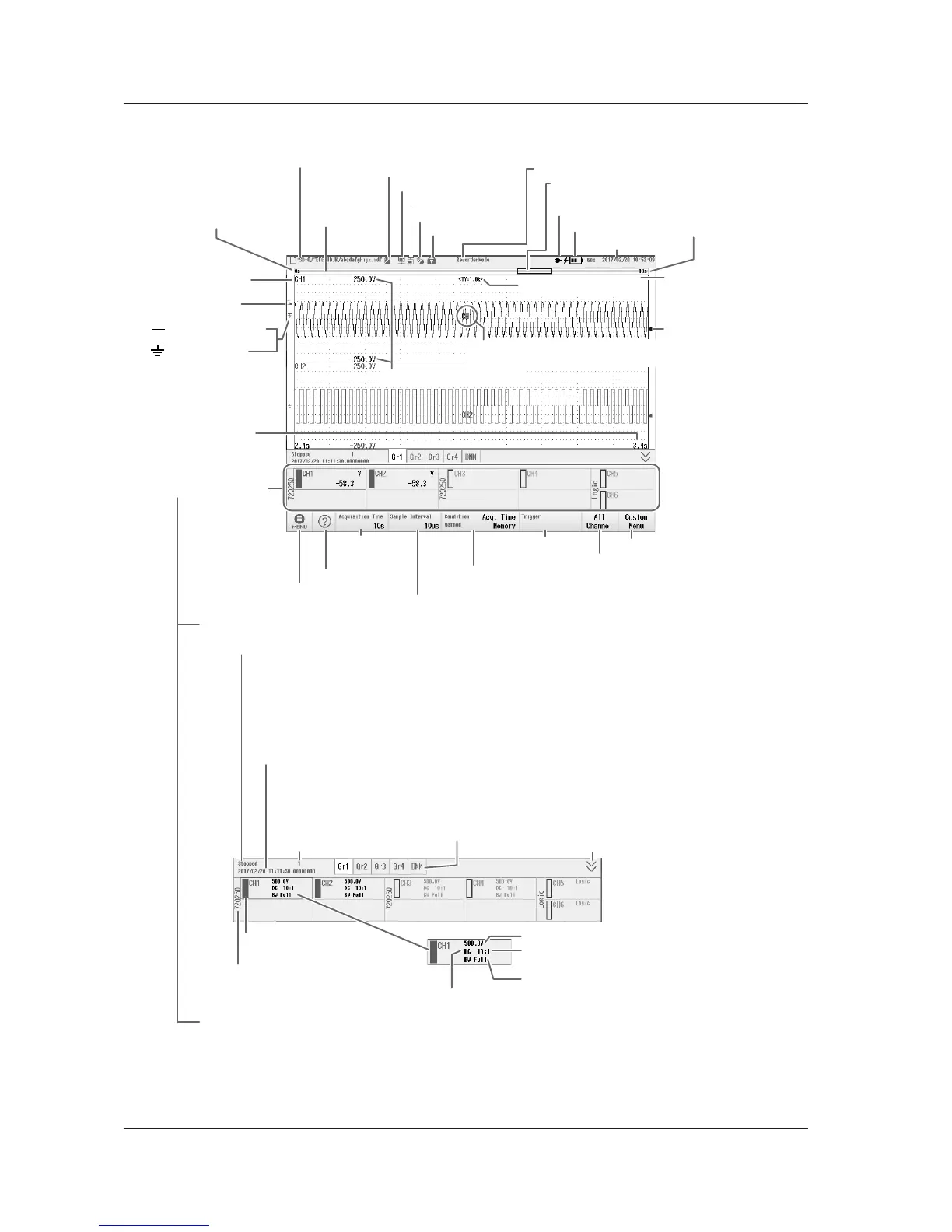

Recorder Mode Screen
Waveform acquisition state
Waveform acquisition
count
File name
Stopped: Stopped
Running: Running
Waiting for trigger: Waiting for trigger
Pre...: Acquiring pre-data
Post...: Acquiring post-data
SD Recording: SD recording
Time from the
trigger position
Channel Information
Level indicator
Time of the waveform time reference
When the record condition is set to preset time recording, the reference is the measurement start time.
When the record condition is set to continuous recording, the reference is the measurement end time.
In other situations, the reference is the trigger time.
System mode
Date and time
Battery level
SD card
Top menu
Help
Acquisition condition
Acquisition method
Trigger
settings
Custom menu
Display group Switches the channel information
display
When displaying channel settings
When displaying channel measurement data
Model of the input module in slot 1
Turns the waveform display
on and off
Input coupling
Vertical scale
Probe attenuation and current-to-voltage
conversion ratio
Bandwidth limit
The measured data of each input channel and that of logic input are displayed.
DC power connection
Web server
Acquisition/
record time
bar
Network drive
GPS
Key Lock
Display record length
Channel number of the displayed
waveform
Trigger level
Ground level
Channel number of
the display range
Vertical position
The display is
inverted when
Invert is set to ON.
Voltage-axis scale value
All channel setting
Acquisition/
record time
Sample interval
Time at the left edge
of the acquisition/
record time bar
Time at the right edge
of the acquisition/
record time bar
Waveform display section
Time of the waveform
display section
1.3 Screens
