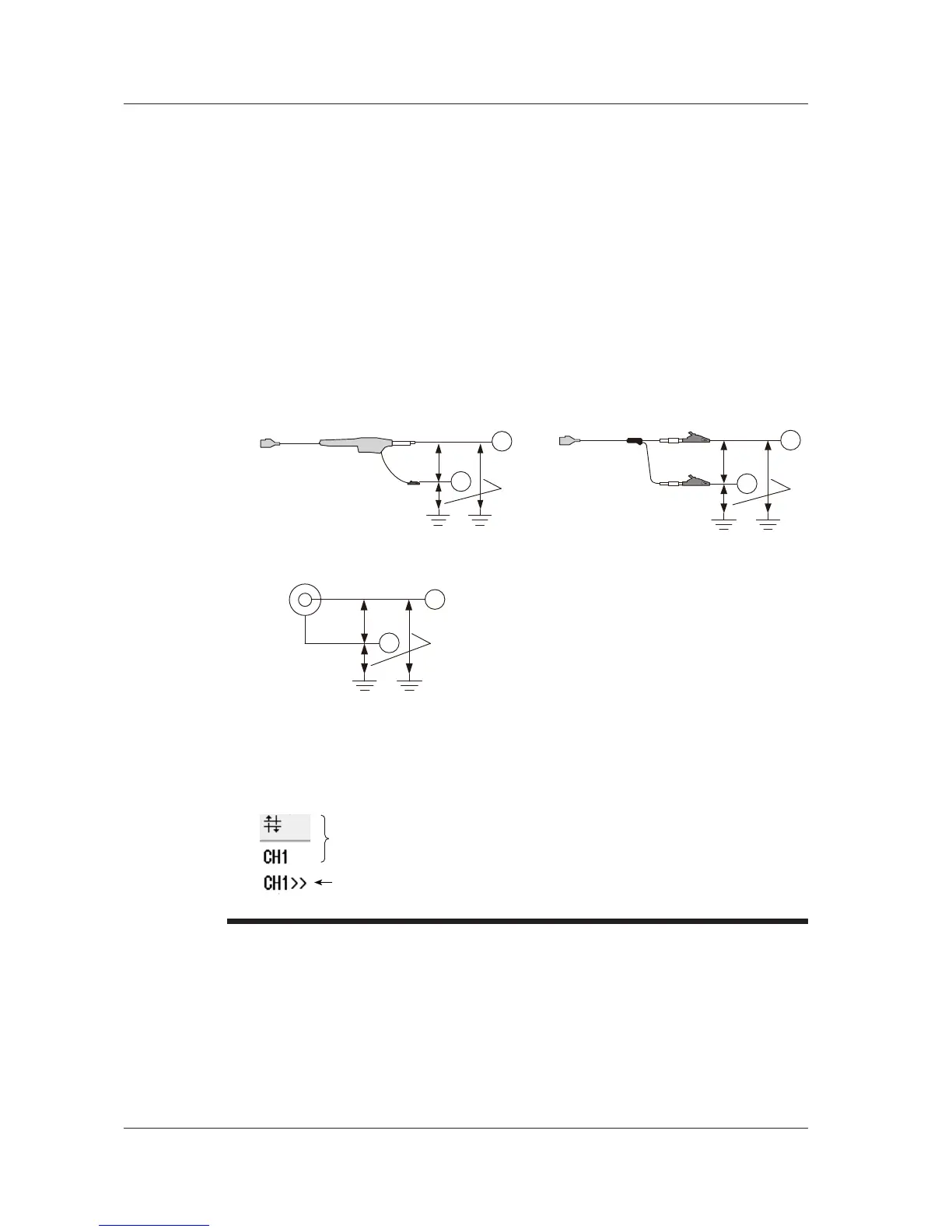

2.10 Connecting Probes
• 720243 (SENT)
Maximum input voltage (at a frequency of 1 kHz or less)
• In combination with an safety probe (10:1) 700929 or a wide temperature range type (10:1)
702902
1
420 V (DC + ACpeak)
• Safety cable (1:1) (combined with 701901+701954)
3
or direct input (cable that does not
comply with the safety standards)
5
42 V (DC + ACpeak)
Maximum rated voltage to ground (at a frequency of 1 kHz or less)
• In combination with an safety probe (10:1) 700929 or a wide temperature range type (10:1)
702902
2
300 Vrms (CAT II)
• Safety cable (1:1) (combined with 701901+701954)
4
or direct input (cable that does not
comply with the safety standards)
6
42 V (DC + ACpeak) (CAT II, 30 Vrms)
H
L
With the 700929, 701947, or 702902
1
2
700929
701947
702902
H
L
701901 701954
3
With the 701901 and 701954
H
L
Direct input (cable that does not comply
with the safety standards)
5
6
BNC
Over-Range Indication
If over-range is indicated, the instrument may be receiving a voltage higher than the observed
waveform or measured waveform values. To prevent electric shock, change the vertical scale
so that the entire amplitude of the waveform is displayed within the waveform display area,
and check the input voltage level.
Over-range indication
Indicates the number of the channel that over-range is occurring on
Channel indication when over-range is occurring on multiple channels
Indicates the smallest number among the channels that over-range is occurring on
