7. BRAIN TERMINAL BT200 OPERATION
(6) Integral Indicator Scale Setup

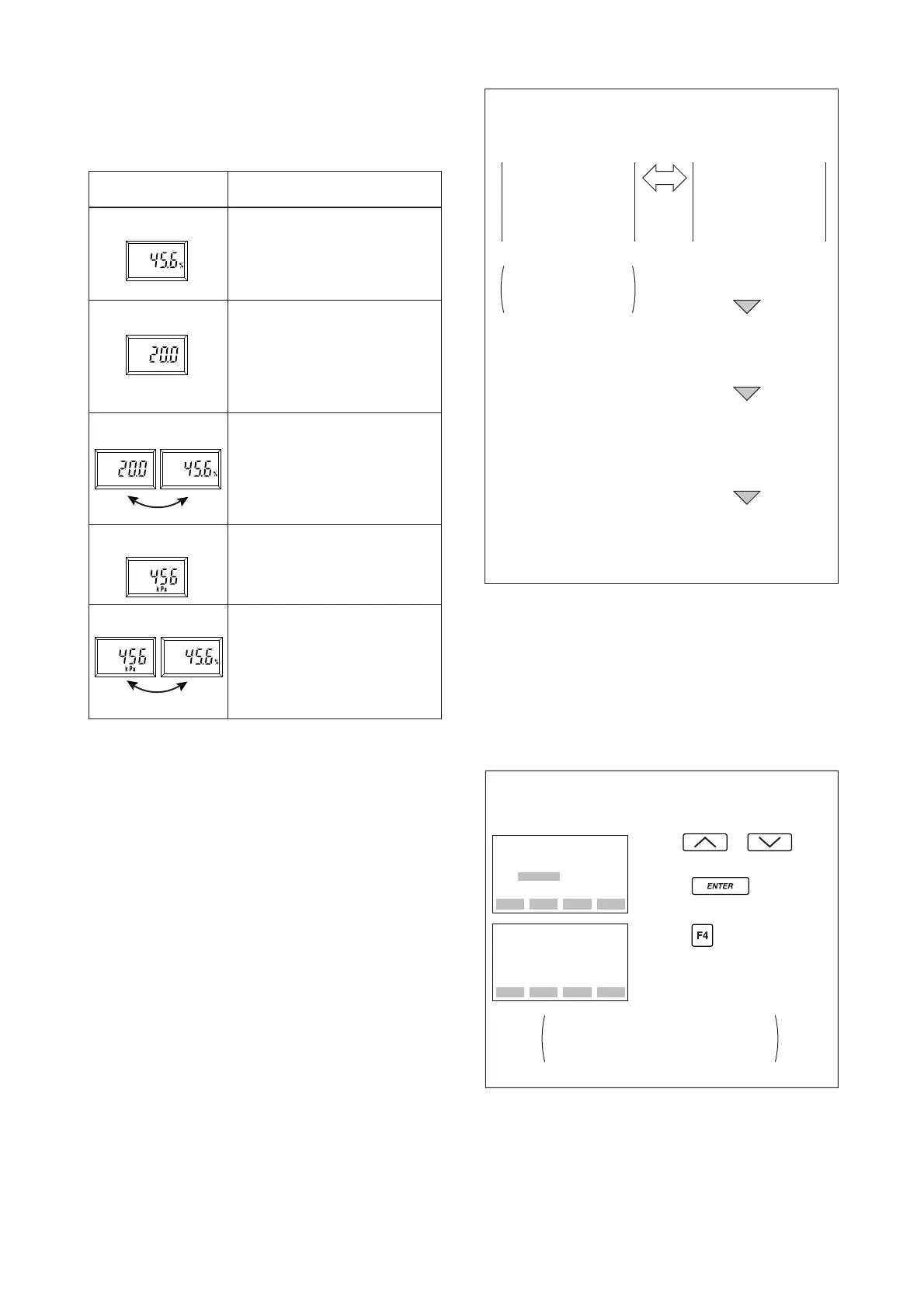

The following 5 displays are available for integral
indicators.
T0708.EPS
D20: DISP SELECT
and Display
NORMAL %
USER SET
USER & %
INP PRES
PRES & %
Indicates –5 to 110% range
depending on the Measurement
range (C21, C22).
Indicates values depending on the
Engineering range (D22, D23).
(Note 1)
Units set using Engineering unit
(D21) are not indicated.
Indicates user set and % alternately
in 3 second intervals.
Indicates input pressure. Indication
limits –19999 to 19999.
Indicates input pressure and %
alternately in 3 second intervals.
A10:OUTPUT (%)
45.6 %
Description
and Related parameters
A11:ENGR.OUTPUT
20.0 M
A10:OUTPUT (%)
45.6 %
A11:ENGR. OUTPUT
20.0 M
A40:INPUT
456 kPa
A10:OUTPUT (%)
45.6 %
A40:INPUT
456 kPa
(Note 1) Scale range can be specified with range limit specifications up
to 5 digits (excluding any decimal point) for low or high range
limits within the range of –19999 to 19999.
See (a.) through (c.) for each setting procedure.
% indication and
input pressure
indication
Transmitter is set
for “% display” when
shipped.
D20: DISP SELECT
NORMAL %
INP PRES
PRES & %
User-set engineering
unit display
D20: DISP SELECT
USER SET
USER & %
D21: DISP UNIT
D22: DISP LRV
D23: DISP HRV
Set for user-set
engineering unit display.
Set a unit to be
displayed on the BT200.
Set a numeric value for
engineering unit for 4 mA
output (LRV).
Set a numeric value for
engineering unit for 20 mA
output (HRV).
F0718.EPS
a. Display Selection (D20: DISP SELECT)
Follow the instructions given to the below to change
the range of integral indication scales.
When USER SET is selected, the user set values of
integral indication and A11: ENGR. OUTPUT
parameter are indicated.
• Example: Set the integral indicator scale to
engineering units display.
The “%” disappears from the
integral indicator display.
ESC
SET
D20:DISP SELECT
USER SET
FEED NO OK
SET
D20:DISP SELECT
NORMAL %
<NORMAL %>
<USER SET>
<USER & %>
<INP PRES>
Use the or key
to select “USER SET.”
Press the key twice to
enter the setting.
Press the (OK) key.
F0720.EPS
