3. Cabling

3-41

TI 32P01J10-01EN

Mar. 15, 2018-00

 Routing Signal Cables (for N-IO)

Field Cable Area

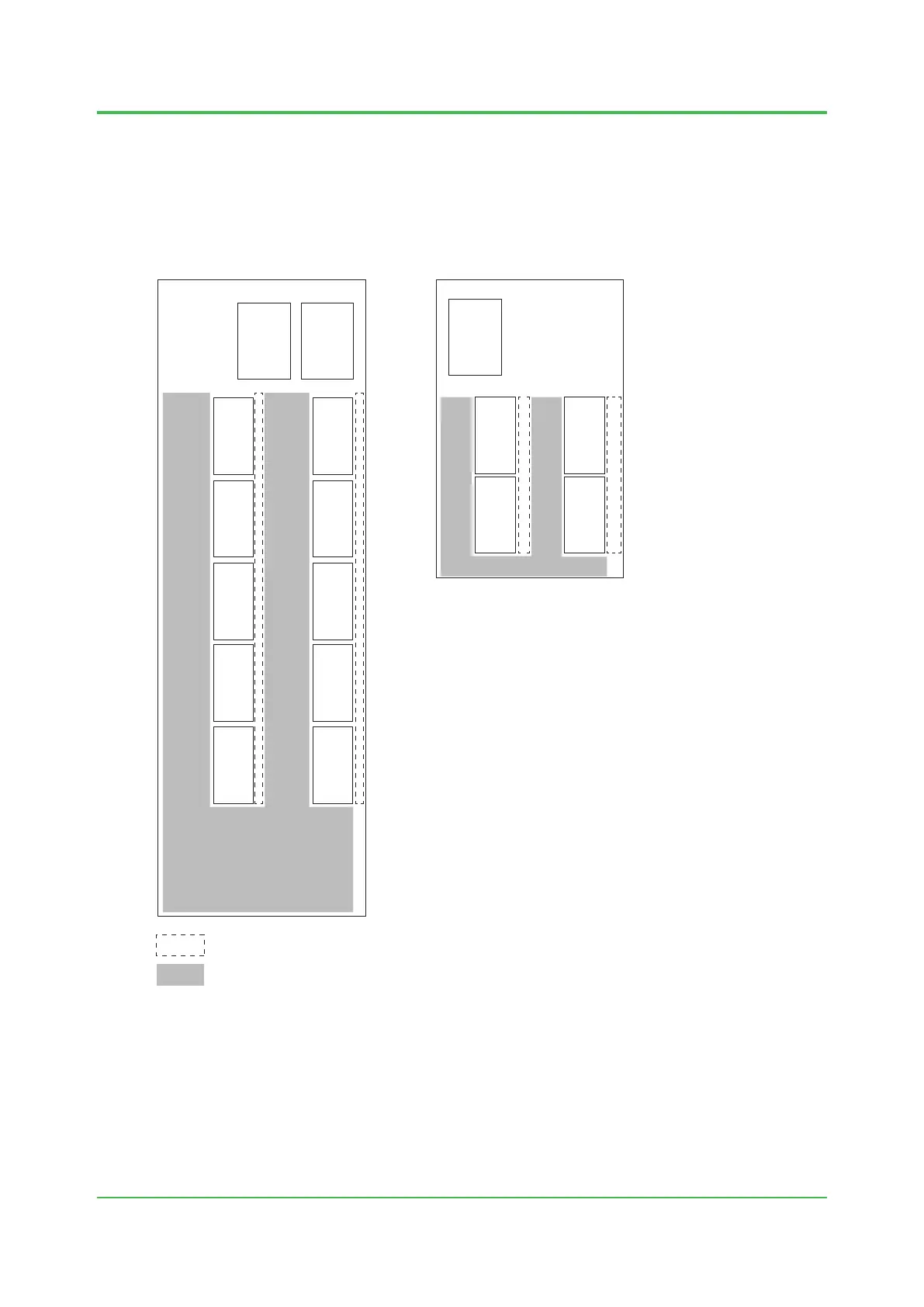

Signal cables from the eld enter the Cabinet at the bottom and connected to individual IOBP

units in the routes shown in Figure below.

Front/Rear of Cabinet

F030510.ai

Front of Junction Box

: Field cable area

: System wiring area

NIU NIU

IOBP IOBP

NIU

IOBP IOBP

NIU: Node Interface Unit

IOBP: N-IO I/O Base Plate

Figure Area for Signal Cable from Field
