2.1.3. Functional specifications (at 25°C)
Temperature element : Pt1000 to IEC 751
Nominal Cell Constant (C.C.) : 0.02 cm
-1
or 0.1 cm
-1
Note: The SC4A temperature sensor is designed for measurement compensation and for
indication. It is NOT designed for process temperature control.
2.1.4. Dynamic specifications
Response time temperature t
90
: < 1 min.
2.1.5. Operating range
Conductivity at actual process temperature : 1 µS * C.C. – 50 mS * C.C.

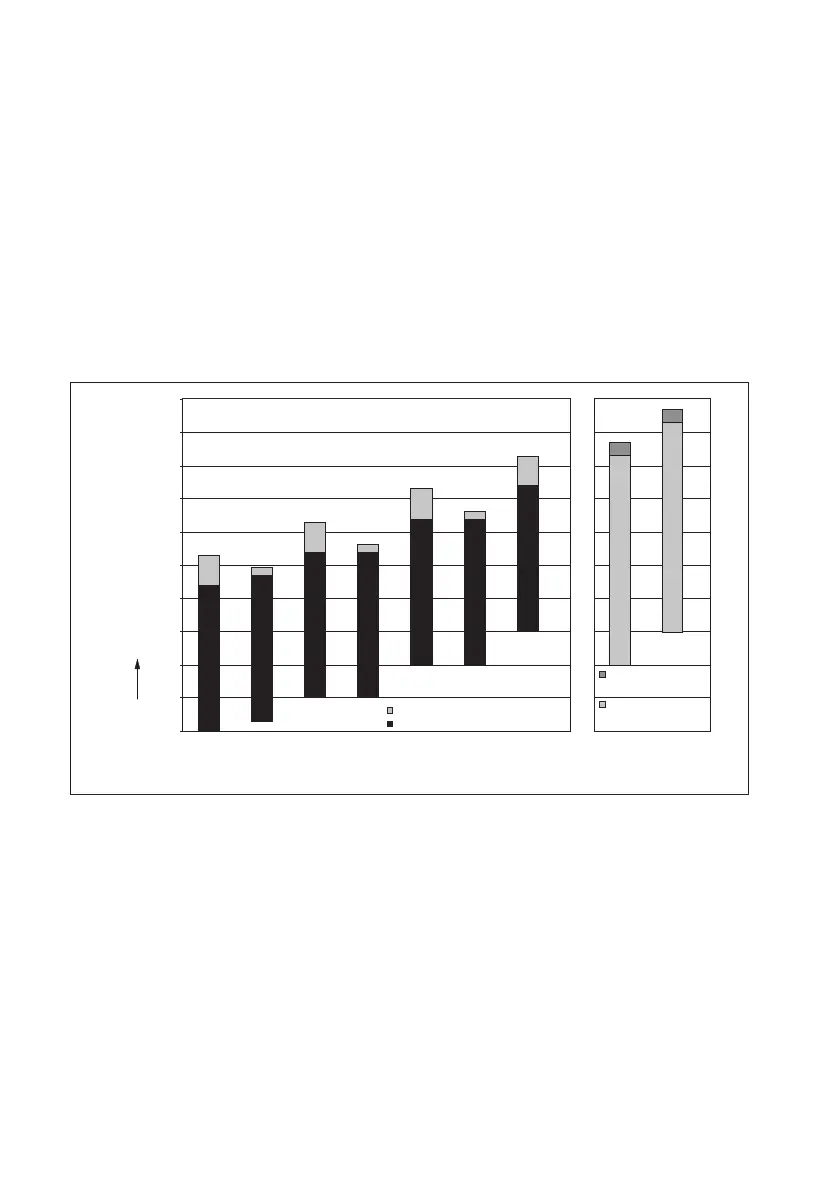

Fig. 1 Measuring range of conductivity sensors
Process temperature Stainless Steel : 0°C to 110°C (32°F to 230°F)
& Titanium type : 135°C (275°F) for a short period of time during
sterilization.
Process temperature in combination : 0°C to 80°C (32°F to 176°F)
with PVDF fitting
Process pressure Stainless Steel & Titanium type : 0 to 10 bar (0 to 142 PSIG)
Process Pressure in combination with PVDF fitting: See Fig. 2
SC42-SP34
SX42-SX34
(0.01/cm)
SC4A-002
(0.02/cm)
SC42-SP24
SX42-SX24
(0.1/cm)
SC4A-010
(0.1/cm)
SC42-EP14
(1/cm)
SC42-
EP15/EP16
(1/cm)
SC42-EP04
SC42-FP04
SC42-TP04
(10/cm)
SC450/SC202/FLXA21/ FLXA202
DC402
SC42-EP18
(1/cm)
SC42-EP08
SC42-FP08
SC42-TP04
(10/cm)
100 000 000.00
10 000 000.00
1 000 000.00
100 000.00
10 000.00
1 000.00
100.00
10.00
1.00
0.10
0.01
µS/cm
SC450/FLXA21/
FLXA202
SC202
