YOKOGAWA SC41 User Manual

IM 12D07J01-10E-E
8
2.2.2. Typical installation SC4A-E-SA (SB, SC) with standard options / spare parts
The typical installation of the SC4A-E-SA sensor is done by using a standardized 25 mm port.
Stainless Steel welding sockets are available as straight version (spare part /SA1) or 15° angled
version (spare part /SA2). Both versions are delivered with mounting nut.
In figure 5 an example is shown how to install the sensor using spare part /SA1.
Sensors SC4A-E-SB and SC4A-E-SC are installed by tri-clamp method.
For the SB version two Stainless Steel tri-clamps are available, in a 1” size
(spare part /SB1) or in a 1½“ size (spare part /SB2).
The SC version has just one Stainless Steel tri-clamp in a 2” size (spare part /SC1).
/SA1
51 (2.00")
55 (2.16")

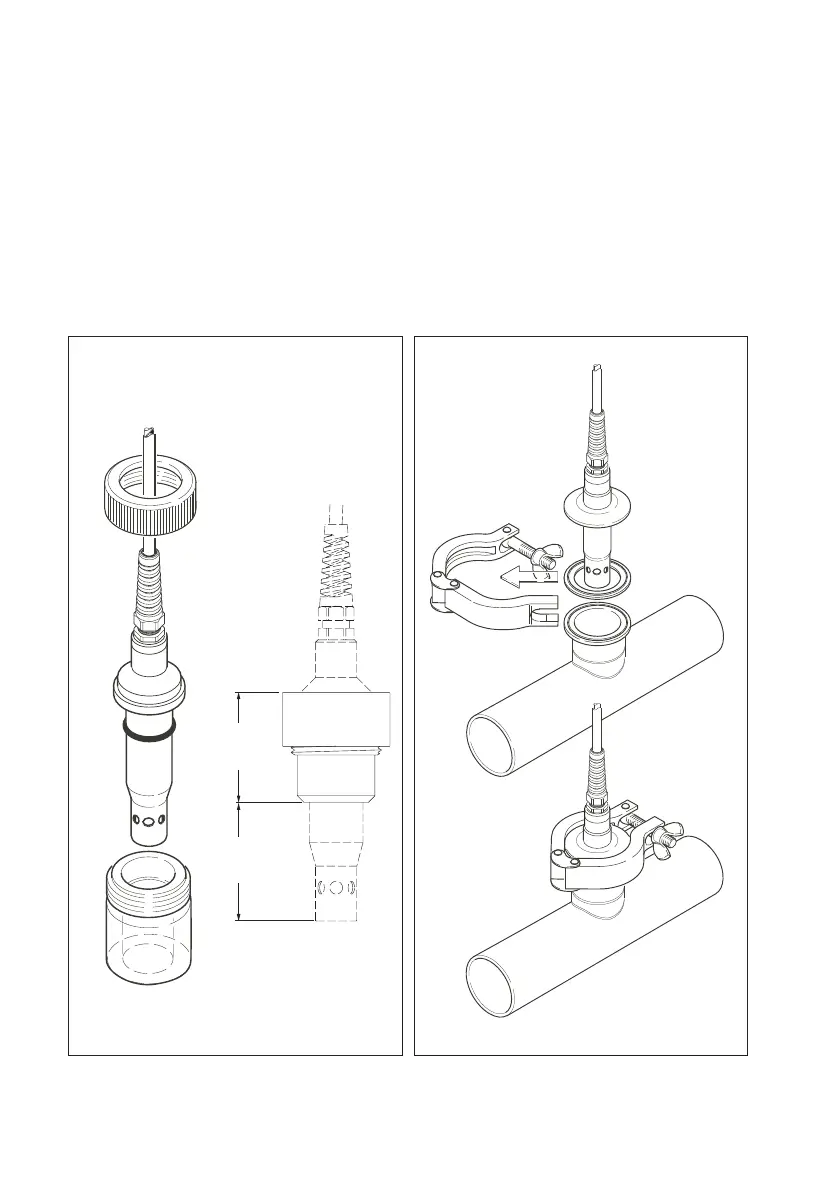

Fig 5. Mounted SC4A-E-SA sensor
with sparepart/ SA1
Fig 6 Mounted SC4A-E-SB sensor
