Cable length for
• SC4A with fixed cable or SC4A with Variopin
directly connected to Flexa analyzer : max. 60 meter with WU10/WE10
(possibly in combination with WF10 cable
and BA10 junction box}
• For suffix -VS combined with SA11 : 3 meter WE10 cable (as option) combined
with SA11 Smart Adapter
SA11 Smart Adapter : Directly connected to the analyzer using a
WU11 cable up to 100 meters
or
Connected to a BA11 connetion box
using WU11 cable upto 100 m. The BA11
connection box is connected to the analyzer
using a WU11 cable up to 100m.
2.1.6. Regulatory standards (only for SC4A with fixed cable)
- ATEX : Directive 2014/34/EU
by applying:
EN 60079-0
EN 60079-11
EN 60079-26
Certificate no. : DEKRA 14ATEX0074 X
II 1 G Ex ia IIC T4… T6 Ga

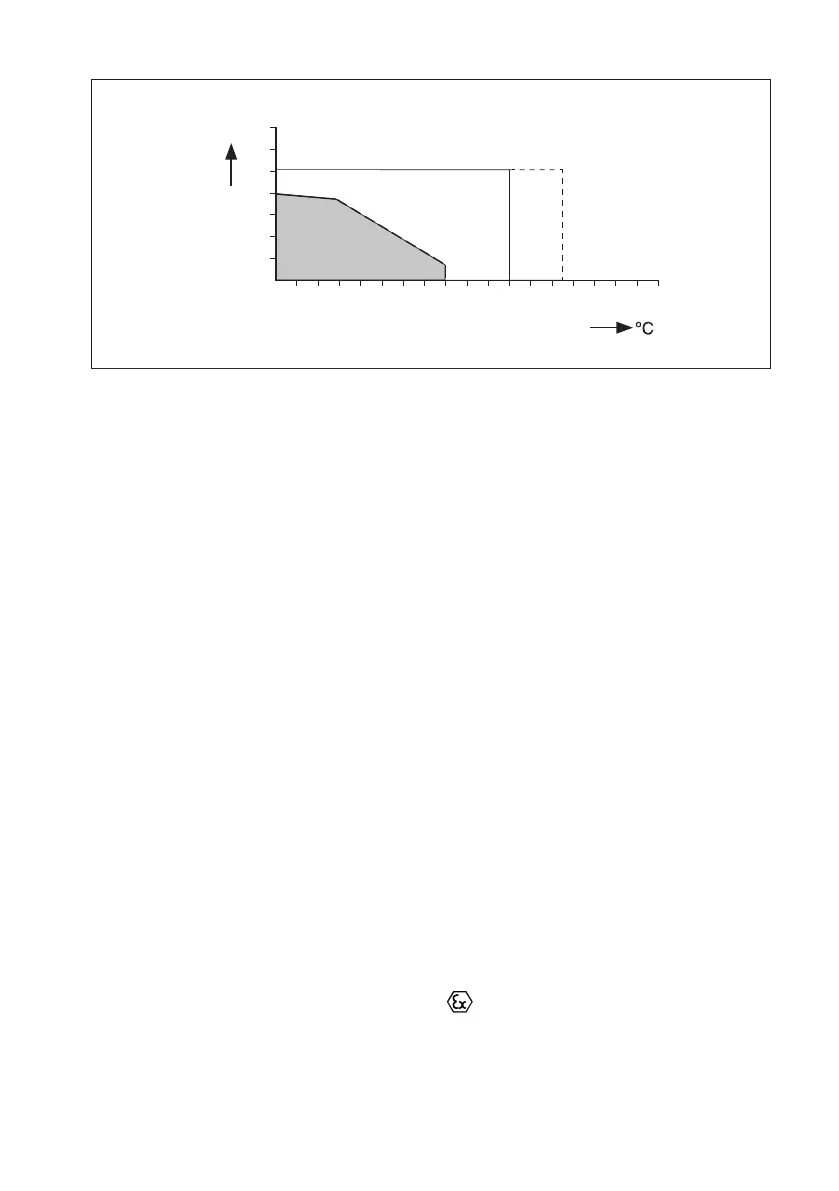

Fig. 2 Pressure vs temperature
0 10 20 30 40 50 60 70 80 100 120 140 160
bar
2
4
6
8
10
12
SS / Ti
PVDF
