3.4. Wiring SC41/SC42/SC49 sensors
The SC41, SC42 and SC49 sensors are provided with a fixed connector. The standard cable
used to connect the sensor with Amphenol connector to the analyser is the WU40. The standard
cable used to connect the sensor with VP connector to the analyzer is the WU10. These cables
are available up to 25/20 meters. When a longer cable run is necessary (maximum cable run
is 60 meters), this can be done by using the WF10 extension cable in combination with the
BA10 connection box. The connection of the WU40 cable, WU10 cable and WF10 cable to the
Yokogawa Contact Conductivity analyser are given in table 4.
11
12
13
15
16
14
CELL
temp.
element

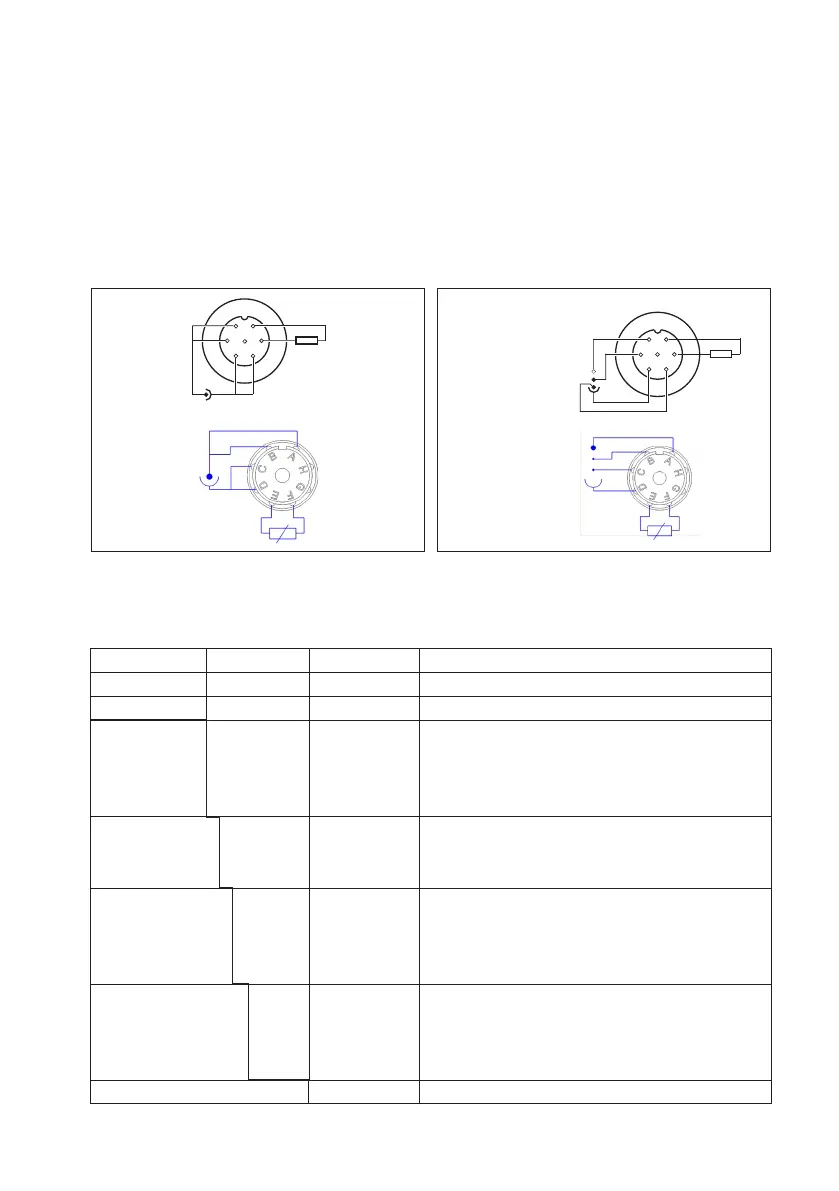

Fig. 27 Top view connector system SC41/
SC42 2-electrode
Fig. 28 Top view connector system SC42/
SC49 4-electrode
11
12
13
15
16
14
temp.
element
CELL
3.5 Modelcode SC41/SC42/SC49
Model Suffix Code Option code Description
SC41 (SC49) Conductivity Sensor 2- or 4- electrodes + Ni100
SC42 Conductivity Sensor 2- or 4- electrodes + Pt1000
Materials -E Epoxy / graphite
-S Stainless steel AISI 316L / PEEK
-F PVDF / Glass / Platinum
-T PTFE / Glass / Platinum
Mounting P Plug-in type, plug-socket connector
V
1)
Plug-in type, VarioPin connector with SENCOM
ID-chip 1)
Cell constant 0 Cell constant
1 C = 1 cm-1
2 C = 0,1 cm-1
3 C = 0,01 cm-1
Type 4 2-electrode, flow cell
5 2-electrode, insertion cell
6 2-electrode, insertion cell with DN25 collar
8 4-electrode, flow cell
Options N/A
Note: Suffix V not ATEX/IECEx certified. Suffix V not in combination with suffix -E (Epoxy).
Fig. 26 SC4 -EP14 (EP18),
SC4 -EP04 (EP08)
Amphenol
connector
Variopin
connector
Amphenol
connector
Variopin
connector
