4.1.6. Shipping details
Package size (LxWxH) Threaded models : 300 x 95 x 73 mm (11.8 x 3.7 x 2.9 inch)
Flanged models : 480 x 275 x 235 mm (18.9 x 10.8 x 9.3 inch)
Package weight Threaded models : 0.5 to 0.7 kg (1.1 to 1.5 lbs)
Flanged models : 5.7 to 6.0 kg (12.6 to 13.2 lbs)
4.1.7. Environmental conditions
Storage temperature : -30°C to 50°C (-22°F to 122°F)
4.2. Installation of SX42 sensors
SX42 threaded models are installed by screw-in (ISO 7/1-R 1” or 1” NPT), and the SX42 flanged
models by using the pre-mounted flange (DN50 PN63, DN50 PN40 or ANSI 2” 600 lbs).
Flange dimensions of DN50 PN40 (in red) to be included

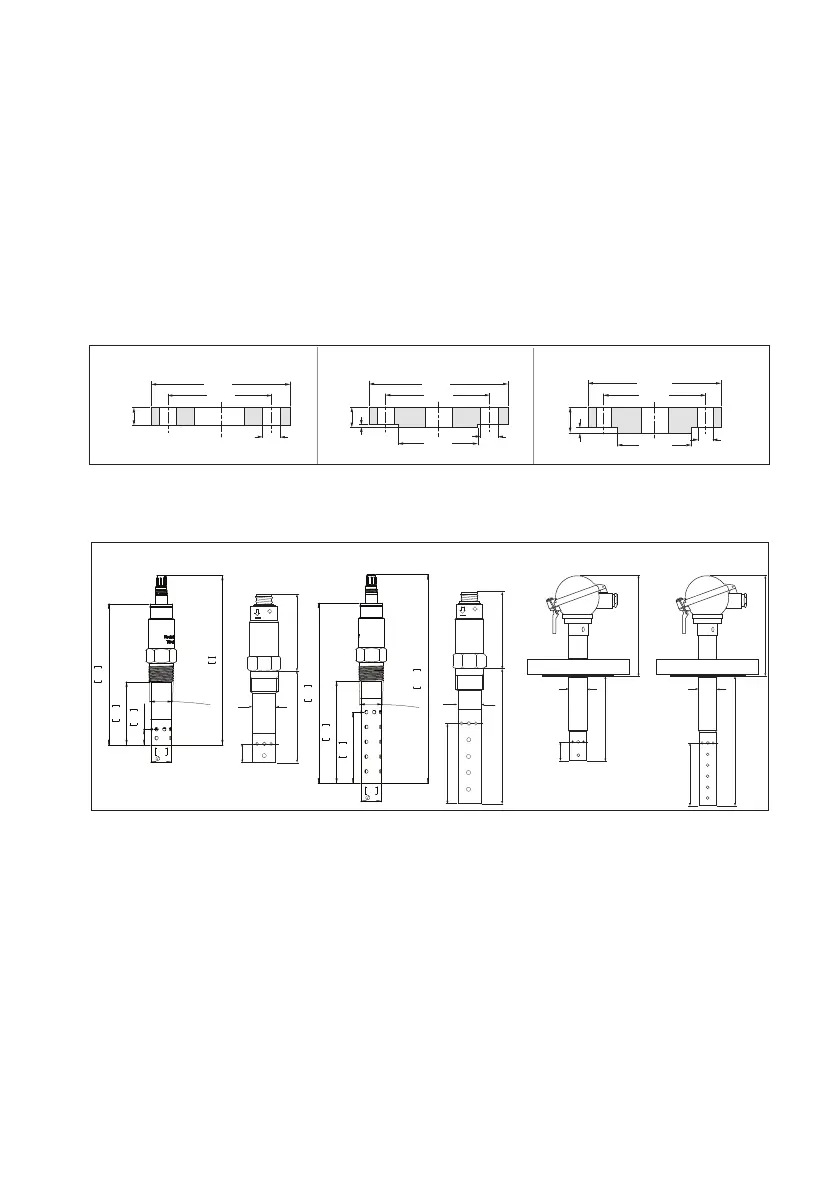

Fig. 30 Flange dimensions SX42 flanged model according EN 1092-1
4.3. Dimensions SX42 sensors
Fig. 31 Dimensions SX42 threaded models and flanged models
4.4. Wiring SX42 sensors
The SX42 threaded models are provided with a fixed connector. The standard cable used to
connect the sensors with Amphenol connector to the analyser is the WU40. The standard cable
used to connect the sensor with VP connector to the analyzer is the WU10/WE10. These cables
are available up to 25/20 meters. When a longer cable run is necessary (maximum cable run
is 60 meters), this can be done by using the WF10 extension cable in combination with the
BA10 connection box. The connection of the WU40 cable, WU10 cable and WF10 cable to the
Yokogawa Contact Conductivity analyser are given in table 5.
The sensors with VP connector contain an embedded ID chip allowing direct connection to
our SA11 Smart Adapter. The SA11 Smart Adapter can be applied in processes with ambient
temperature upto 125°C.
If ambient temperature is higher than 125°C the connection to Smart Adapter should be made
using the WE10 extension cable in between the Smart Adapter and the sensor.
SX42-SX24-BS
SX42-SX24-NS
SX42-SX24-DF
SX42-SX24-AF
SX42-SX34-DF
SX42-SX34-AF
SX42-SX34-BS
SX42-SX34-NS
225 (10.04)
ø 28 (1.10)
ø 28 (1.10)
91 (3.58) 110 (4.33)
98 (3.86)
164 (6.42) 91 (3.58)
150 (5.90)
35 (1.38)
ø 34
(1.34)
23 (0.90)
169 (6.65)
110 (4.33)
169 (6.65)
ø 34
(1.34)
3.78
96 *
0.83
21 *
282
1.1
243
9.57
138
5.43
28
11.09
T
h
r
e
a
d
t
yp
e
7.48
190
28
1.1
229
3.35
85
9
T
h
r
e
a
d
t
yp
e
SX42-SX34-BV
SX42-SX34-NV
SX42-SX34-BV
SX42-SX34-NV
ø 135 (5.3)
ø 180 (7.1)
ø 102 (4.0)
ø 22 (0.87)
4X
26
(1.02)
3 (0.12)
ø 127 (5.0)
ø 165 (6.5)
ø 91.9 (3.62)
ø 19.1 (0.75)
8X
31.8
(1.25)
6.4 (0.25)
DN50 PN63
ANSI 2”600LBS
ø 125 (4.92)
ø 165 (6.5)
ø 18 (0.71)
4X
20
(0.79)
DN50 PN40
