IM 12D07J01-10E-E
7
2.1.7. Shipping details
Package size (LxWxH) : 220 x 220 x 90 mm (8.7 x 8.7 x 3.6 inch)
Package weight : 0.5 to 1.7 kg (1.1 to 3.8 lbs), depends on sensor type
and cable length
2.1.8. Environmental conditions
Storage temperature : -30°C to 50°C (-22°F to 122°F)
2.1.9. Mechanical specifications
Surface roughness SC4A-*-AD : 0.8 µm
SC4A-E-SA (SB, SC) : 0.5 µm
SC4A-*-PR : 0.8 µm
2.2. Installation of SC4A sensors
For optimum measurement results, the SC4A sensor should be installed in a location that
offers an acceptable representation of the process composition and DOES NOT exceed the
specifications of the sensor.
2.2.1. Typical installation SC4A-*-AD with standard options
The SC4A-*-AD sensor can be installed in the process using optional ¾” NPT adapters. These
adapters are available in Stainless Steel (/PS) and in PVDF (/PF); see figure 3 for the mounting
sequence. The sensor can also be installed in an optional Stainless Steel flow fitting (/FF) using
option /PS, see figure 4 for details.
3/4 “NPT

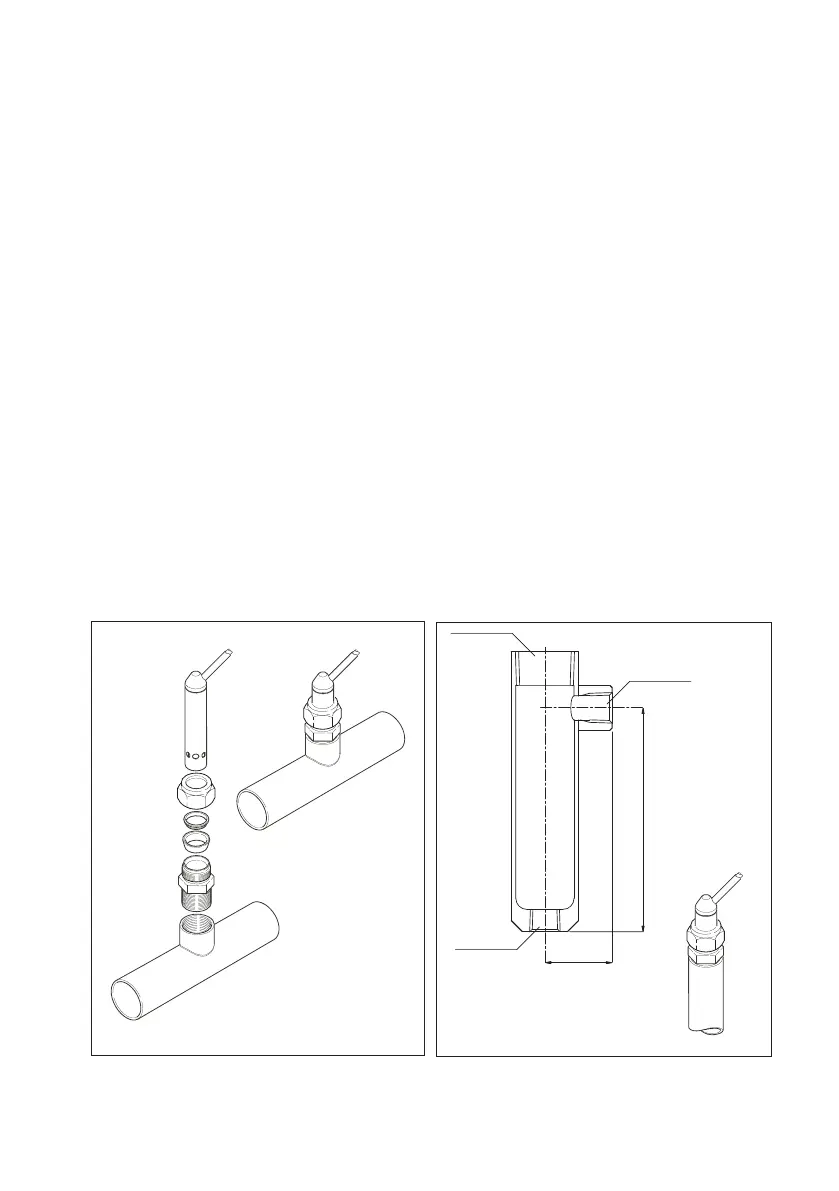

Fig. 3 Mounted sensor
with the option /PF and /PS
Fig. 4 Dimensional drawing /FF
with the option /PS
1/4 “NPT
1/4 “NPT
30(1.18”)
100 (3.94”)
