YOKOGAWA SC41 User Manual

IM 12D07J01-10E-E
18
Sensor cable
Plug-in
sensor
Sensor cable
Plug-in
sensor
M8 thread

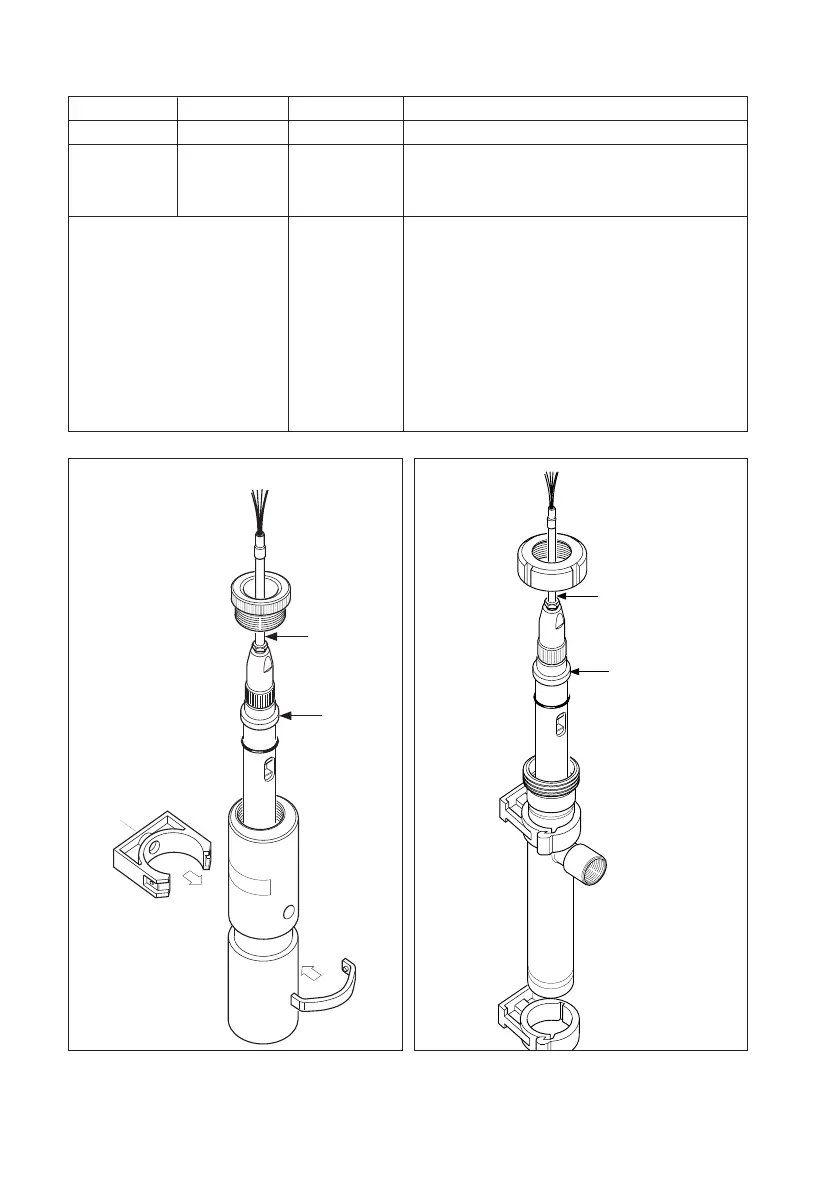

Fig. 13 Installation SC41/SC42/SC49
in FF40-P22/FF40-V22 *)
Fig. 14 Installation SC41/SC42/SC49
in FF40-S22 *)
Modelcode FF40 Flowfitting:
Model code Suffix code Option code Description
FF40 Flow fitting
Material - P22 Polypropylene (PP)
- S22 Stainless steel (AISI 316)
- V22 Polyvinylchloride (PVC)
Optional Flange adapters /FP1 DN15 PN10 PP
(NPT ½” Male lap joint) /FP2 DN25 PN10 PP
/FP3 ½” ANSI 150 lbs PP
/FP4 1” ANSI 150 lbs PP
/FS1 DN15 PN10 SS AISI 316
/FS2 DN25 PN10 SS AISI 316
/FS3 ½” ANSI 150 lbs SS AISI 316
/FS4 1” ANSI 150 lbs AISI 316
Material Certificate /M 3.1 according to EN-10024 on wetted parts
Note: Not possible for sensors with suffix code -EP16
