Yongnuo YN560-TX PRO User Manual

※The protective flim
can be torn out.
LCD panel
Function button 1
AF-assist beam
emitter button
Select/Set button
Select dial
Dust- and water-
resistant adapter
Mounting foot
lock lever
Lock-release
button
ON：Power on
LOCK： Button/dial lock
(Power on)
OFF： Power off
Flash exposure
confirmation lamp
Batter y compartment
cover
Radio transmission
status lamp
Terminal cover
Mounting foot
Locking pin
Contacts
USB upgrade
(Micro USB)/Remote
release terminal
terminal
AF assist lamp
:Test flash
button
Function button 2
Function button4
Function button3
Flash mode button
2

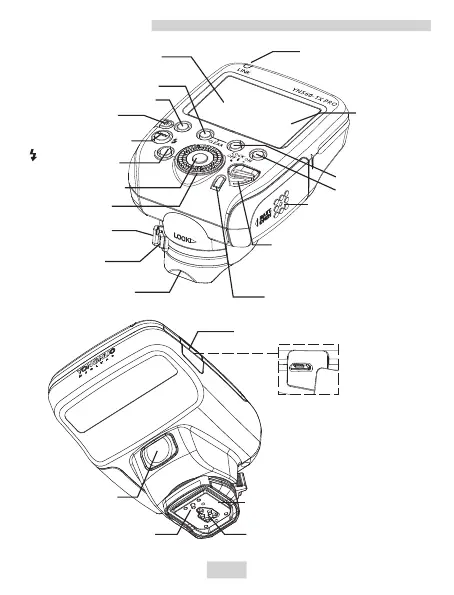

Nomenclature

Yongnuo YN560-TX PRO Specifications

Power

power source	2 AA/LR6 alkaline batteries
transmission distance	100 m
manual flash power	1/1 - 1/128 (1/3-stop increments)

Weight and Dimensions

dimensions	67.7 x 66.7 x 81.3 mm
weight	110 g
