SECTION 2 – OPTIVIEW CONTROL CENTER
This screen allows the user to see an on-screen printout
of all the system parameters at the time of the selected
shutdown. Not all screens are shown above. The num-
ber of screens required to display all of the data varies
according to type of motor starter and options applied.
DISPLAY ONLY
History Printout
This is the on-screen printout of the system parameters.
PROGRAMMABLE
Page Up
Access Level Required: VIEW
Scroll up in the displayed data (if applicable).
Page Down
Access Level Required: VIEW
Scroll down in the displayed data (if applicable).
Print History
Access Level Required: VIEW
This generates a report listing the status of the chiller
parameters at the time of the selected shutdown.
NAVIGATION
Home
Access Level Required: VIEW
Causes an instant return to the Home Screen.
History
Access Level Required: VIEW
Causes a return to the History Screen.
HISTORY DETAILS SCREEN

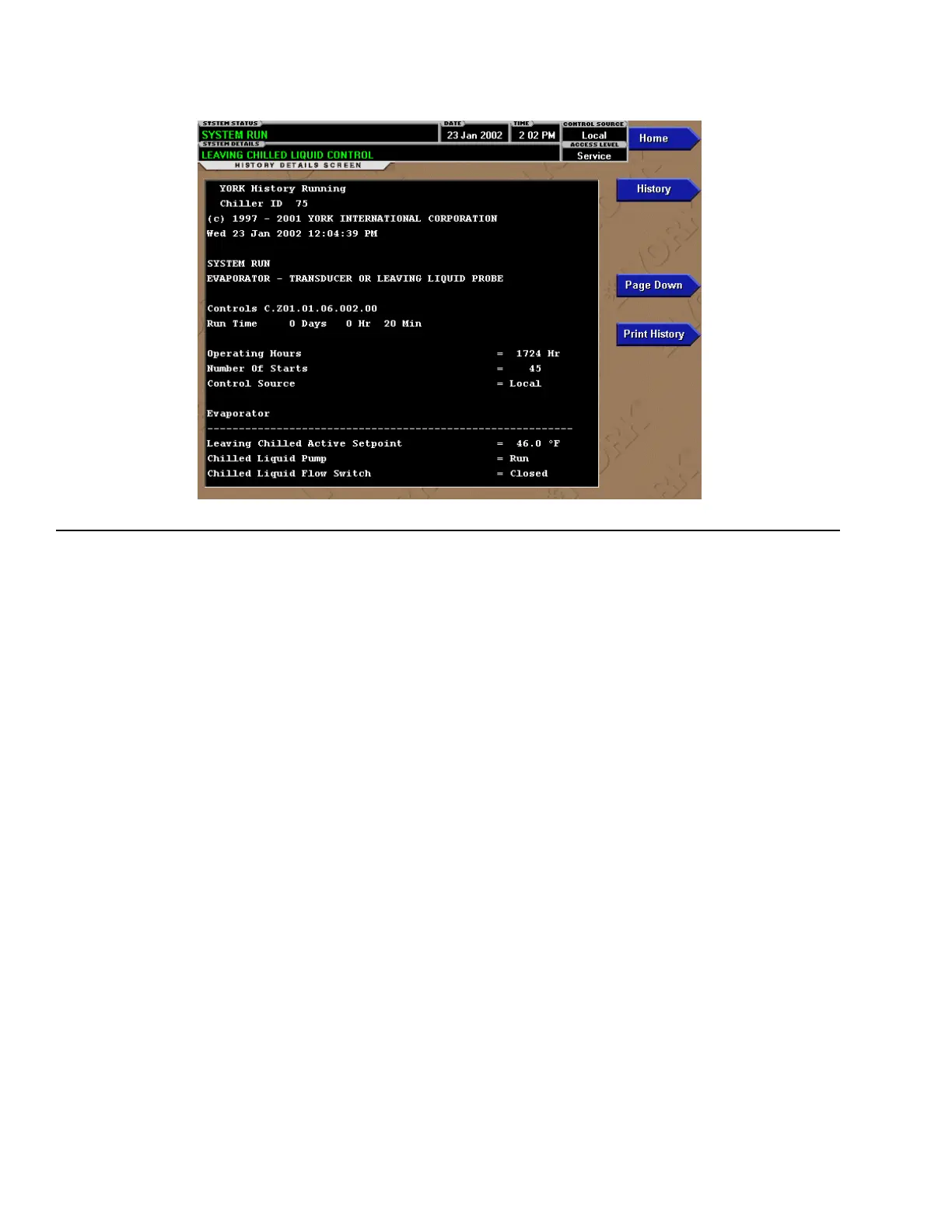

FIGURE 43 - HISTORY DETAILS PAGE
00660VIPC
