SECTION 2 – OPTIVIEW CONTROL CENTER
FORM 160.79-O3
ISSUE DATE: 11/09/2018
2
This screen displays the slot numbers of the commonly
monitored parameters. The slot numbers for the re-
mainder of the available parameters are listed on the
Master Slot Numbers List that follows.
From these lists, select up to six parameters to be trend-
ed. Return to the Trend Setup Screen and enter the pa-
rameters Slot Numbers into Data Points 1 through 6.
Requires a login access level of OPERA-
TOR or higher.
DISPLAY ONLY
Slot Numbers
These are the slot numbers of the most commonly used
parameters.
PROGRAMMABLE
Page Down
Access Level Required: OPERATOR
Scroll down in the displayed data.
Page Up
Access Level Required: OPERATOR
Scroll up in the displayed data.
Print
Access Level Required: OPERATOR
Generates a list of the slot numbers of the available
parameters.
NAVIGATION
Home
Causes an instant return to the Home Screen.
Trend Setup
Causes a return to the Trend Setup Screen.

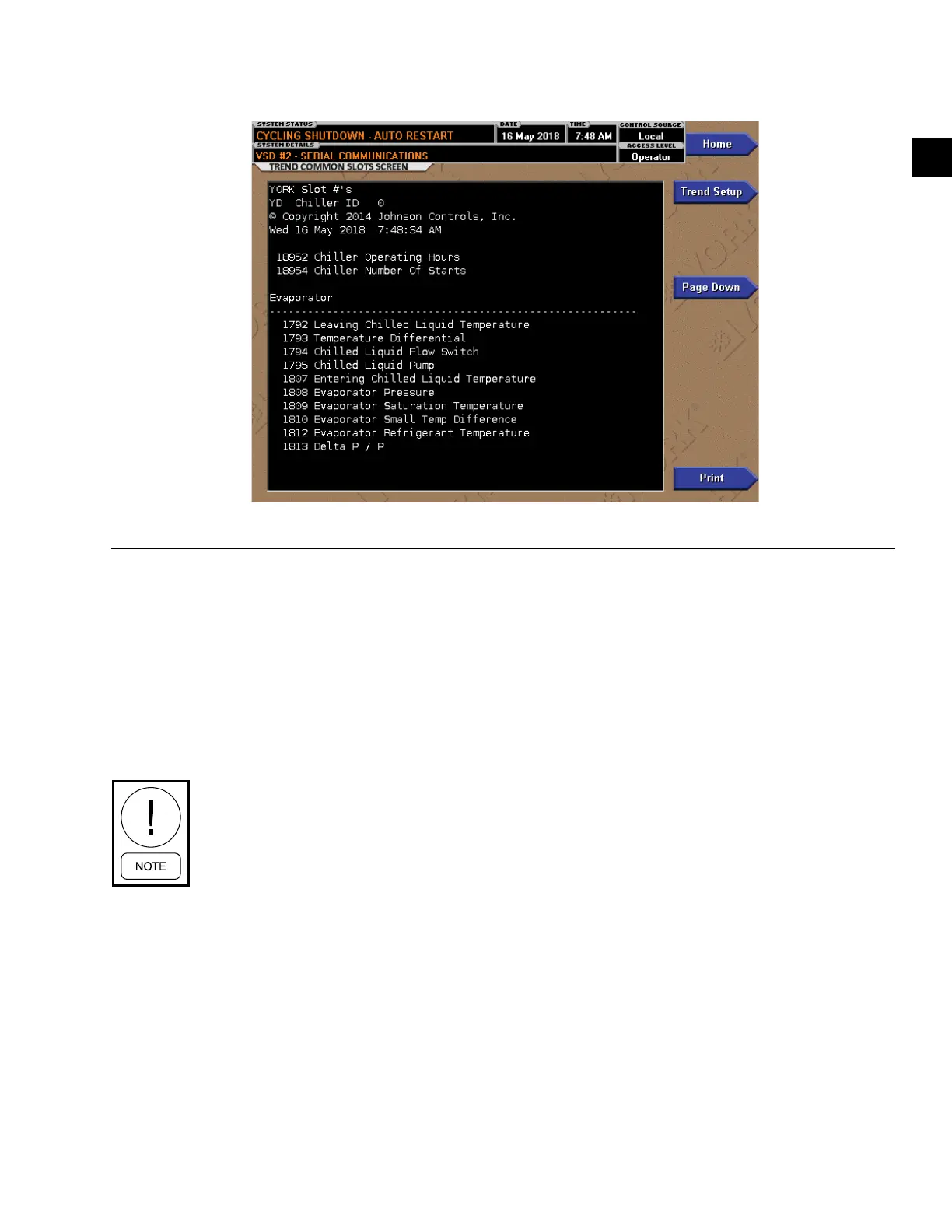

COMMON SLOTS SCREEN
LD27885
FIGURE 51 - COMMON SLOTS SCREEN
