SECTION 2 - PRODUCT DESCRIPTION
FORM 102.20-N1
ISSUE DATE: 7/06/2016
2

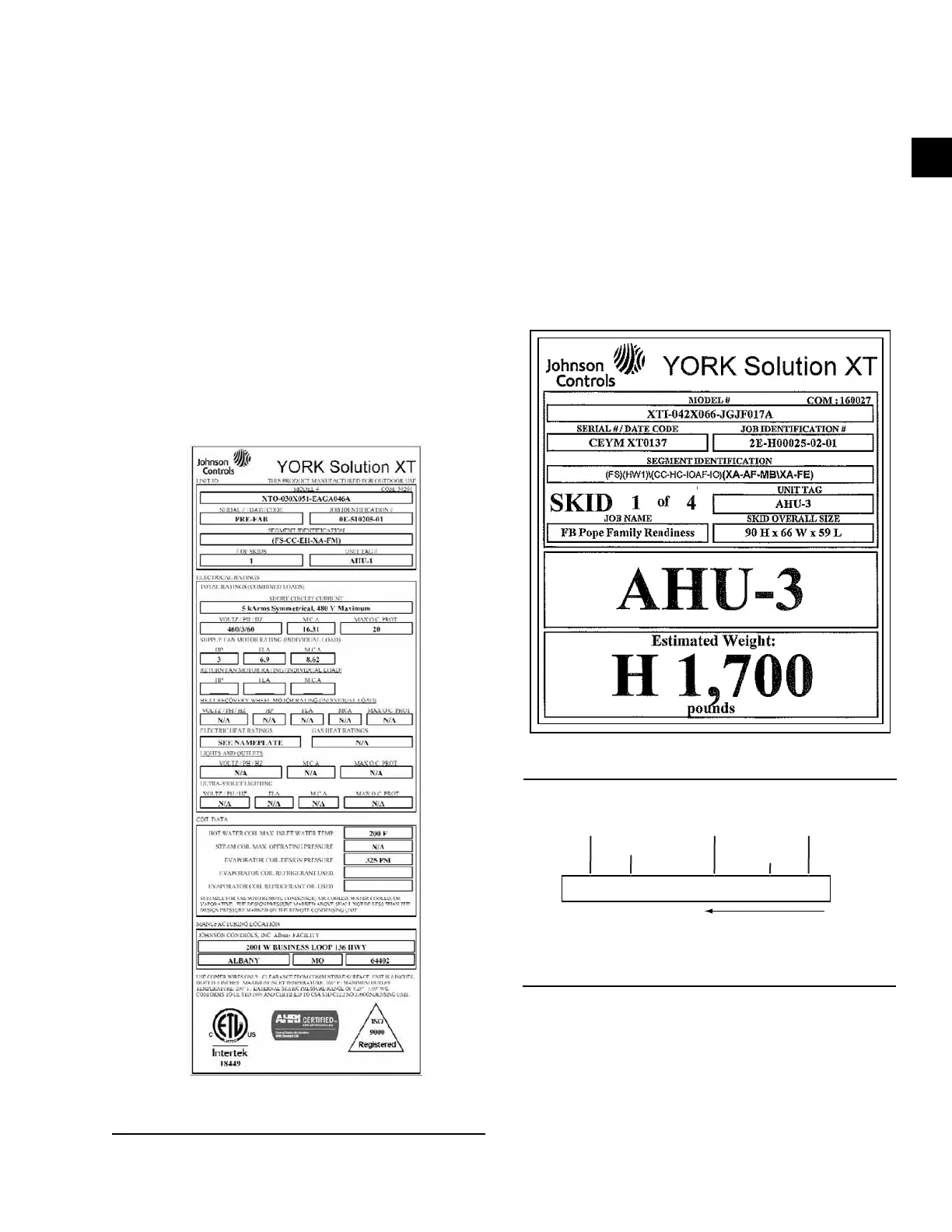

AHU ID Label
The AHU ID label contains the following information
as shown in Figure 3 on page 17:
• Model Number
• Serial Number/Date Code
• Job ID Number
• Segment ID Number
• Number of Skids
• AHU Tag Number
• Electrical Ratings
• Coil Data
• Manufacturing Location
FIGURE 3 - AHU ID LABEL
AHU_ID
Skid ID Label
Each skid in a multi-piece AHU is marked with a skid
ID label, which indicates its order of assembly in the
direction of airflow as shown in Figure 4 on page 17.
Segment ID Box
The segment ID box indicates the skids and segments
used on a multi-piece AHU. The contents of each skid
are indicated by the segment(s) surrounded by paren-
theses as shown in Figure 5 on page 17. Refer to
Table 1 on page 18 for the segment definitions.
LD11729a
FIGURE 4 - SKID ID LABEL
(Skid 4 of 5)
(Skid 3 of 5)
(Skid 2 of 5)
(Skid 1 of 5)
Direction of
Order of Assembly
FIGURE 5 - EXAMPLE OF SEGMENT ID BOX
LD11752a
(Skid 5 of 5)
(FS)(CC-HM)(XA-IC-XA-RF)(EE) (FR)
