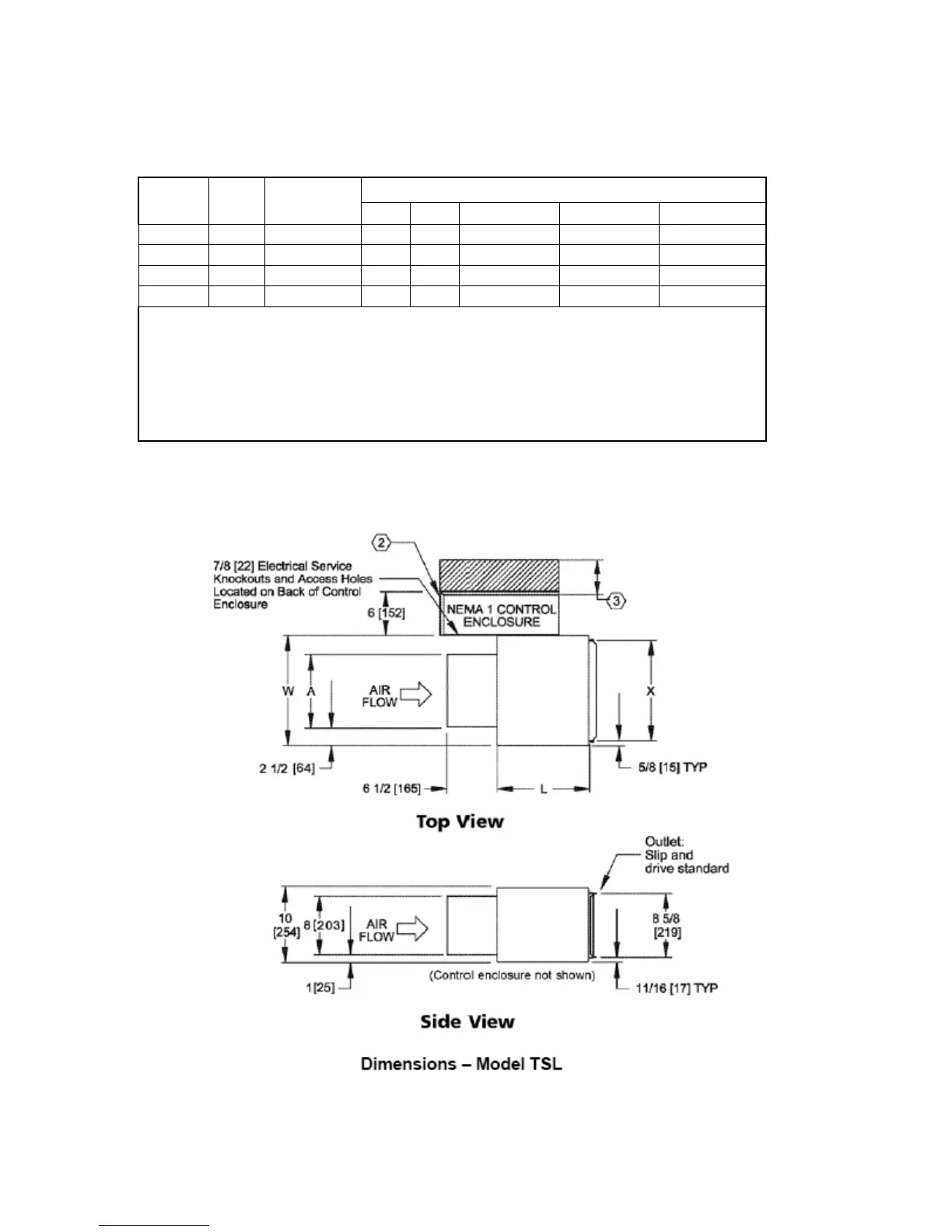

Single Duct Variable Air Volume Terminal - Rectangular (Model TSL)
Dimensions
Unit
Size CFM
Bypass
CFM
A W L X Weight
10 600 1200 10” 15” 12 1/2” 13 3/4” 26
12 800 1600 14” 19” 12 1/2” 17 3/4” 28
14 1200 2200 20” 25” 16 1/2” 23 3/4” 39
16 1500 3000 26” 31” 16 1/2” 29 3/4” 45
Notes: 1. For dimensional data for unit sizes 6 and 8, refer to the Single Duct Variable
Air Volume Terminal (Model TSS). All dimensions are in inches with a tolerance of +1/8”.
Weights are in pounds. Weights are for the basic unit with the indicated option and
control enclosure. Actual weight varies based on project-specific requirements for unit
options, appurtenances, and controls. 2. Control enclosure is standard with factory-
mounted electronic controls. 3. Check all national and local codes for required
clearances.
