6.1.2 Call Statistics

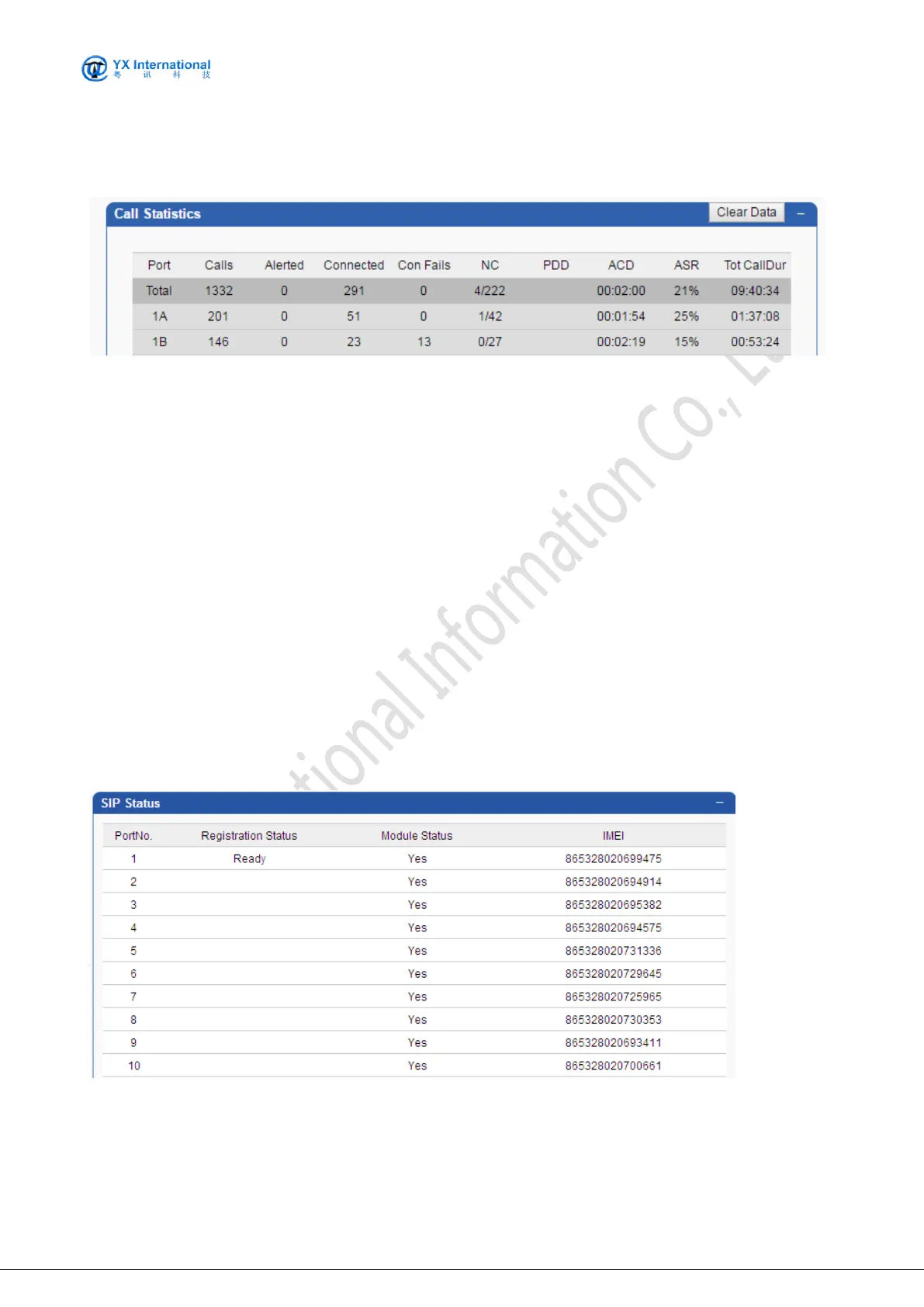

The screenshot below shows the call statistics information for analysis.
The status columns are specified as following:
 Port : Shows the status of each SIM card slot.
 Calls: Specify the total calls made out from this port since the last start up of system.
 Alerted: Specify the total number of responded alerting message for all the calls made.
 Connected: Specify the total number of answer from destination for all the calls made.
 Consecutive Fails: Specify the consecutive fail calls.
 No Carriers(NC): The carrier did not respond to the outgoing statistics
 PDD: Specify the average duration to receive the response of alerting message.
 ACD ASR : Display ACD and ASR for each SIM card slot
 Tot CallDur: The port total calls duration used out from this port since the last start up of
system.
 Clear Data: Clear all data, restart statistics.
A total summary is displayed at the bottom of the table.
6.2 Device Status
The screenshot below shows the SIP and Module status.
The status columns are specified as following:
 Port No: The physical port sequence from 1 to 4/8/16/32/64.
 Registration Status: Shows the port registration to SIP server infomation status.
