Page 31

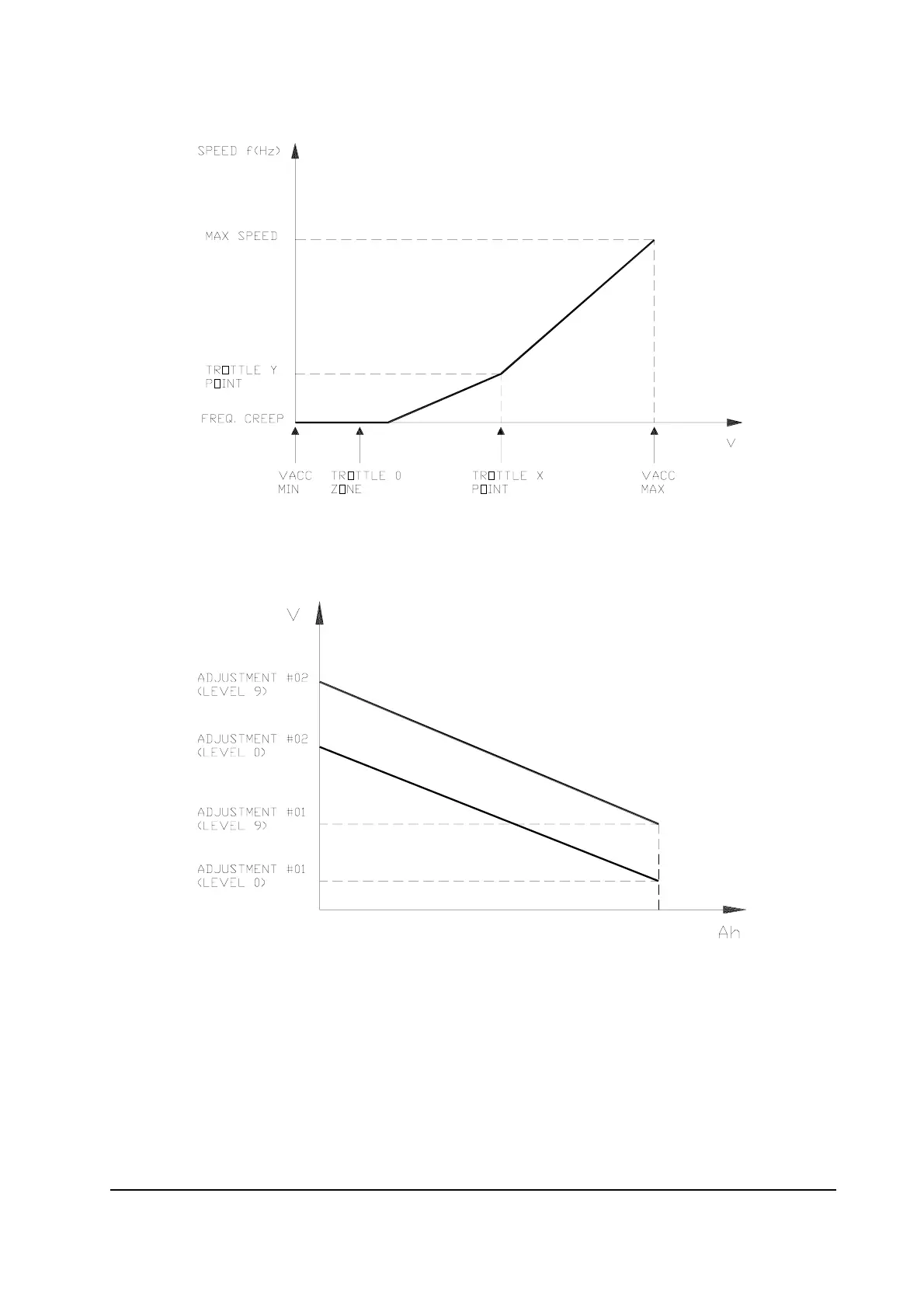

11 THROTTLE Y POINT: These parameter change the characteristic of the accelerator
input curve.
VACC MIN and VACC MAX are values programmable by the "Program Vacc" function.
10ADJUSTMENT #01: adjust the upper level of the battery discharge table.
11ADJUSTMENT #02: adjust the lower level of the battery discharge table.
12 CHECK UP DONE: for an explanation of this point see the MDI instrument
handbook.
13 CHECK UP TYPE: for an explanation of this point see the MDI instrument
handbook.
