11.5 Description of the battery charge detection setting
The Battery Charge detection uses two setting that specify the Full Charge Voltage
Level (100%) and the Discharge Voltage Level (10%). These two settings are the
Bat.Max.Adj and the Bat.Min.Adj. It is possible to adapt the Battery Charge
Detection to your specific battery, by changing the above two settings (e.g. if the
Battery Discharged Detection occurs when the battery is not totally discharged, it is

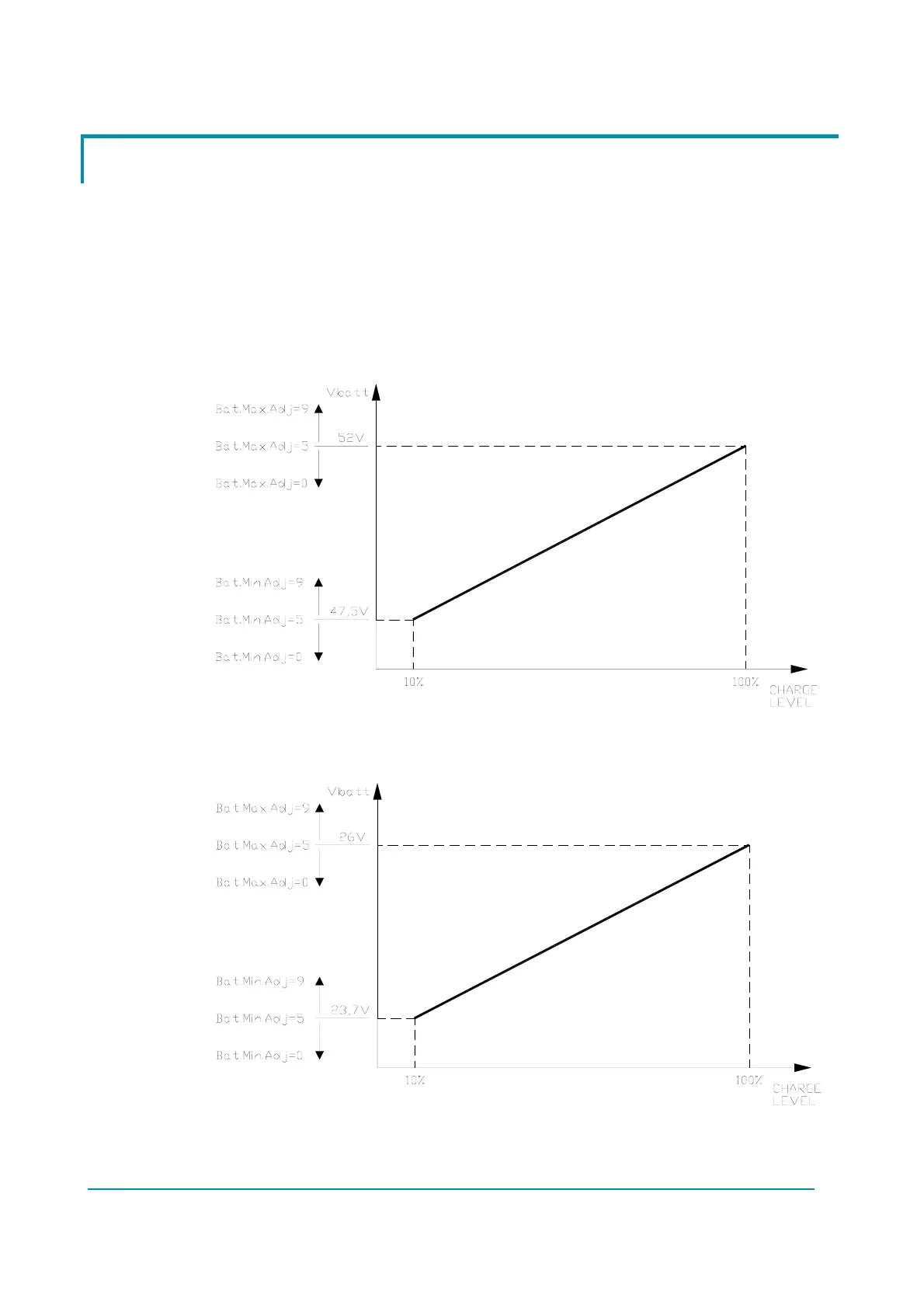

necessary to reduce the Bat.Min.Adj setting as indicated in the figure below).
48V NOMINAL BATTERY VOLTAGE
24V NOMINAL BATTERY VOLTAGE
