Page 45
6 MAX STEER LEFT: this is the function to record in the controller EEPROM the
steering poti output voltage when the wheels are fully turned left
(minimum of the steering poti range).
7 SET STEER 0 POS: this is the function to record in the controller EEPROM the
steering poti output voltage when the wheels are straight.
8 SET STEER RIGHT: this parameter sets the max steering angle in right direction.
9 SET STEER LEFT: this parameter sets the max steering angle in left direction.

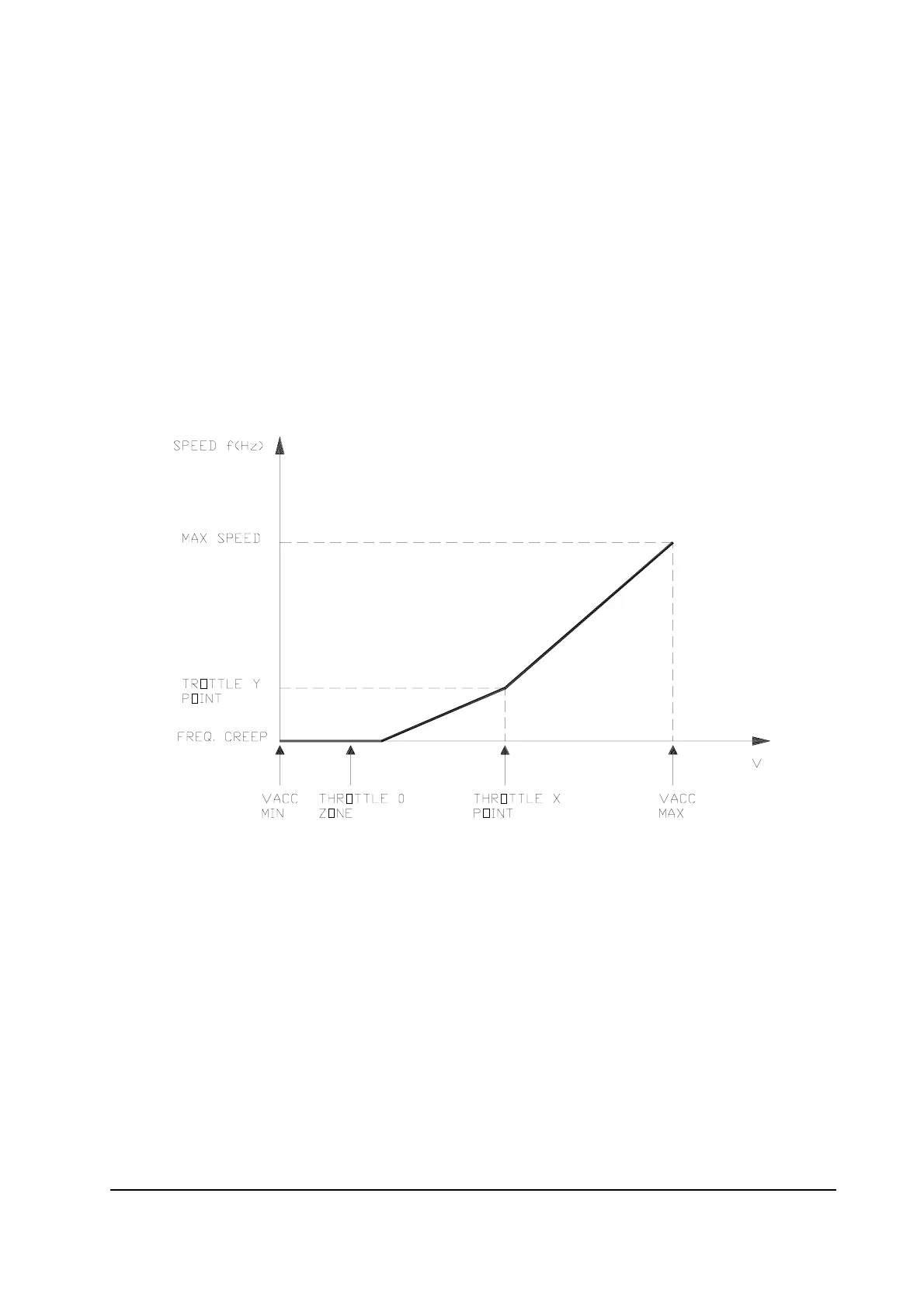

10 THROTTLE 0 ZONE: establishes a deadband in the accelerator input curve (see
also curve below).
11 THROTTLE X POINT:these parameter change the characteristic of the accelerator
input curve.
12 THROTTLE Y POINT: these parameter change the characteristic of the acceleratorin-
put curve.
VACC MIN and VACC MAX are values programmable by the "Program Vacc" function.
13 ADJUSTMENT #01: adjust the upper level of the battery discharge table.
