Zapi DUALAC2 - Dualac2 and Dualac2 Power - Slave

Page 46

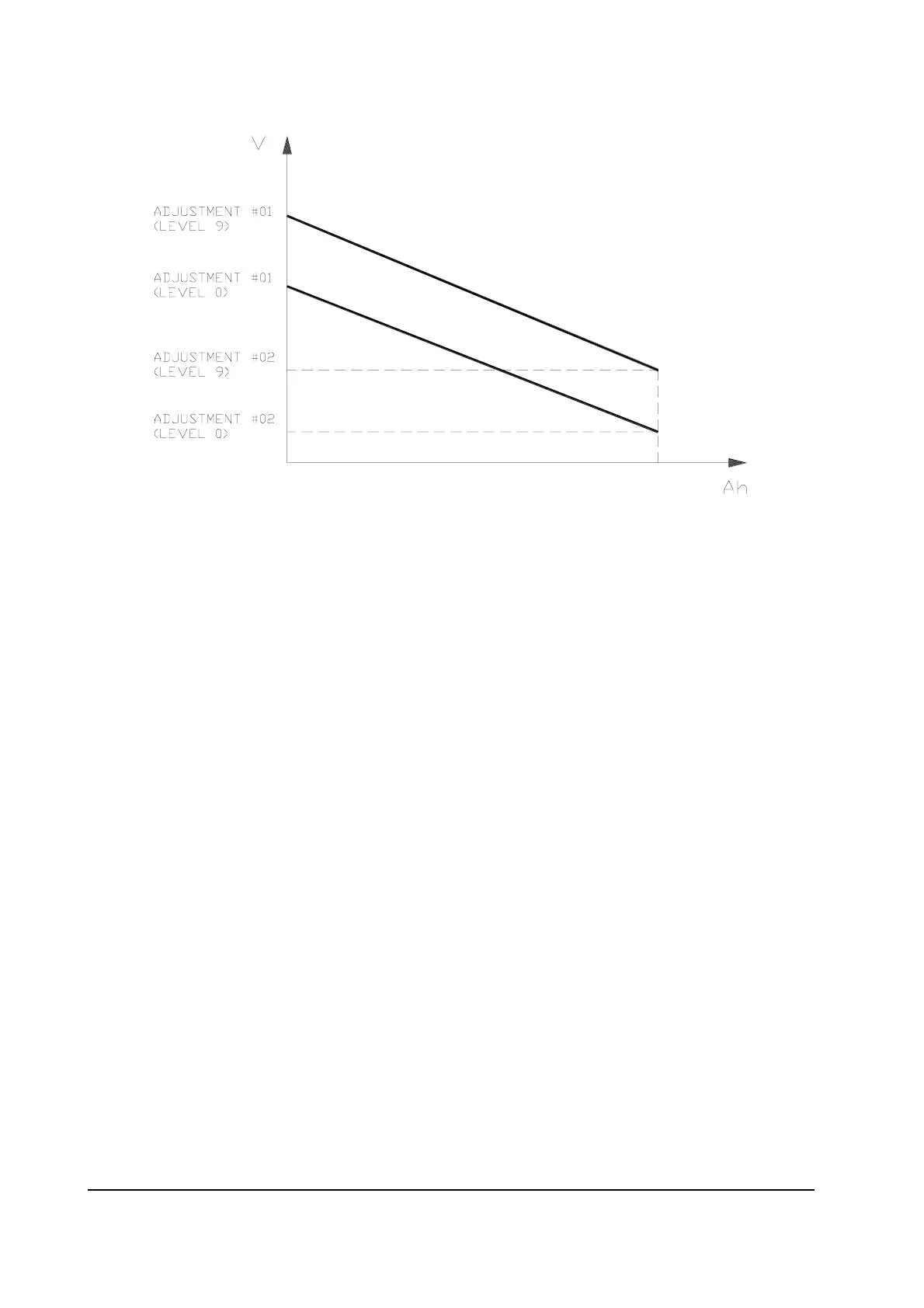

14 ADJUSTMENT #02: adjust the lower level of the battery discharge table.
15 MAIN CONT VOLTAGE: this parameters adjusts the Line contactor coil voltage
(PWM output C26)
16 AUX OUTPUT VOLTAGE: this parameters adjusts the Electric brake coil voltage
(PWM output C28).
5.4.2 "Dualac2" and "Dualac2 Power" - Slave
Using the config menu of the programming console, the user can configure the follow-
ing functions.
SUBMENU "SET OPTIONS"
Not available.
SUBMENU "ADJUSTEMENT"
1 SET BATTERY TYPE: selects the nominal battery voltage;
2 ADJUST BATTERY: fine adjustment of the battery voltage measured by the control-
ler.
3 AUX OUPUT VOLTAGE: this parameter adjust the voltage of the auxiliary output
coil (hydraulic steering contactor coil), PWM output A31.
