Zapi DUALAC2 User Manual

Page 7

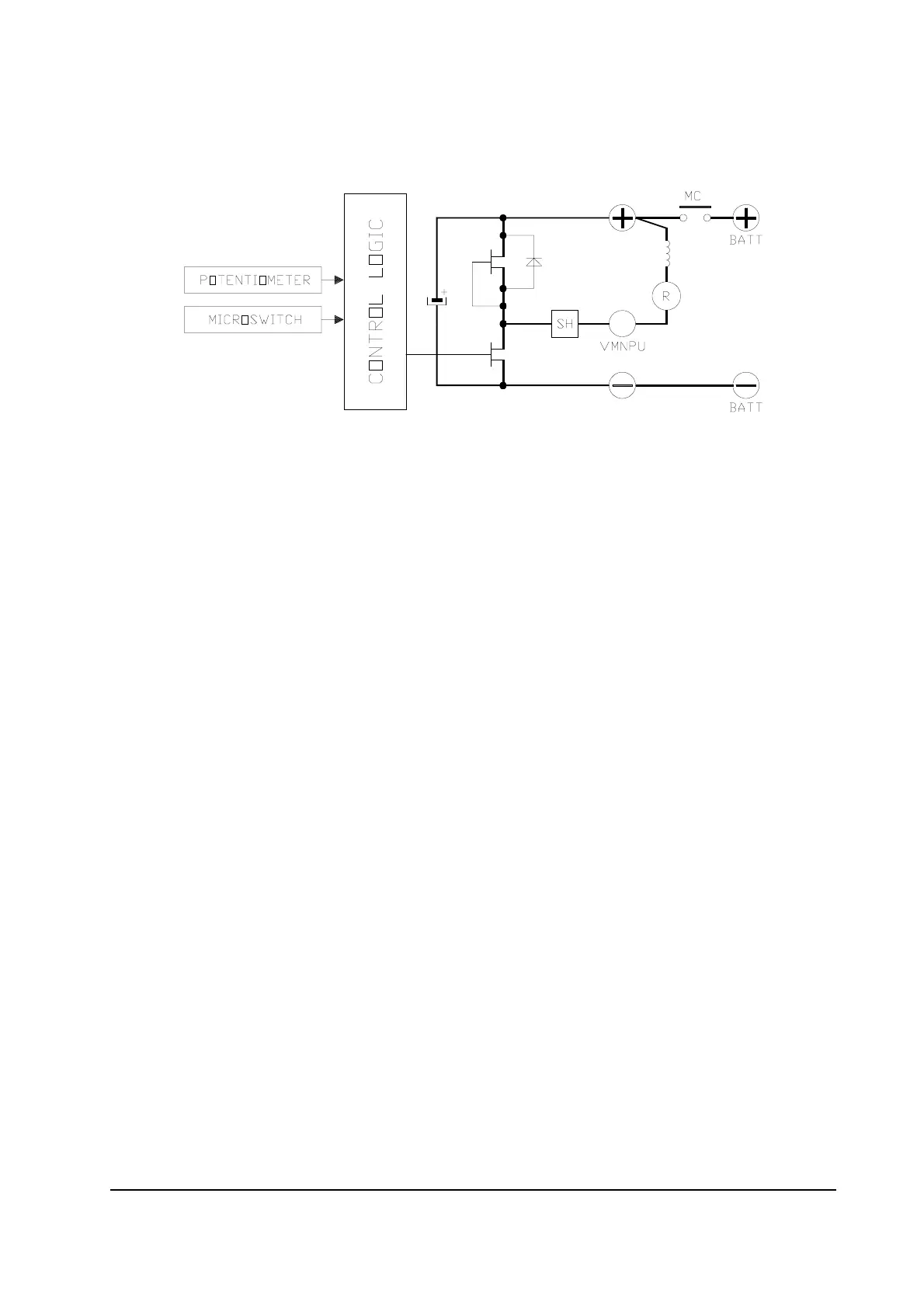

BLOCK DIAGRAM CHOPPER
2.3 TECHNICAL SPECIFICATIONS - "DUALAC2 POWER"
Inverter for pairs of AC asynchronous 3-phase motors
Regenerative braking functions
Can-bus interface
Digital control based upon a microcontroller (one per each AC motor)
Voltage: .................................................................................. 24 - 36 - 48 - 72 - 80V
Maximum current (24V): ........................................ 450A (RMS) for 3' per each motor
Maximum current (36/48V): ................................... 350A (RMS) for 3' per each motor
Maximum current (72/80V): ................................... 275A (RMS) for 2' per each motor
Operating frequency: ..........................................................................................8kHz
External temperature range: ................................................................. -30°C ÷ 40°C
Maximum inverter temperature (at full power): .................................................... 75°C
BLOCK DIAGRAM
See chapter 2.1 - Block Diagram.

Zapi DUALAC2 Specifications
