Page 18

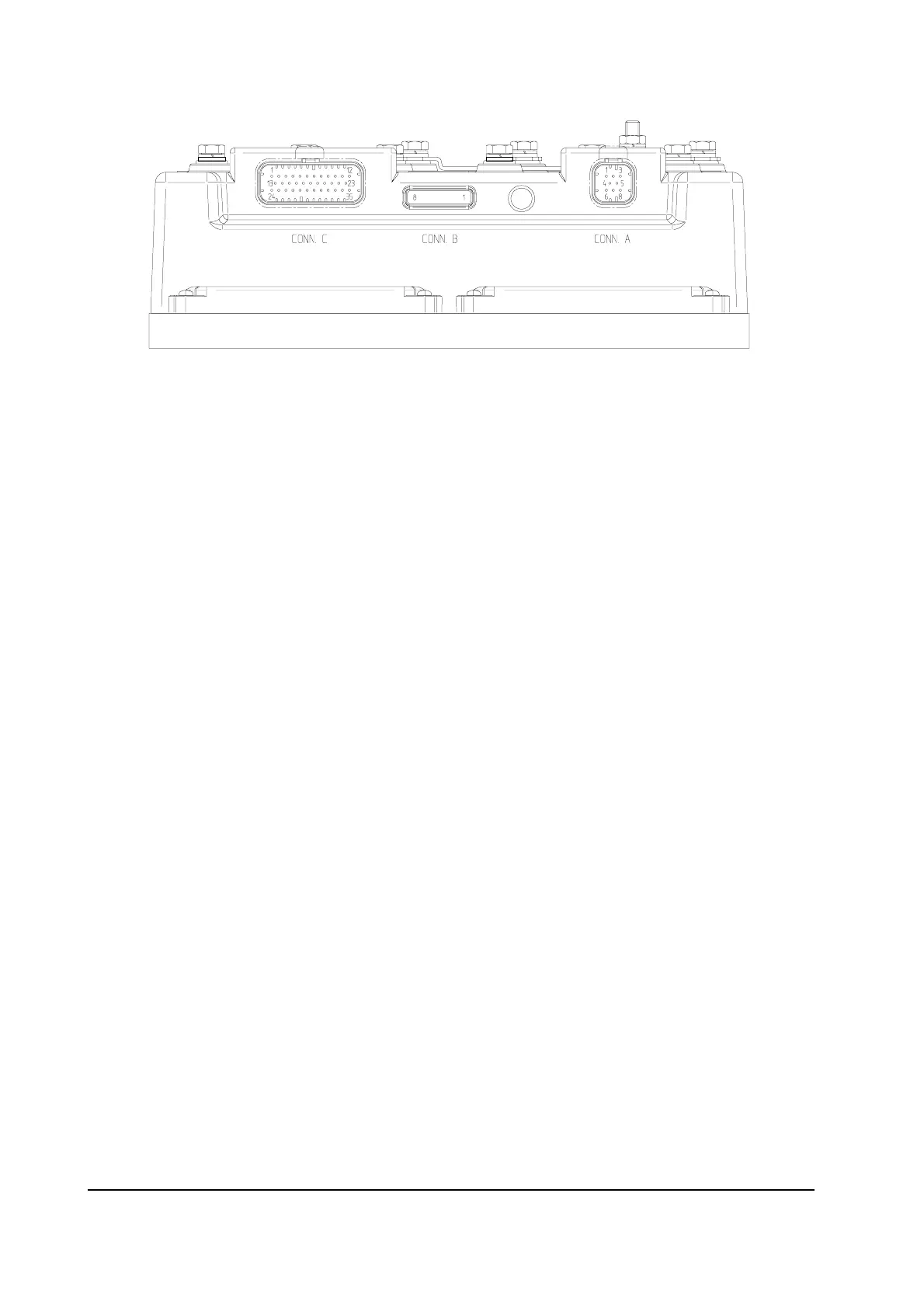

4.4 DESCRIPTION OF CONNECTORS - "DUALAC2" AND "DUALAC2 POWER"
A1 CAN_H High level CANBUS.
A2 CANT_H CANBUS termination output, 120 ohm internally connected to
CAN_H. Connect to CAN_L_OUT to insert the termination.
A3 CAN_POS Positive of CAN circuit; to be used in case of optoisolated
CANBUS.
A4 CAN_L_OUT Low level CANBUS: to be used as repetition for CAN_L line or to be
connected to CANT_H to insert termination resistance.
A5 CANT_L CANBUS termination output, 120 ohm internally connected to
CAN_L. Connect to CAN_H_OUT to insert the termination.
A6 CAN_L Low level CANBUS.
A7 CAN_H_OUT High level CANBUS: to be used as repetition for CAN_H line or to
be connected to CANT_L to insert termination resistance.
A8 CAN_NEG Negative of CAN circuit, to be used in case of optoisolated
CANBUS.
B1 PCLRXD Positive serial reception.
B2 NCLRXD Negative serial reception.
B3 PCLTXD Positive serial transmission.
B4 NCLTXD Negative serial transmission.
B5 GND Negative console power supply.
B6 +12 Positive console power supply.
B7 FLASH
B8 FLASH
