USB to Mix 8 (USB Type A to DB9M)
Pin 1 - Pin 1
USB - DB9M
Pin 2 - Pin 9
Pin 3 - Pin 8
Pin 4 - Pin 6
Case - Pin 5 (Shield)
AES Digital Input / Output Connectors (DB-15)

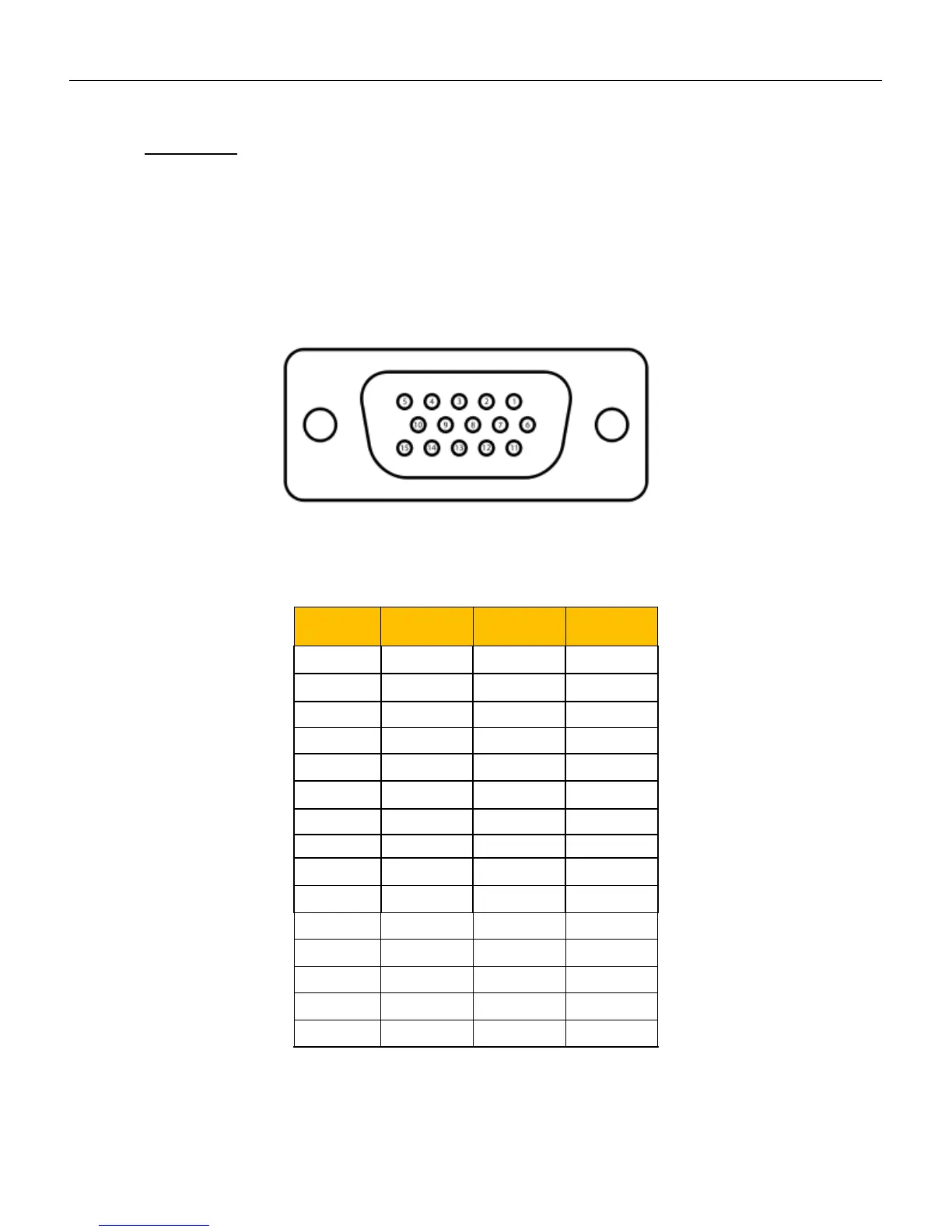

Nomad uses a mini DB-15 (AKA: DE-15) connector for the AES (digital) input and output connectors.
Top row pins: 5, 4, 3, 2, 1
Middle row pins: 10, 9, 8, 7, 6
Bottom row pins: 15, 14, 13, 12, 11
DB -15 Pin
Number
IN / OUT
AES
PAIRS
Connects to
XLR Pin
1 IN 3 / 4 2 (+)
2 IN 1 / 2 2 (+)
3 OUT 5 / 6 2 (+)
4 IN 7 / 8 2 (+)
5 IN 5 / 6 2 (+)
6 OUT 1 / 2 3 (--)
7 OUT 1 / 2 2 (+)
8 GROUND GROUND 1
9 OUT 3 / 4 3 (--)
10 OUT 3 / 4 2 (+)
11 IN 3 / 4 3 (--)
12 IN 1 / 2 3 (--)
13 OUT 5 / 6 3 (--)
14 IN 7 / 8 3 (--)
15 IN 5 / 6 3 (--)
