Configuration
Standard Control Panel Parameters
106
P1009874-001 Xi4 User Guide 3/12/09

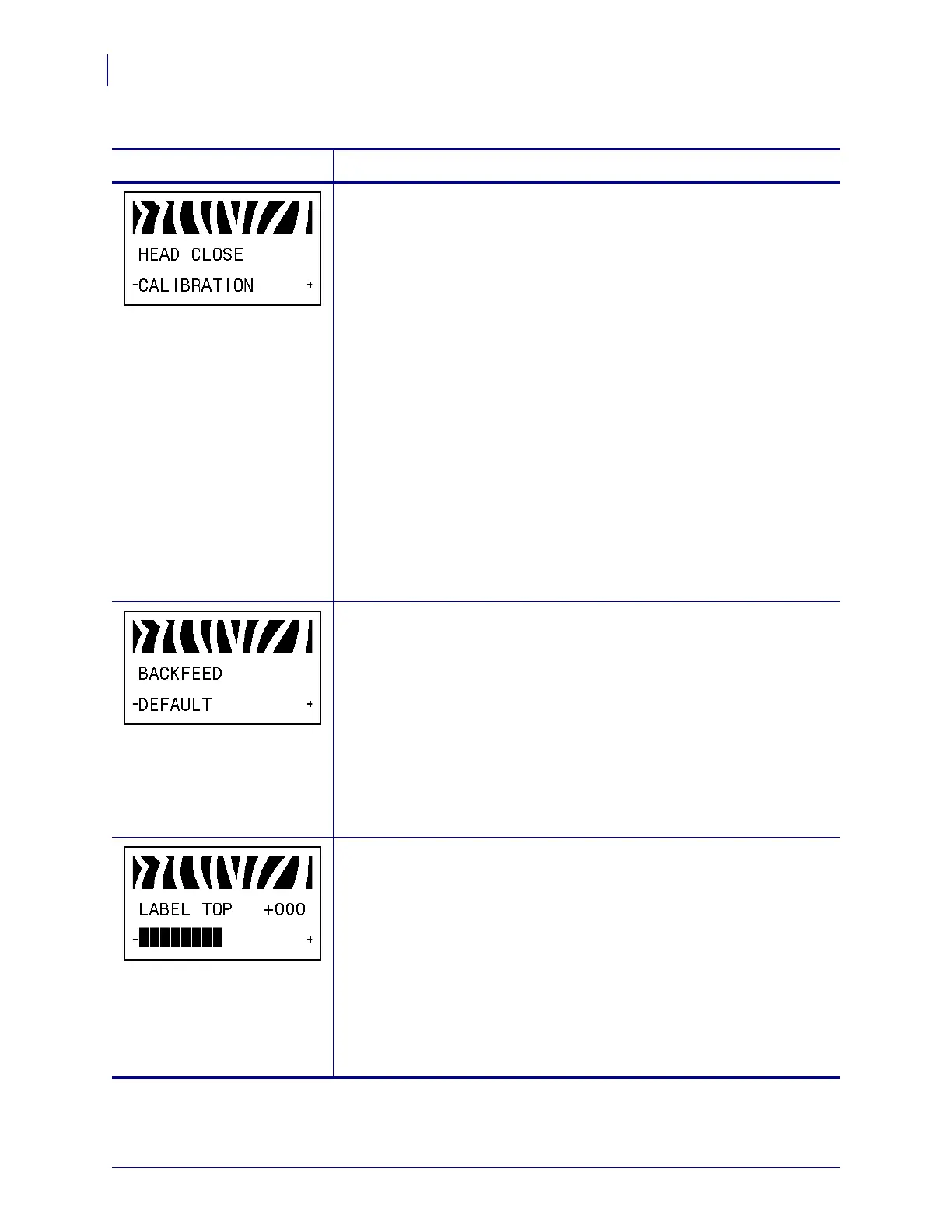

Select Head Close Option
This parameter sets the action of the media when you close the printhead.
Default Value (non-RFID printers): CALIBRATION
Default Value (RFID printers): FEED
Selections: CALIBRATION, LENGTH, SHORT CAL, NO MOTION,
FEED
Calibration adjusts sensor levels and thresholds, determines length,
and feeds the media to the next web.
Short Cal sets media and web thresholds without adjusting sensor
gain, determines length, and feeds the media to the next web.
Length determines label length using current sensor values, and feeds
the media to the next web.
No Motion tells the printer not to move the media. You must
manually ensure that the web is positioned correctly, or press feed to
position the next web.
Feed—feeds the labels to the first registration point.
To change the value shown:
1. Press PLUS (+) or MINUS (-) to scroll through the options.
Select Backfeed Sequence
This parameter sets when label backfeed occurs after a label is removed in
some print modes. It has no effect in Rewind mode. This setting is
superseded by
~JS when received as part of a label format (see the ZPL
Programming Guide for more information).
Default Value: DEFAULT (90%)
Selections: DEFAULT, AFTER, OFF, BEFORE, 10%, 20%, 30%, 40%,
50%, 60%, 70%, 80%
To change the value shown:
1. Press PLUS (+) or MINUS (-) to scroll through the options.
Adjust Label Top Position
This parameter adjusts the print position vertically on the label. Positive
numbers adjust the label top position farther down the label (away from the
printhead) by the specified number of dots. Negative numbers adjust the
position up the label (toward the printhead).
Default Value: +000
Range: -120 to +120
To change the value shown:
1. Press PLUS (+) to increase the value.
2. Press MINUS (-) to decrease the value.
Table 9 • Printer Parameters (Sheet 16 of 22)
