Troubleshooting
Printer Diagnostics
150
P1009874-001 Xi4 User Guide 3/12/09
4. See Figure 26 and Table 18. Inspect the test labels and determine which one has the best
print quality for your application. If you have a bar code verifier, use it to measure
bars/spaces and calculate the print contrast. If you do not have a bar code verifier, use your
eyes or the system scanner to choose the optimal darkness setting based on the labels
printed in this self test.

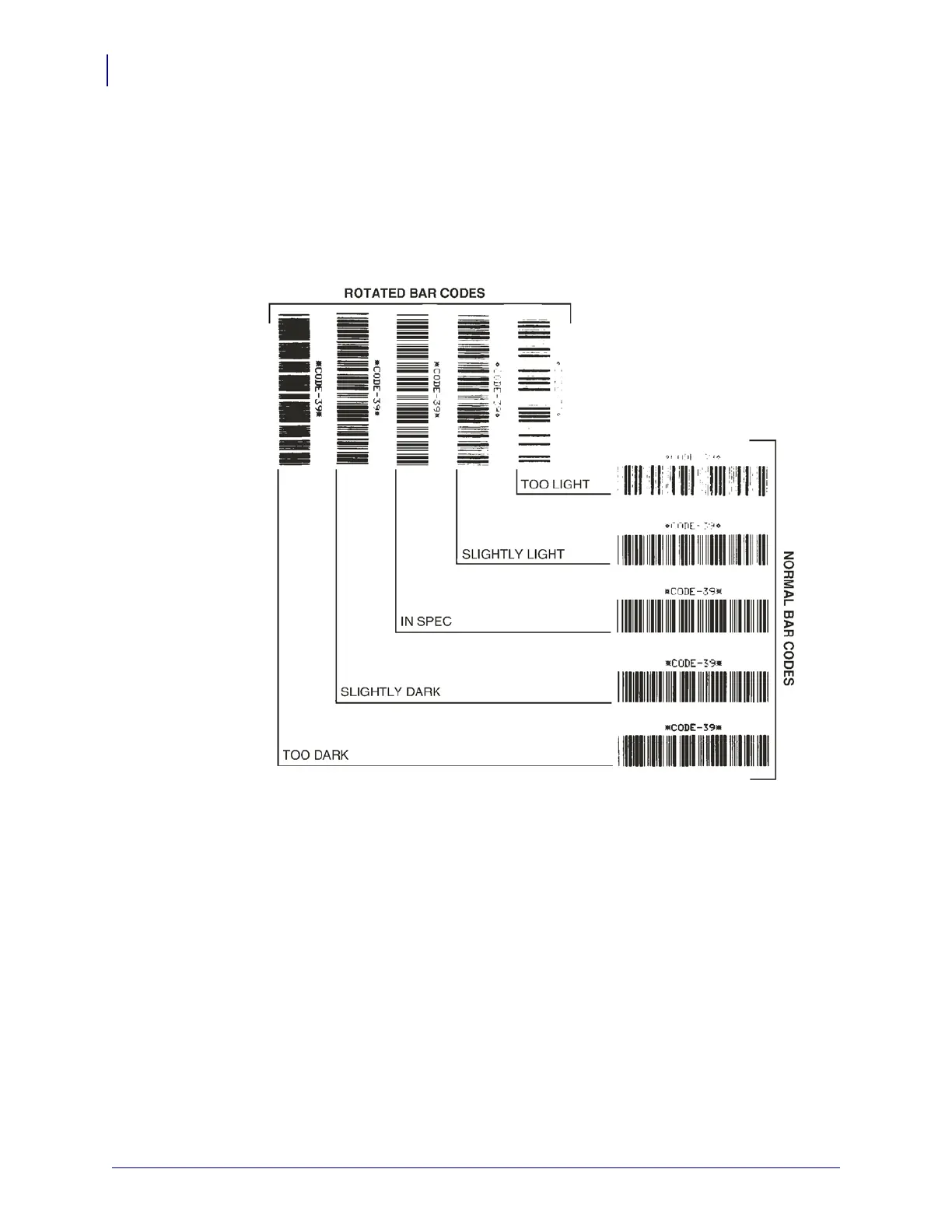

Figure 26 • Bar Code Darkness Comparison
