Zebra S4M User Manual

17
Introduction
Control Panel
6/15/09 S4M User Guide 13290L-004 Rev. A
Control Panel
All controls and indicators for the printer are located on the control panel (Figure 3).
•The control panel Liquid Crystal Display (LCD) shows the operating status and printer
parameters.
•The control panel buttons are used to control the printer operations and to set parameters.
•The control panel lights (LEDs) show the printer’s operating status or indicate which
control panel buttons are active.

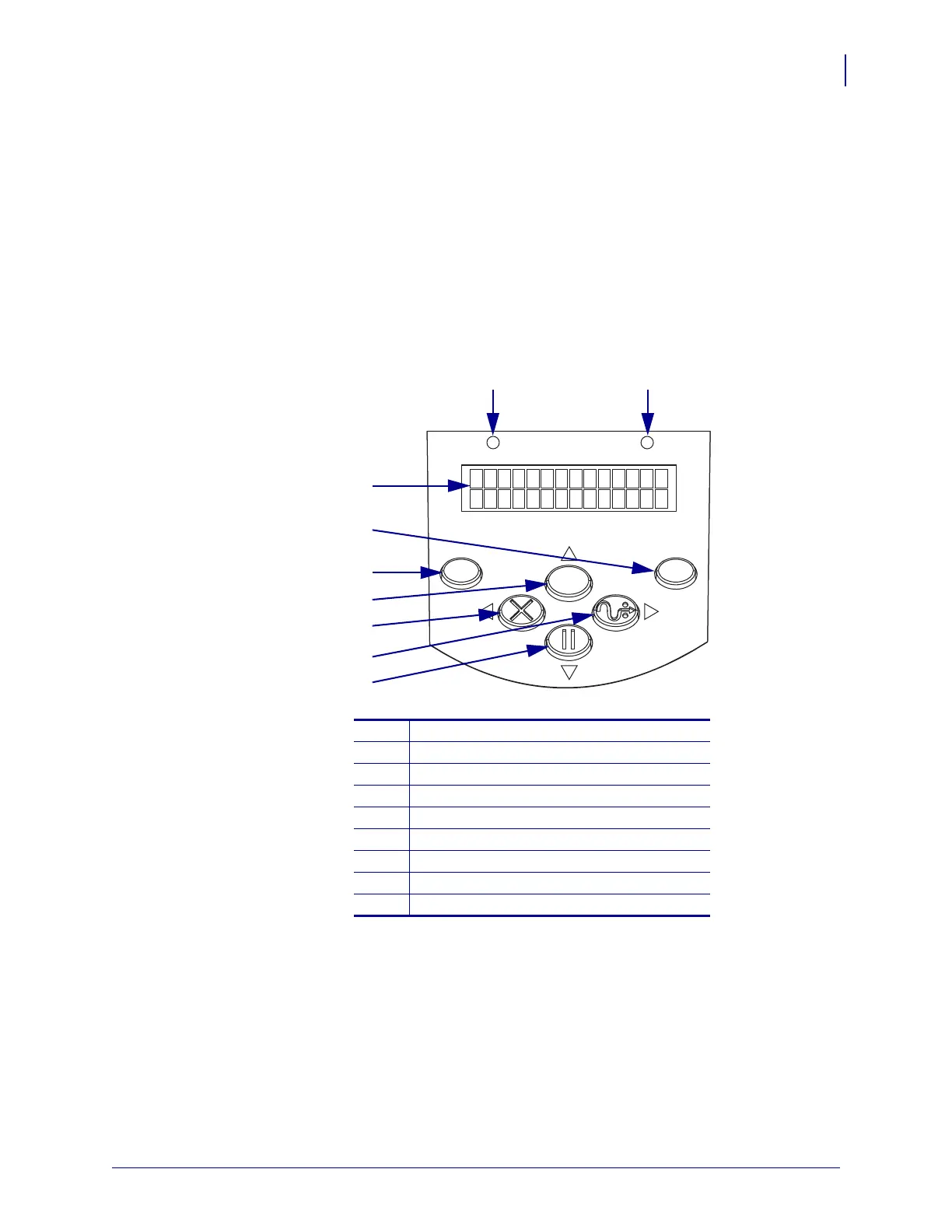

Figure 3 • Location of Control Panel Buttons and Lights
1
ALERT light
2
POWER light
3
LCD
4
ENTER button
5
MENU button
6
Up arrow button
7
CANCEL or Left Arrow button
8
FEED or Right Arrow button
9
PAUSE or Down Arrow button
POWER ALERT
MENU
CANCEL FEED
PAUSE
ENTER
3
5
6
7
8
9
2 1
4

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
