Routine Maintenance
Cleaning Procedures
6/15/09 S4M User Guide 13290L-004 Rev. A
Clean the Media Compartment and Sensors
To clean the media compartment and sensors, complete these steps:
1. Brush or vacuum any accumulated paper lint and dust away from the media and ribbon
paths.
2. Brush or vacuum any paper lint and dust away from the sensors (see Figure 21).

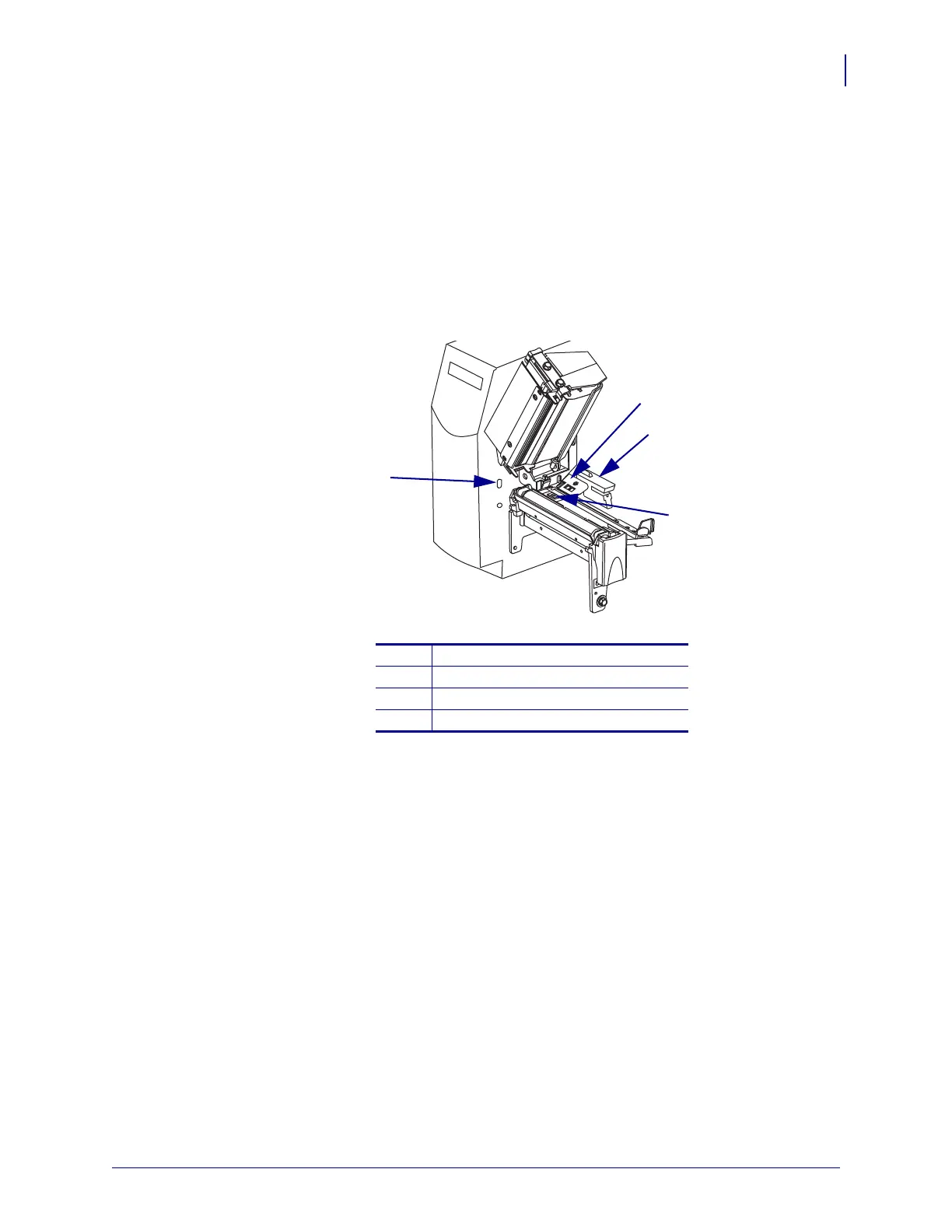

Figure 21 • Cleaning the Sensors
1
Take-label sensor
2
Ribbon sensor
3
Transmissive sensor
4
Reflective sensor
1
3
4
2

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
