Operations
Print Modes and Printer Options
40
13290L-004 Rev. A S4M User Guide 6/15/09
Insert Media into the Printer
This section shows how to insert roll or fanfold media into the printer. Fanfold media is loaded
the same way as roll media, except the media is stored outside of the printer.

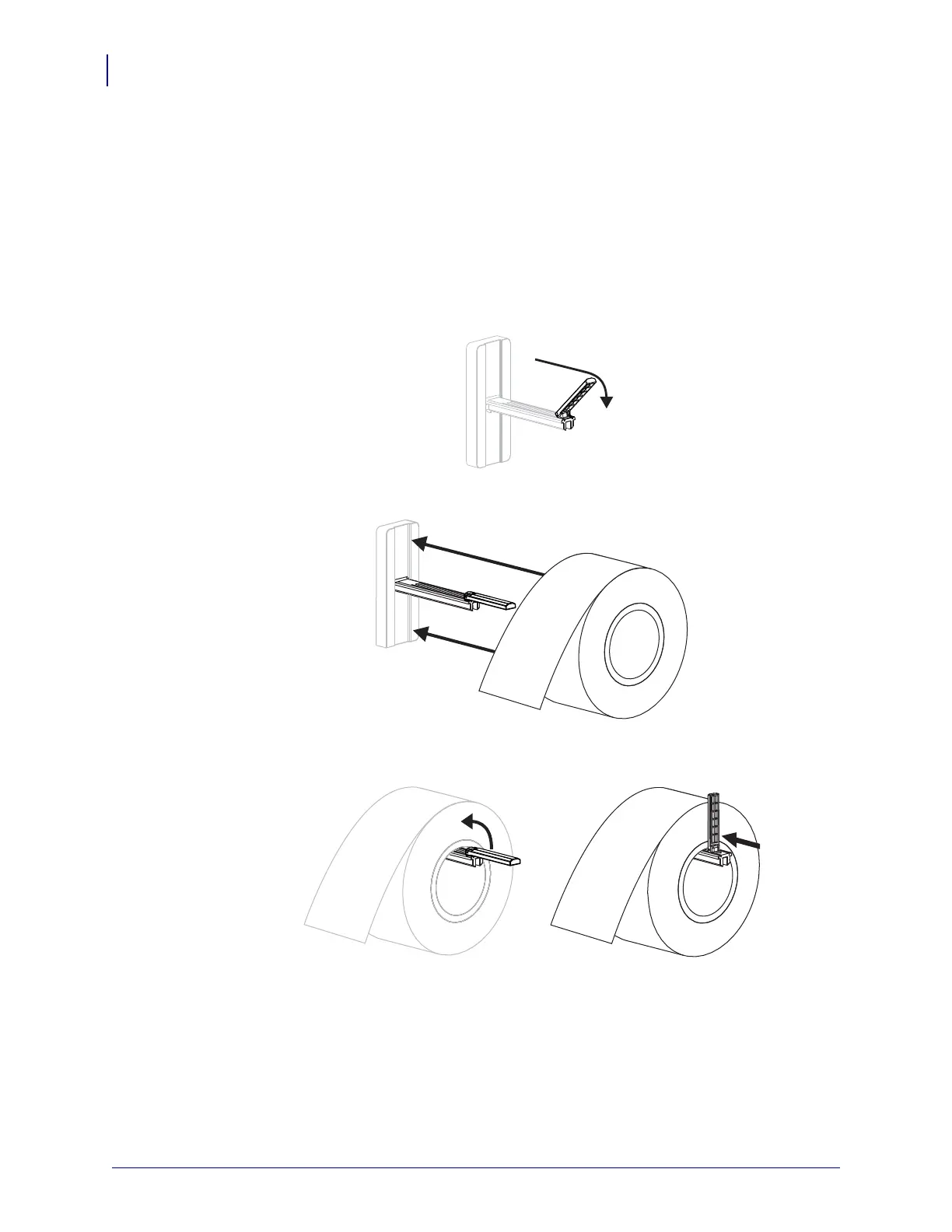

Roll Media
To insert roll media, complete these steps:
1. Flip down the media supply guide.
2. Place the roll of media on the media supply hanger. Push the roll as far back as it will go.
3. Flip up the media supply guide, and then slide it in until it touches, but does not restrict,
the edge of the roll.
4. Continue with the media loading procedure for the desired print mode.

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
