Zebra S4M User Manual

43
Operations

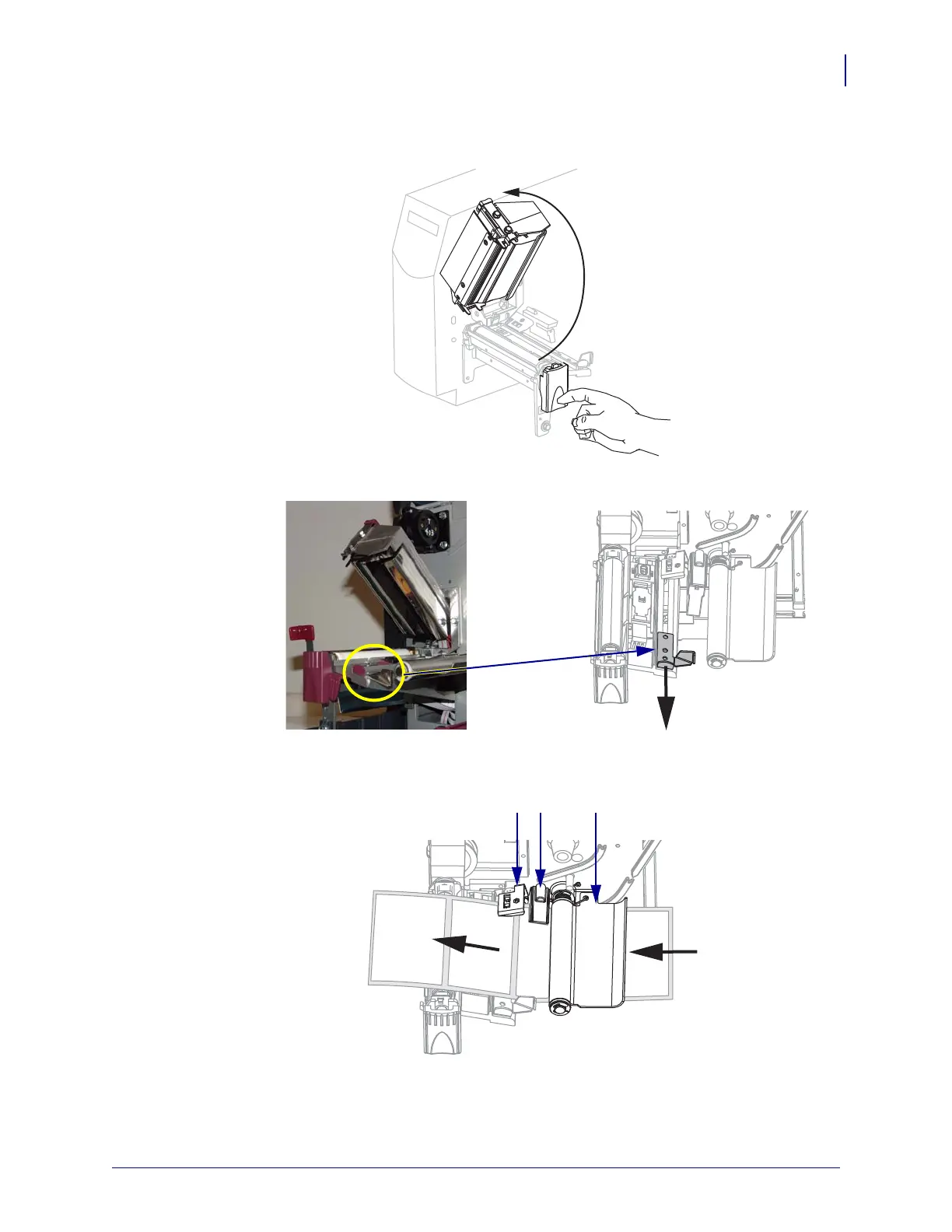

Load Media in Tear-Off Mode
6/15/09 S4M User Guide 13290L-004 Rev. A
3. Press the printhead release latch to open the printhead assembly. Lift the printhead until it
latches open.
4. Slide out the media guide.
5. Feed the media under the dancer assembly (1), through the slot in the transmissive
sensor (
2—standard transmissive sensor shown), and under the ribbon sensor (3).
123

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
