BOX - Translation of the original instructions
2.6 Technical specifications
blueBOX 60 blueBOX 90 blueBOX 150 blueBOX 250 blueBOX 500
Capacity (litres) 60 90 150 250 500
Dimensions (mm) 484x585 H 520 484x585 H 620 544X804 H 635
494x904 H 855
H1152 (with extension)
1004x904 H 855
H1152 (with extension)
No. pumps 1 1 1 1 1 - 2
Conguration FIXED FIXED - DAC

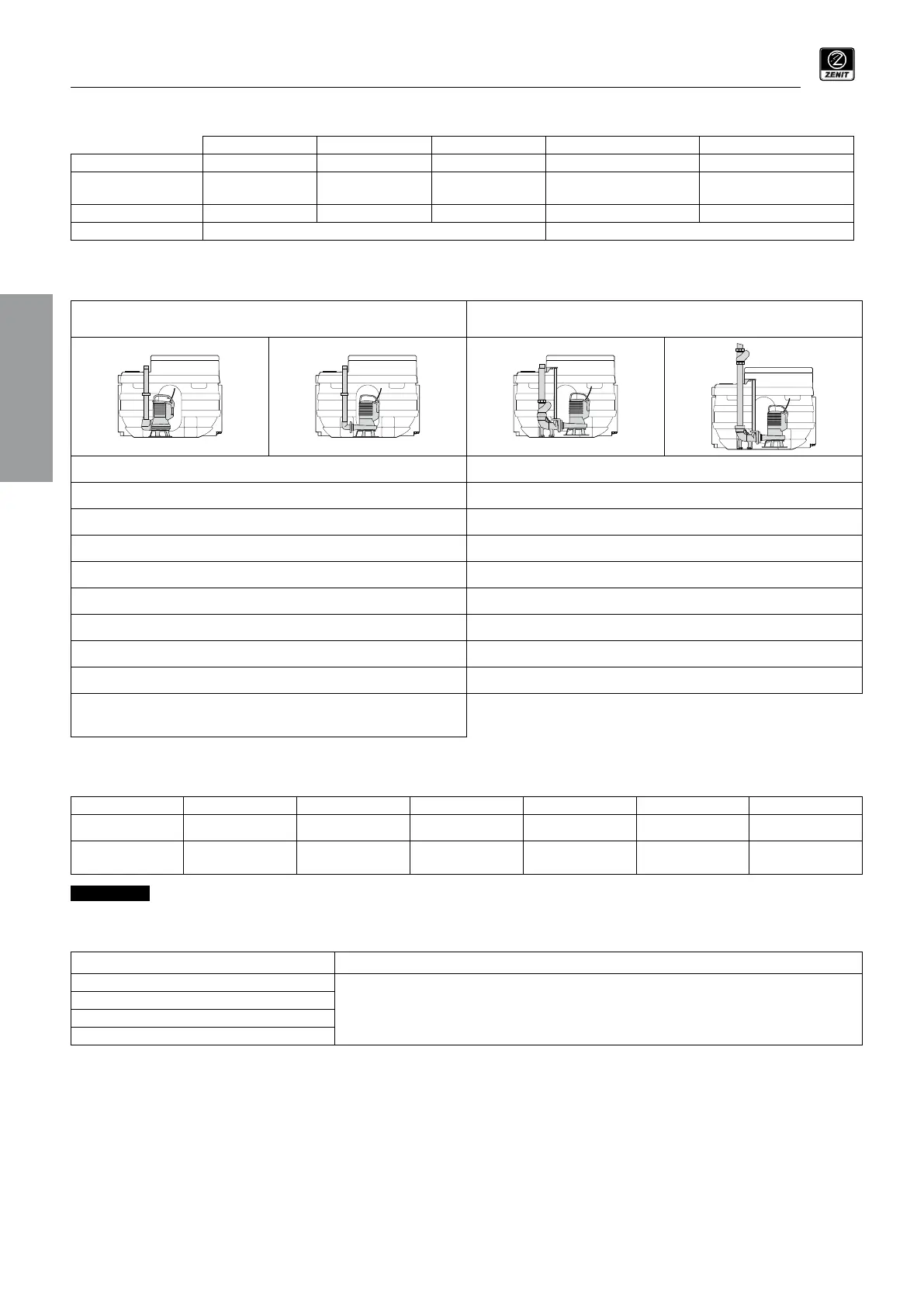

2.7 Configurations
FIXED
(blueBOX 60/90/150/250/500)
With coupling device (DAC)
(blueBOX 250/500)
Possibility of installing vertical and horizontal discharge pumps Possibility of installing horizontal discharge pumps
Discharge pipe in PVC Ø1½" - Ø2" Coupler feet (DAC)
Discharge tting in PVC Ø1½" - Ø2" Ball check valve VAP (optional)
Elbow coupling in PVC for horizontal discharge model Ø1½" Discharge pipe in PVC with connection Ø 2"
Discharge pipe in stainless steel (optional) Discharge pipe in stainless steel with connection Ø 2"(optional)
Collar connection Emergency emptying system
Fitting for emergency emptying Maximum level alarm oat
Maximum level alarm oat (optional) Vent valve with active carbon lter
Vent valve with active carbon lter Level sensor 4-20 mA
Level sensor 4-20 mA
(optional for blueBOX 60, 90 and 150 standard version,
as standard for blueBOX 150 full optional version, 250 and 500)
2.8 Recommended pumps (not included)
Model Impeller type P2 [KW] Q [l/sec] H [m] Discharge pump Ø discharge
DG bluePRO Vortex in cast iron 0.37 - 1.5 5.1 - 12.6 7.0 - 15.3 G 1½" – G 2” 40/50
GR bluePRO
With grinding
system
0.74 - 1.5 4.7 - 5.6 18.0 - 27.0 G 1½" DN32PN6 40/50

The maximum inlet flow rate to the tank must be lower than the maximum flow rate of the selected pump.
2.9 Recommended electrical control panels (not included)
Model Description
Q1EL M 0.37-2.2 KW - 2-16A - AS/AV
Electronic control panel with self-learning for direct starting of single- and three-phase pumps,
amperometric protection against dry run operation by cos φ and minimum current.
For installation and use, please refer to the relative manual.
Q1EL T 0.55-7.5 KW - 2-15A - AS/AV
Q2EL M 0.37-2.2 KW - 2-16A - AS/AV
Q2EL T 0.55-7.5 KW - 2-15A - AS/AV
