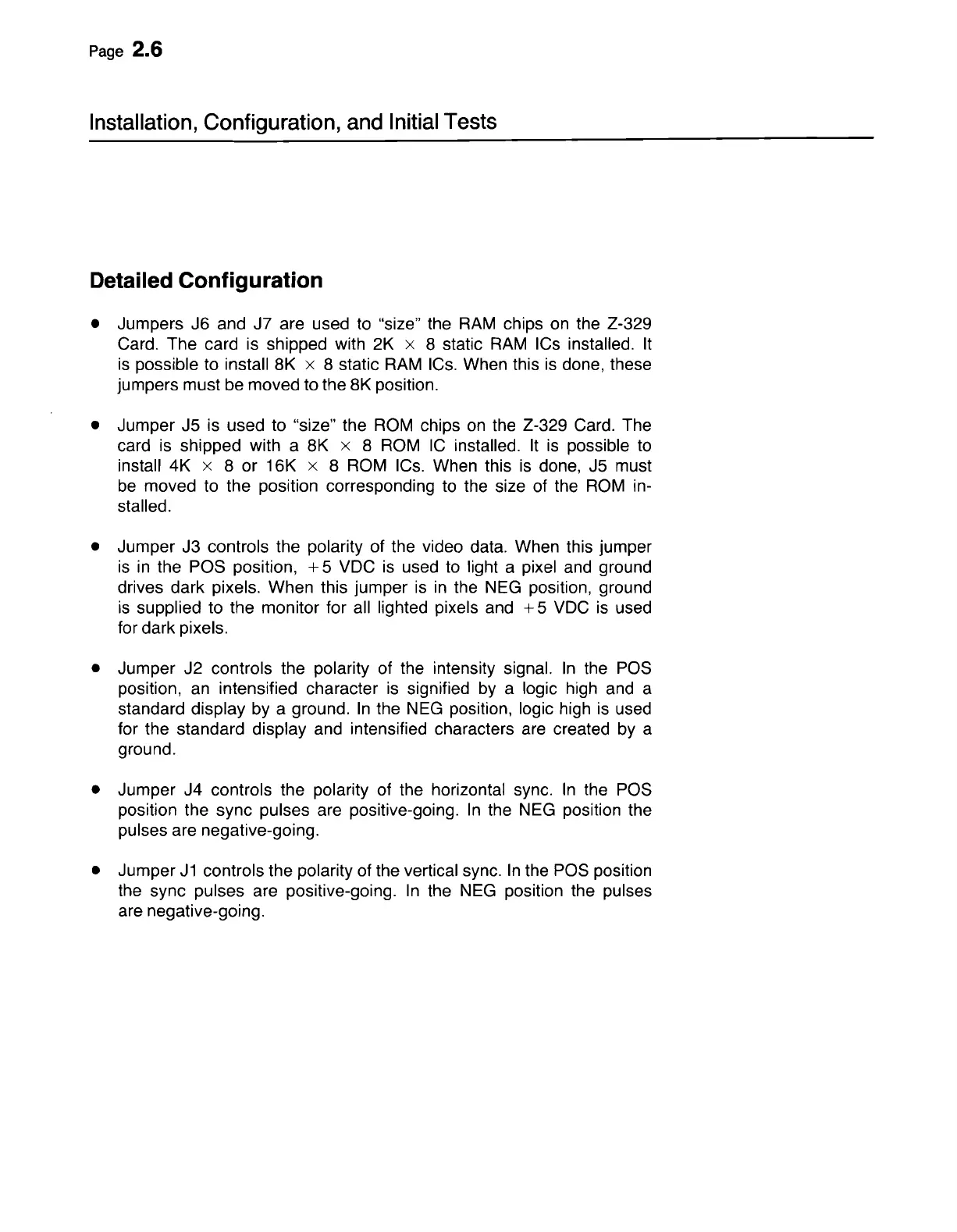

Detailed Configuration
• Jumpers J6 and J7 are used to "size" the
RAM
chips on the Z-329
Card. The card is shipped with 2K x 8 static
RAM
ICs installed.
It
is
possible to install 8K x 8 static
RAM
ICs. When this
is
done, these
jumpers must be moved to the 8K position.
• Jumper J5 is used to "size" the
ROM
chips
on
the Z-329 Card. The
card is shipped with a 8K x 8
ROM
IC
installed.
It
is
possible
to
install 4K x 8 or 16K x 8 ROM ICs. When this
is
done, J5 must
be
moved to the position corresponding
to
the size of the
ROM
in-
stalled.
• Jumper J3 controls the polarity of the video data. When this jumper
is
in
the pas position, +5 VDC
is
used
to
light a pixel and ground
drives dark pixels. When this jumper
is
in
the NEG position, ground
is
supplied to the monitor for all lighted pixels and +5 VDC
is
used
for dark pixels.
• Jumper J2 controls the polarity of the intensity signal.
In
the pas
position,
an
intensified character
is
signified by a logic high and a
standard display by a ground.
In
the NEG position, logic high
is
used
for the standard display and intensified characters are created by a
ground.
• Jumper J4 controls the polarity of the horizontal sync.
In
the pas
position the sync pulses are positive-going.
In
the NEG position the
pulses are negative-going.
• Jumper
J1
controls the polarity of the vertical sync.
In
the pas position
the sync pulses are positive-going.
In
the NEG position the pulses
are negative-going.
