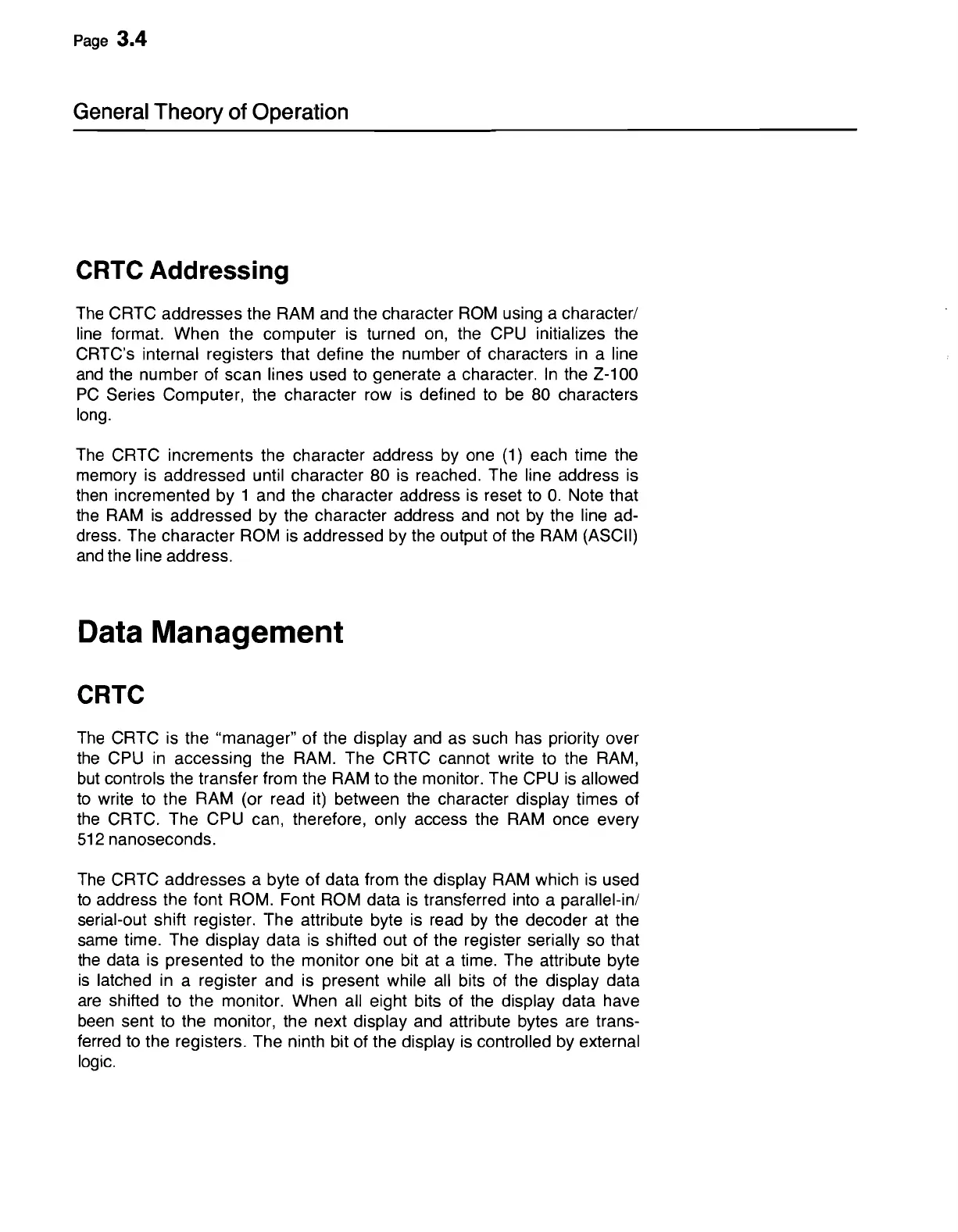

Page
3.4
General
Theory
of
Operation
CRTC Addressing
The
CRTC addresses the RAM and the character
ROM
using a character/
line format. When the computer
is
turned on, the CPU initializes the
CRTC's internal registers that define the number of characters
in
a line
and
the number of scan lines used
to
generate a character.
In
the Z-100
PC
Series Computer, the character row is defined
to
be
80 characters
long.
The CRTC increments the character address by one
(1)
each time the
memory is addressed until character 80 is reached. The line address is
then
incremented by 1 and the character address is reset
to
O.
Note that
the
RAM
is
addressed by the character address and not by the line ad-
dress. The character ROM is addressed by the output of the
RAM
(ASCII)
and the line address.
Data Management
CRTC
The
CRTC is the "manager" of the display and as such has priority over
the
CPU
in
accessing the RAM. The CRTC cannot write to the RAM,
but
controls the transfer from the RAM to the monitor. The CPU
is
allowed
to
write to the RAM (or read
it)
between the character display times of
the
CRTC. The CPU can, therefore, only access the
RAM
once every
512
nanoseconds.
The
CRTC addresses a byte of data from the display RAM which is used
to
address the font ROM. Font ROM data
is
transferred into a parallel-in/
serial-out shift register. The attribute byte is read
by
the decoder at the
same time. The display data
is
shifted out of the register serially so that
the
data is presented to the monitor one bit at a time. The attribute byte
is
latched
in
a register and is present while all bits of the display data
are
shifted to the monitor. When all eight bits of the display data have
been sent
to
the monitor, the next display and attribute bytes are trans-
ferred
to
the registers. The ninth bit of the display is controlled by external
logic.
