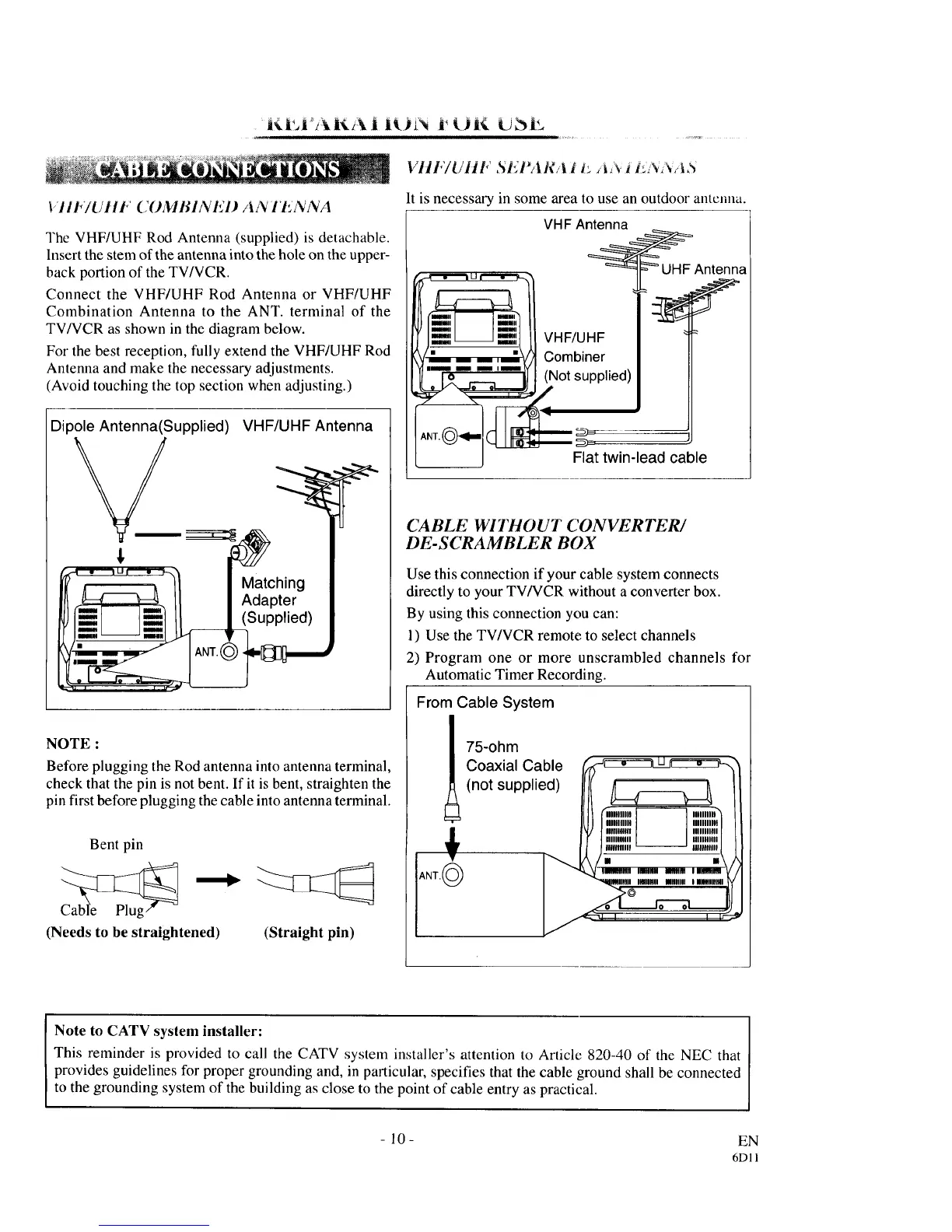

VItI,YUttP SEPARA i i_ AA i i_A_AA5
VIII_/UttP ' COMBINIfl) A N 11":NNA
q'he VHF/UHF Rod Antenna (supplied) is detachable.
Insert the stem of the antenna into the hole on the upper-
back portion of the TV/VCR.
Connect the VHF/UHF Rod Antenna or VHF/UHF
Combination Antenna to the ANT. terminal of the
TV/VCR as shown in the diagram below.
For the best reception, fully extend the VHF/UHF Rod
Anlenna and make the necessary adjustments.
(Avoid touching the top section when adjusting.)
Dipole Antenna(Supplied) VHF/UHF Antenna
NOTE :
Before plugging the Rod antenna into antenna terminal,
check that the pin is not bent. If it is bent, straighten the
pin first before plugging the cable into antenna terminal.
Bent pin
(Needs to be straightened) (Straight pin)
It is necessary in some area to use an outdoor antenna.
[ VHF Antenna
=_ UHF Antenna
VHF/UHF
1__ Combiner II
I I (Notsupplied) II
_ Flat twin-lead cable
CABLE WITHOUT CONVERTER/
DE-SCRAMBLER BOX
Use this connection if your cable system connects
directly to your TV/VCR without a converter box.
By using this connection you can:
1) Use the TV/VCR remote to select channels
2) Program one or more unscrambled channels for
Automatic Timer Recording.
From Cable System
75-ohm
Coaxial Cable _t____'_
(not suppli
,I,
ANT.@
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building as close to the point of cable entry as practical.
-10-
EN
6DI 1
