JesterML Operating Manual Setup Mode
38 of 73 73-406-00 Issue 2.0
For DMX Input, only the first address specified in the DMX Patch is used to extract a
brightness level for the channel. Duplicate addresses are ignored for the DMX Input.
DMX Input Tutorial
The example given below shows how to set up a Jester24/48 with a JesterML.
Connect Up

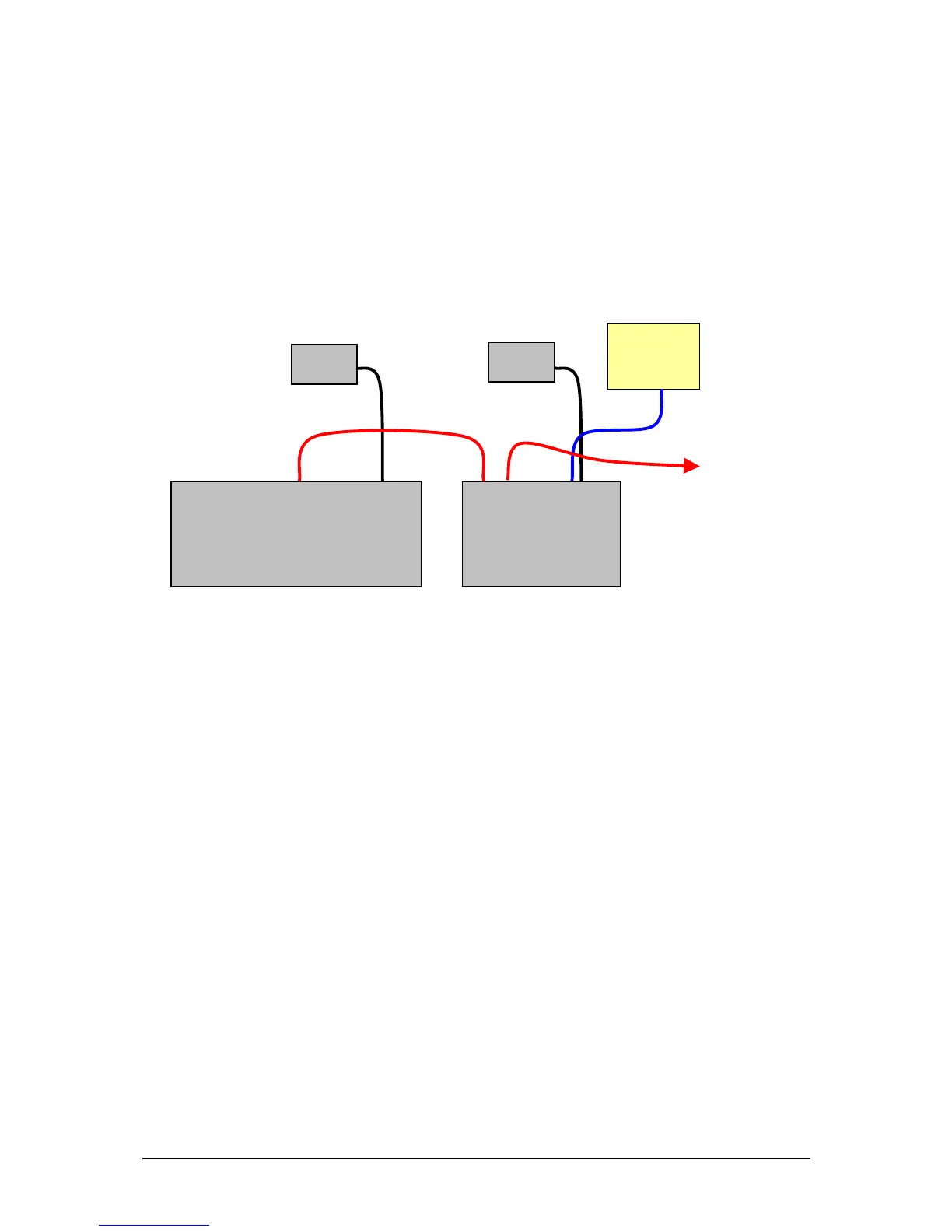

Connect up as shown below:
Setting up the Jester24/48
• Clear the desk to defaults to ensure a 1:1 patch. (NB: if you wish to save any
old show data to USB, do this first). To clear the desk, go into Super User
(hold SHIFT and MODE for a few seconds), then select Reset Desk, select
<OK>, and confirm the warning pop-up. Once back in the main Super User
menu, hold MODE for a few seconds to leave Super User.
• Make sure the desk is in Preset Mode (hold MODE for a couple of seconds if
in Run Mode or Program Mode).
• Set all the preset faders to zero, the A Master to full, and the B Master to zero.
Raise the Grand Master to full, and ensure that Blackout is not active.
• Set the fade time and speed pots to Manual (click off).
• Press the Page B button so that 25-48 is selected and the STORE button
lights up orange.
• Make sure that the A FADERS, B STORED LED is lit, if not, press the STORE
button so that it is.
Setting up the JesterML
• Set a 1:1 patch for all 48 preset channels. This is done in the DMX Patch
menu in Setup (hold SHIFT and MODE for a few seconds to enter Setup). You
can either do this manually if you wish to keep your fixture patch addresses, or
hold down CLEAR for a few seconds to set the default patch (which will
unpatch the fixtures). To auto-patch the fixtures consecutively after the 48
preset channels, hold down SHIFT and CLEAR for a few seconds.
Jester24/48
JesterML
