Technical Specification

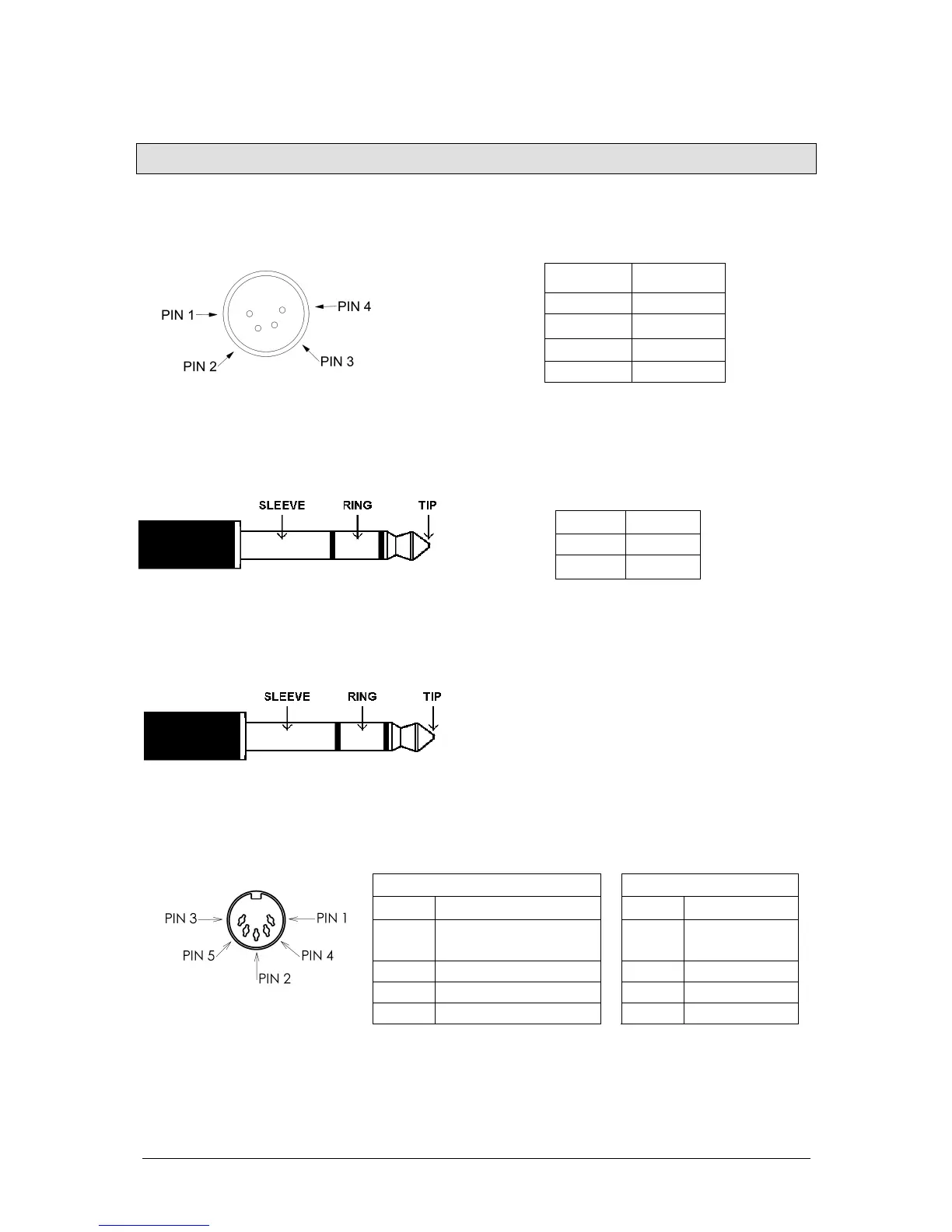

This section of the manual lists all the various inputs, outputs and connections to the
desk.
Power Supply
Pin 1 0V
Pin 2 +5V
Pin 3 +12V
Pin 4 Not Used
Shell Ground
An inline external power supply unit is used to power the JesterML. This is
connected to the desk via a 4-pin XLR connector.
Audio In
Tip Left
Ring Right
Sleeve
The desk has an audio port on the rear panel, in the form of a stereo ¼ inch jack
sockets. This is used for the Sound Input functions on the desk.
Remote Input
A jack connector provides a remote switch. Short tip to sleeve to simulate a button
push.
MIDI
MIDI Input MIDI Thru
Pin 1 Not Used Pin 1 Not Used
Pin 2 Not Used Pin 2 Signal
Ground
Pin 3 Not Used Pin 3 Not Used
Pin 4 Opto isolated Input
