8 • Setting the Case
SETTING THE CASE
Reveal Merchandiser
®
Support Brace - Removal & Installation
An 8' or 12' Reveal Merchandiser
®
in a Hybrid
™
conguration will be shipped with a support brace that strengthens its canopy. This
support brace can be removed in order to move the case through a low doorway; this reduces the height by ~3". The support brace
must be reinstalled before the condensing unit is placed on top of the display case and before the display case is set against a wall.
DESCRIPTION 8' CASE QUANTITY 12' CASE QUANTITY
Ceiling Support Braces 2 3
Rear Wall Support Braces 2 3
Piping Cutout Support Brackets 4 6
1" Hex Screws 32 48
5" Hex Bolts 8 12
Washers 16 24
1/2" Round Spacers 8 12
Lock Nuts 8 12
An 8' Reveal Merchandiser
®
(8ORMC) uses 2 support braces. A 12' Reveal Merchandiser
®
(12ORMC) uses 3 support braces.

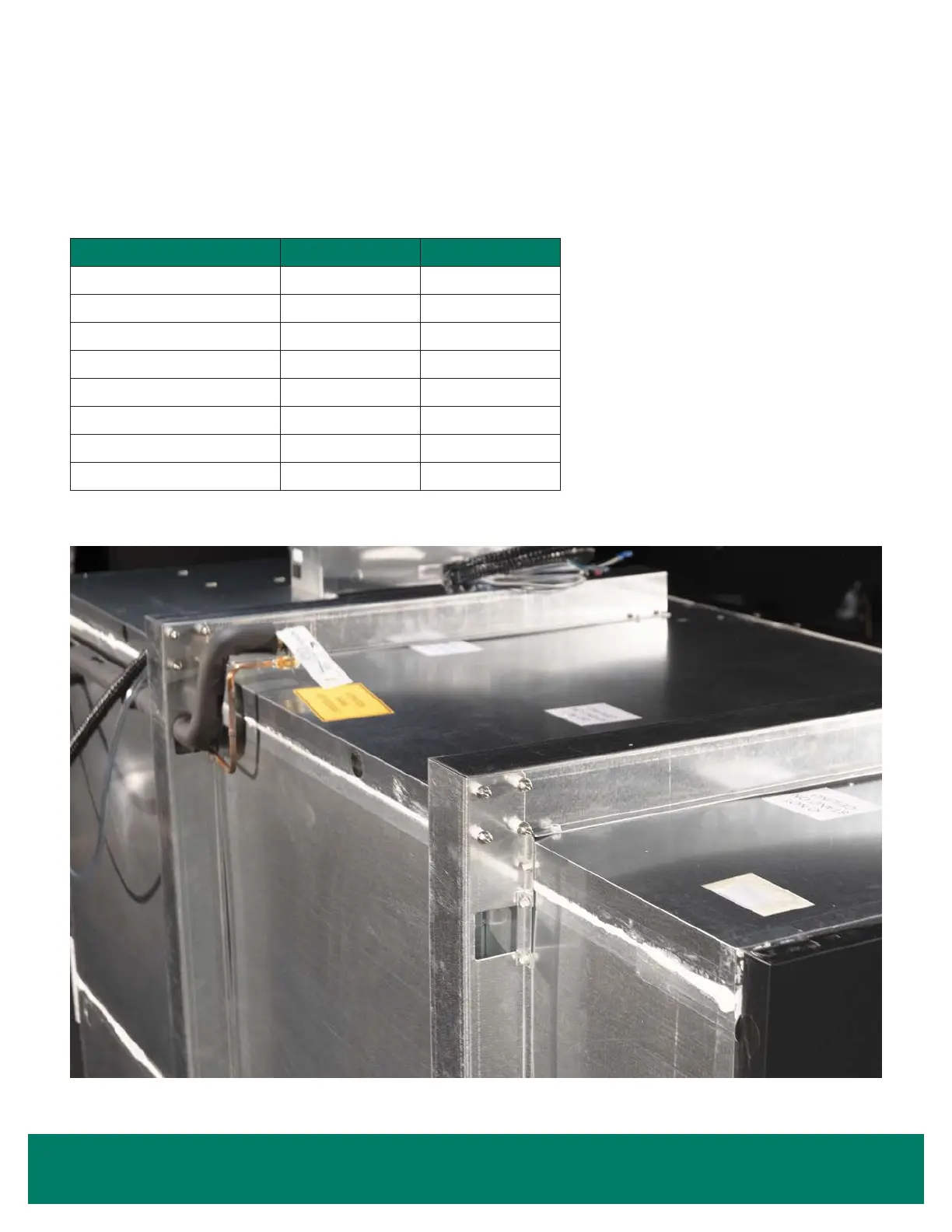

Support Brace Assembled & Shipped. 8' Reveal Merchandiser
®
Shown.
