16 • Electrical/Control
ELECTRICAL/CONTROL
Power runs from the store panel disconnect switch to the condensing unit electrical box and then to the case electrical box.
Cases receive 208V 4-wire service; 115/208V/1/60Hz; red and black power, white neutral, green ground (eld connection).
DO NOT ENERGIZE POWER UNTIL ALL COVERS ARE ON ALL ELECTRICAL BOXES.

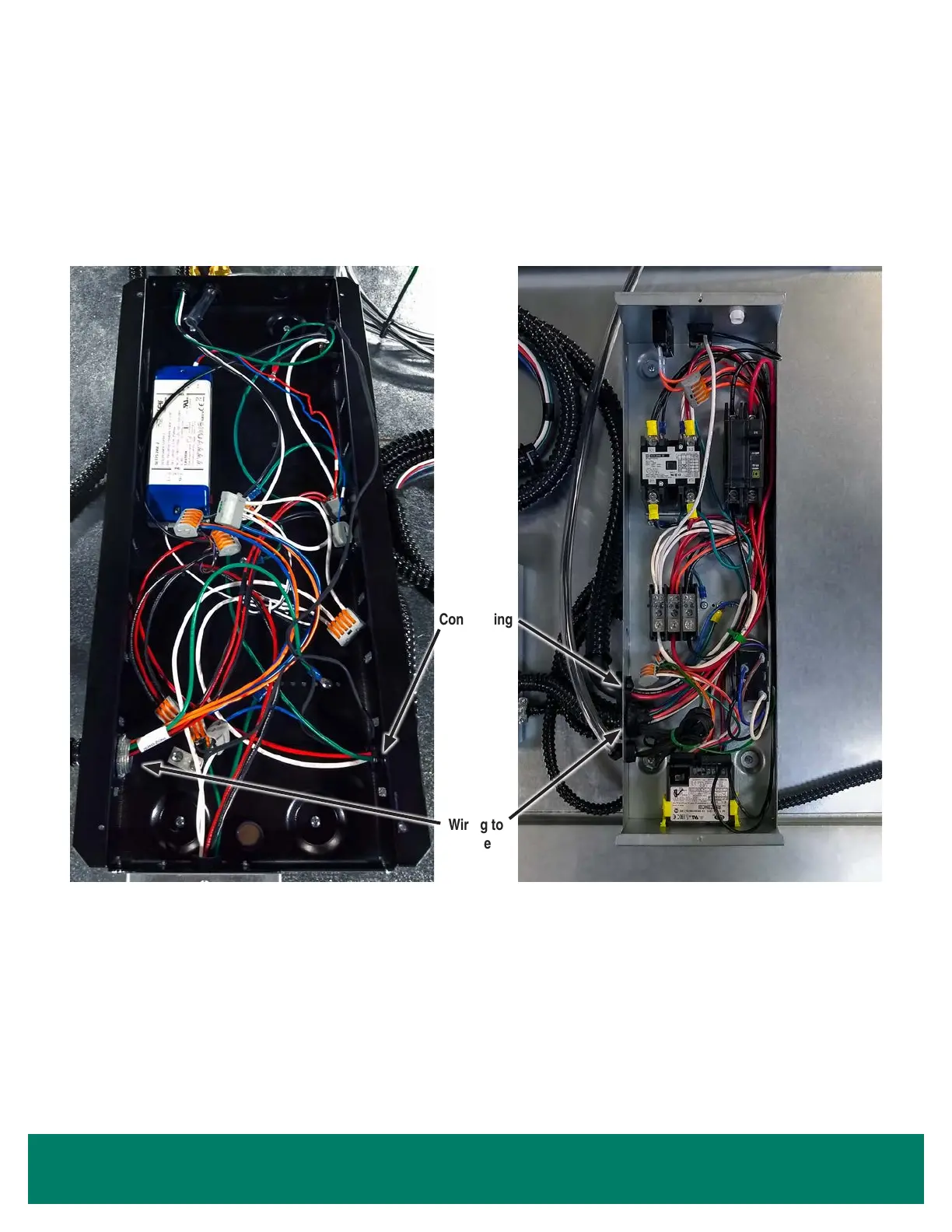

Case Electrical Connections - Crystal Merchandiser
®
Always refer to the wiring diagrams shipped with your case.
CRYSTAL
™
COOLER CRYSTAL
™
FREEZER
Wiring to
Condensing
Unit
Wiring to
Case
To Next Page
