PLUMBING
DRAIN LINE
The case drain is located at the center of the case in the oor pan. The PVC drain outlet is located at the center front of the case behind the
kickplate. To clean the drain, the kickplate must be removed for access. Crystal Merchandiser
®
and Highlight Merchandiser
®
use a 1" drain, and
Reveal Merchandiser
®
uses a 1 1/2" drain.
1. Install the drain lateral to the drain outlet.
2. Install the drain tee to the lateral.
3. Install the drain trap to the tee. Plug the open end of the tee using the clean-out plug supplied with the drain trap kit.
Highlight Merchandiser
®
uses a one-piece support bracket that holds the drain lateral and drain trap. It comes factory installed.
Crystal Merchandiser
®
and Reveal Merchandiser
®
come with a factory-installed drain lateral support. The trap support bracket is
shipped loose and must be eld-mounted to the case.
On cases with short bases (less than 2" tall), all drain support brackets must be eld installed.
4. Prime the drain trap with water after installation.
5. Make sure the drain line is pitched away from the case to the store oor drain. Consult local codes for minimum requirements.
Note: Typically, Hybrid
™
cases are equipped with a condensate removal system which includes a condensate pump, condensate
evaporation pan with heater element, and connecting tubing (See "Pump with Bracket Installation Instructions" on page 20).

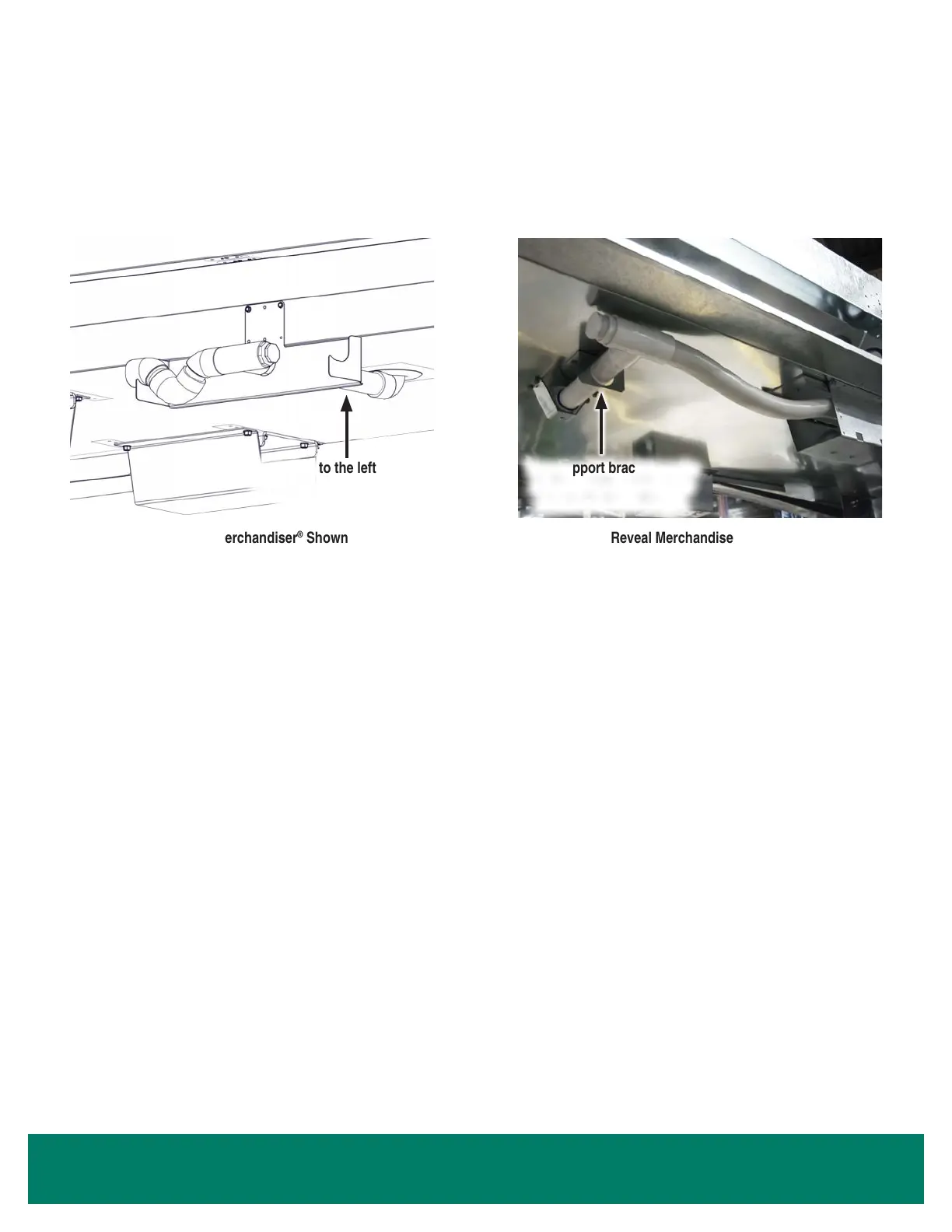

Case Drain Line to Floor Drain
(If Applicable)
Highlight Merchandiser
®
Shown
Drain trap to the left shown.
PVC parts can be ipped for
draining to the right.
Reveal Merchandiser
®
Shown
Trap support bracket can be
mounted on either side for
drains to the left or right.
