Zero Zone HYBRID RHLC30 - Balloon Guard Kit Installation

Options • 61
OPTIONS
Use the cotter pins to attach the plastic mesh to the condenser to prevent balloons or debris from blocking airow to the condenser. This
process varies depending on whether the condenser inlet/outlet piping is toward the back or the front of the display case.
SCENARIO 1: CONDENSER INLET/OUTLET TOWARD THE BACK OF CASE (2 COTTER PINS)
1. Orient the plastic mesh with the longer side against the condenser, and lay the edge of the mesh over the top of the condenser.
2. Press the mesh against the far end of the condenser and clip it down. The cotter pin should hold down a couple squares of the mesh in
order to shape the mesh.
3. Repeat the previous step at the near end of the condenser.
4. Bend the mesh into a domed shape. This will prevent balloons and other debris from slipping under the mesh.

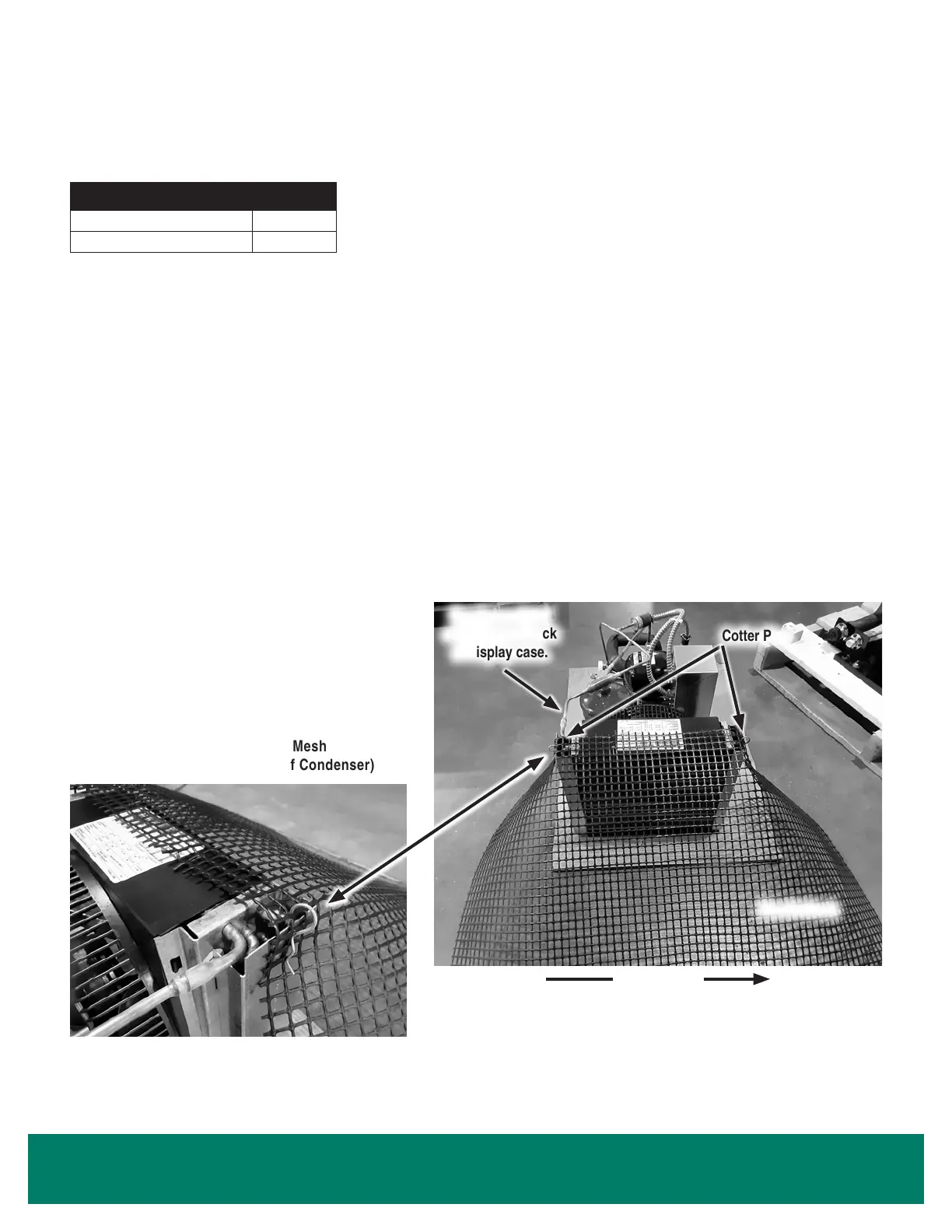

Balloon Guard Kit
Clip Down the Plastic Mesh
(Repeat at Far & Near Ends of Condenser)
Final Balloon Guard for Inlet/Outlet Toward the Back
Front of Case
Condenser inlet/
outlet toward back
of display case.
Cotter Pins
Plastic Mesh
DESCRIPTION QUANTITY
23 1/2" x 36" Plastic Mesh 1
3/32" x 2 5/16" Cotter Pin 3
