OPTIONS
Noise Reduction Kit

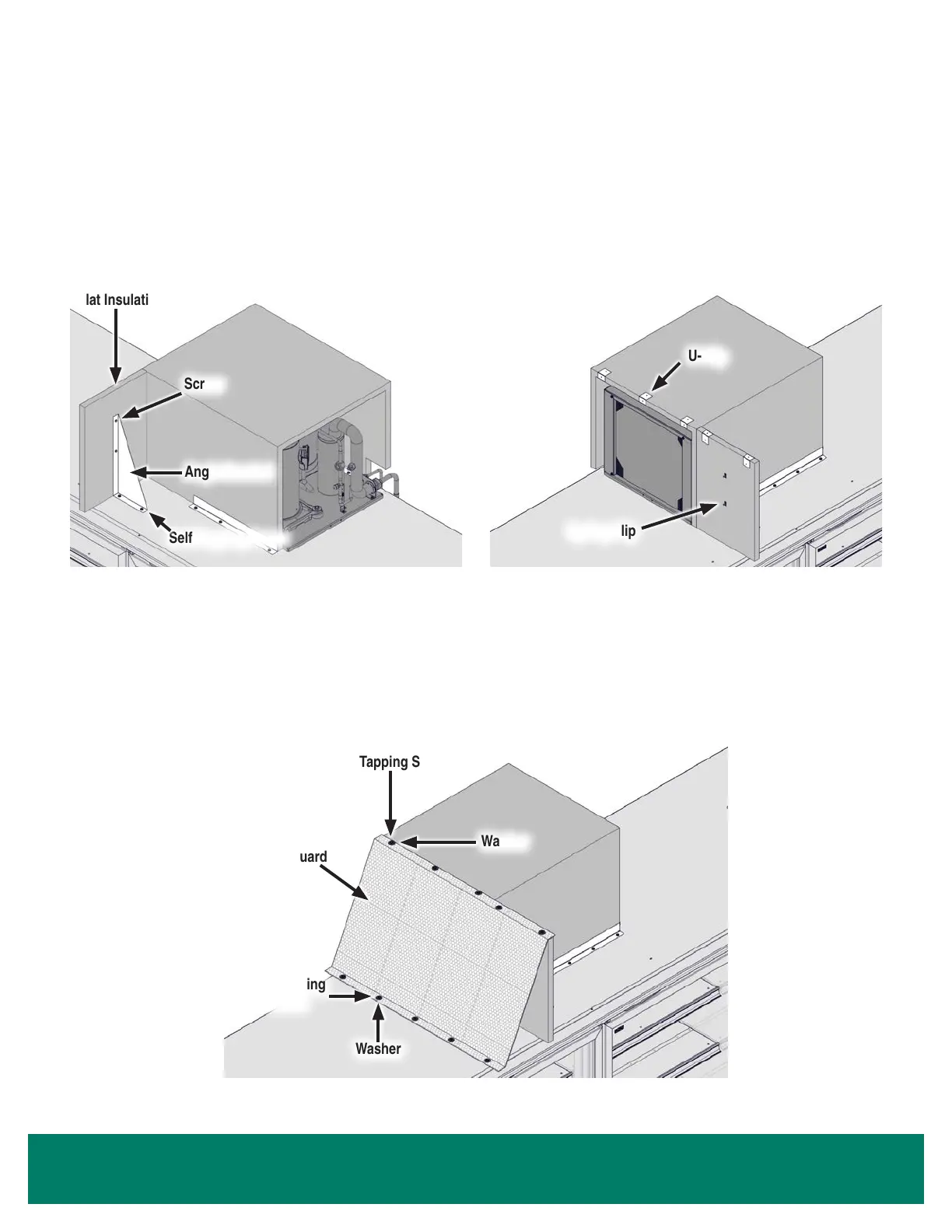

5. Align the at insulation panel with the edge of the U-shaped insulation panel as shown. Place the angle bracket against the middle of the
at insulation panel as shown. Fasten the angle bracket to the at insulation panel using 2 screws and 2 spring clips. Use 2 self-tapping
screws to fasten the angle bracket to the case top.
6. Slide 2 U-clips over the top of the at insulation panel. Slide 3 more U-clips onto the edge of the U-shaped insulation panel.
Flat Insulation Panel
Angle Bracket
Self Tapping Screw
Screw
Fasten Flat Insulation Panel and Angle Bracket
U-Clip
Spring Clip
Insert Screws into Spring Clips; Add U-Clips
Attach Balloon Guard to U-Clips and Case Top
Self-Tapping Screw
Washer
Balloon Guard
Self-Tapping
Screw
Washer
7. Position the balloon guard so that the longer edge rests on top of the U-clips. Use 1 washer and 1 self-tapping screw to fasten the balloon
guard to each U-clip.
8. Bend the balloon guard down to the case top, keeping the balloon guard straight. Fasten the balloon guard to the case top using 5 washers
and 5 screws evenly spaced along the balloon guard.
