Zero Zone HYBRID RHLC30 - Condensing Unit Electrical Connections

Electrical/Control • 19
ELECTRICAL/CONTROL
Always refer to the wiring diagrams shipped with your case.

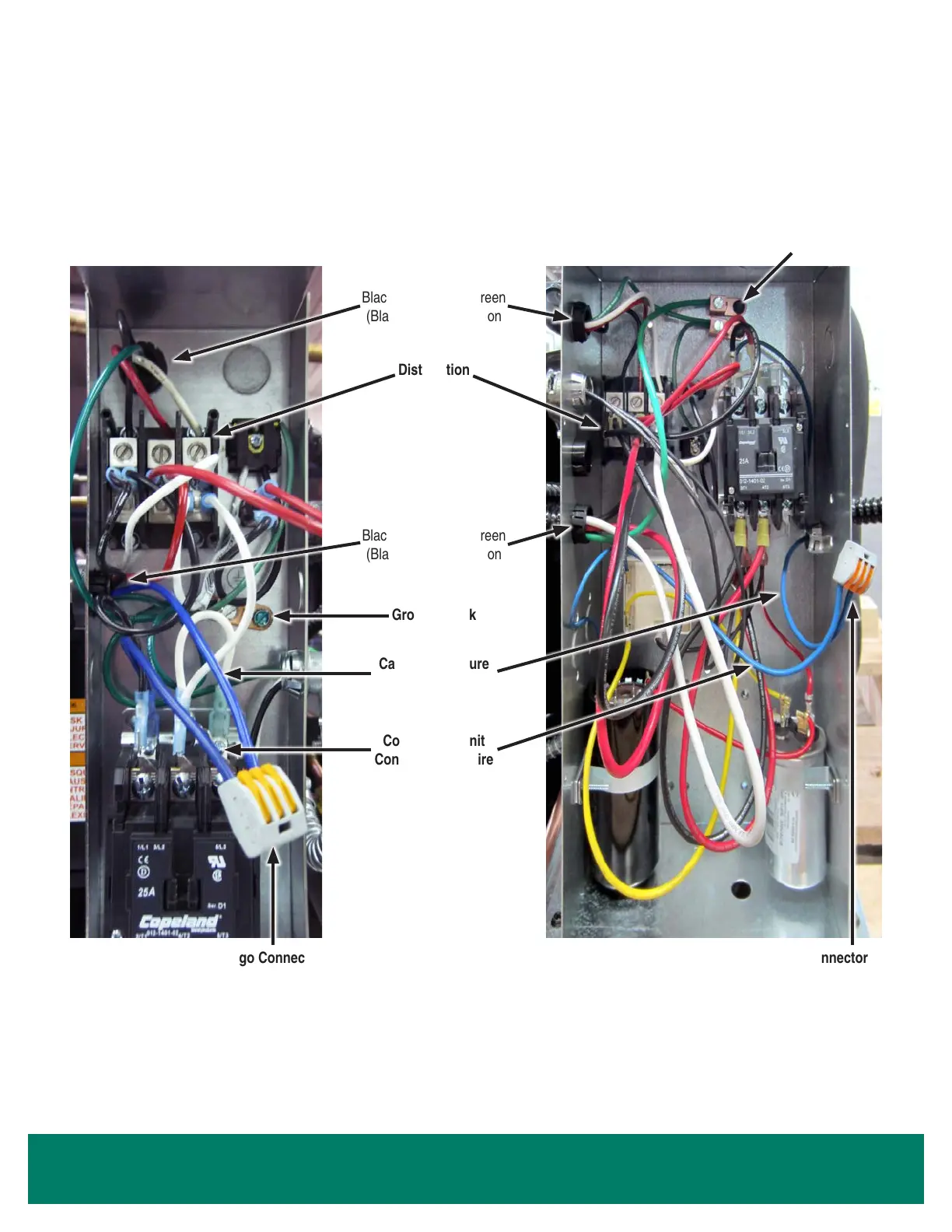

Condensing Unit Electrical Connections
SMALL CONDENSING UNIT LARGE CONDENSING UNIT
Wago Connector
(eld connection)
Wago Connector
(eld connection)
Case Temperature
Control Wire
Blue
Condensing Unit
Contactor Coil Wire
Blue
Customer Power
Black, Red, White, Green
(Black, White, Green on
1-door cases)
Distribution
Block
Case Power
Black, Red, White, Green
(Black, White, Green on
1-door cases)
Ground Block
Ground Block
