Plumbing • 25
PLUMBING
For Highlight Merchandiser
®
and Crystal Merchandiser
®
, plug the condensate evaporation pan into the case electrical box.
For Reveal Merchandiser
®
, condensate evaporation pans must be powered separately by the store.

4' and 6' cases use 1 evaporation pan (12.5 Amps, 1,500 Watts, 115V/1/60Hz electrical supply).

8' and 12' cases use 2 evaporation pans (25.0 Amps, 3,000 Watts, 115V/1/60Hz electrical supply).

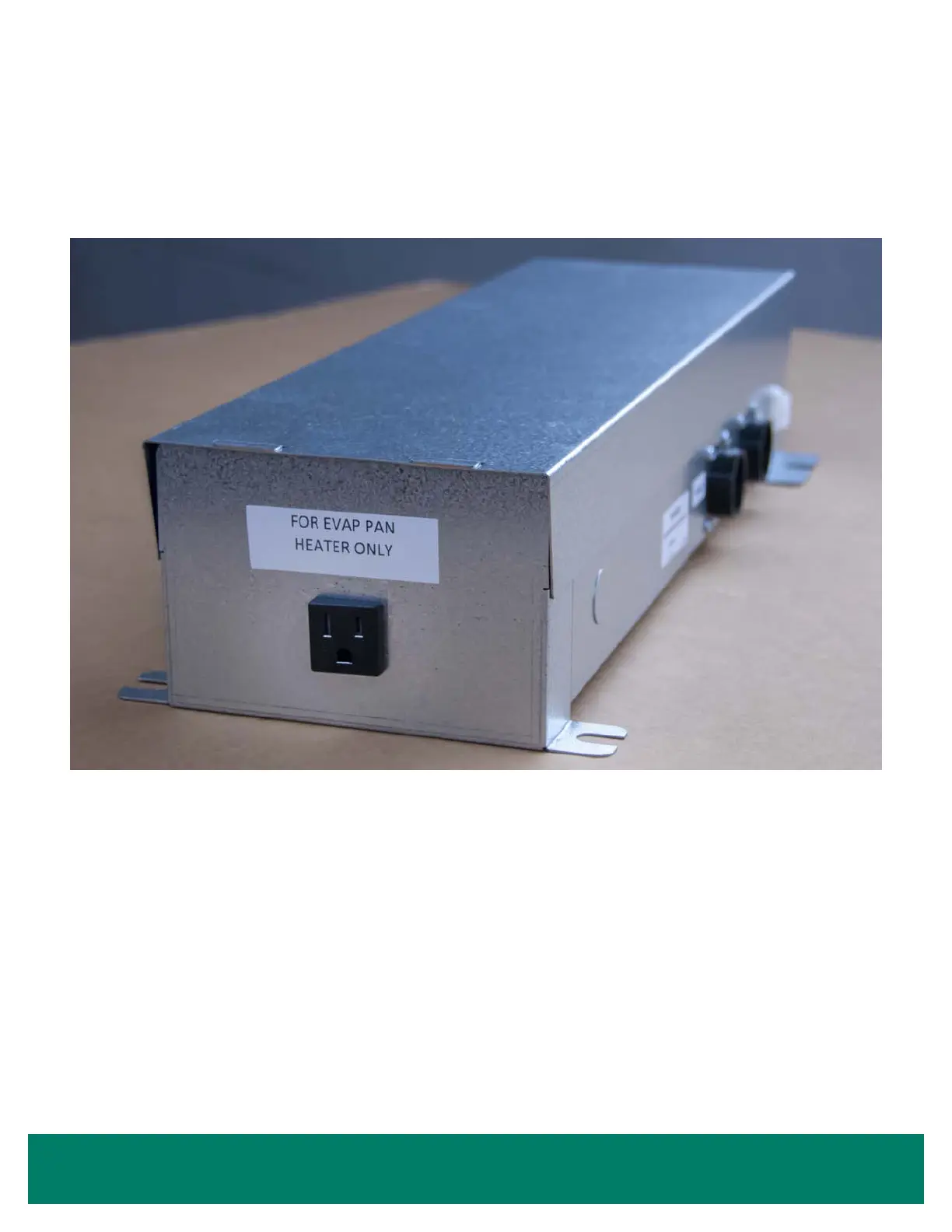

Power the Condensate Evaporation Pan
Highlight Merchandiser
®
Electrical Box Shown
