14 • Condensing Unit Connection
CONDENSING UNIT CONNECTION

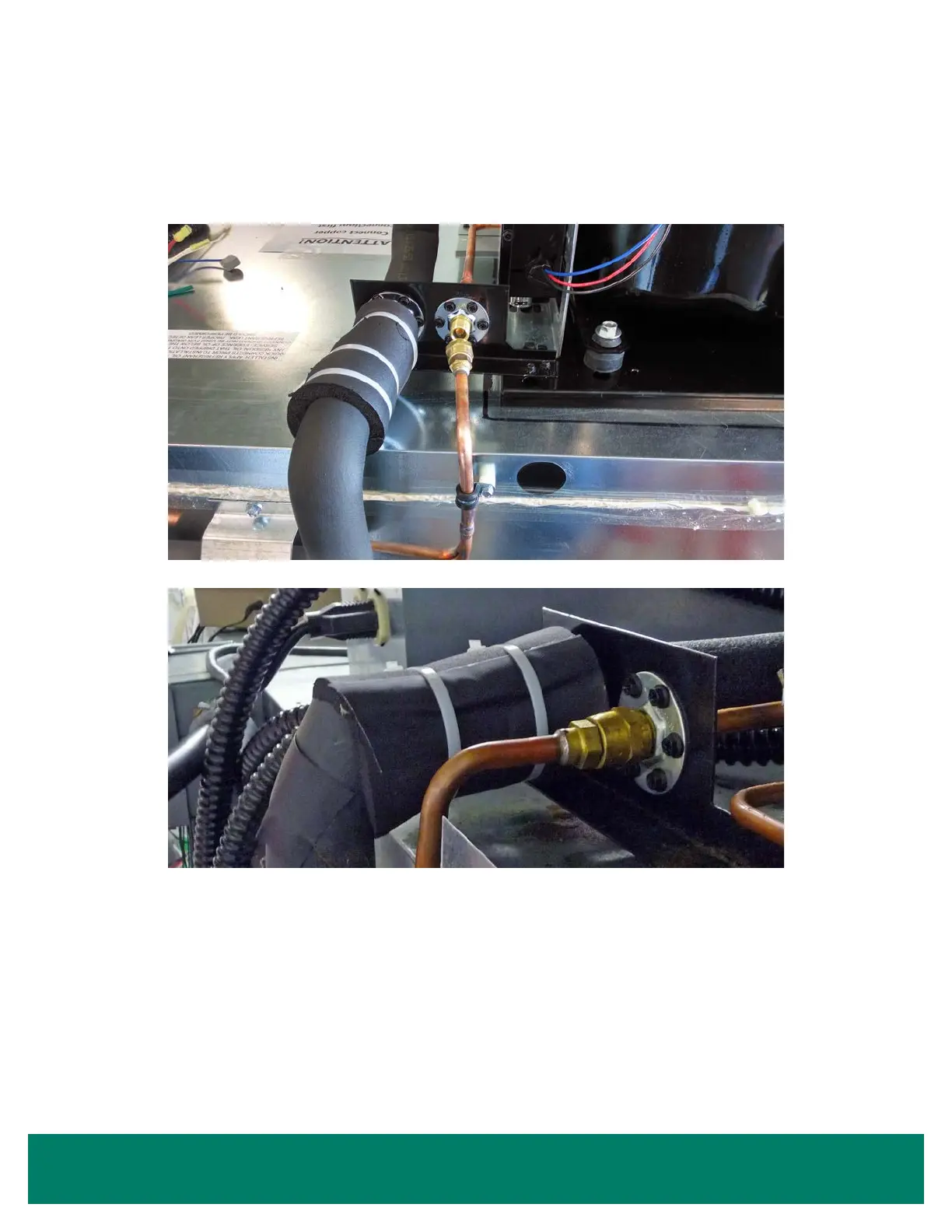

Insulation on Suction Line Quick-Connect
A pre-cut piece of split piping insulation (supplied) will be required on each freezer suction line quick-connect
coupling. Cable ties will also be provided.
1. Wrap piping insulation around the suction line quick-connect coupling. Position the insulation so that it
completely covers the quick-connect. (Insulation should not be added to the liquid line.)
2. Remove lm from adhesive strip on the insulation and adhere to other end.
3. Use cable ties to secure the insulation in place.
