Operation • 35
OPERATION
Electrical Enclosure Wire Colors
Anti-Sweat Heat (Highlight Merchandisers
®
and Crystal Merchandisers
®
only):
Black Wires: Sill
Red with White Wires: Mullion
Red Wires: Doors
Lighting:
Orange Wires
Defrost Heaters - Freezers Only (2):
Brown Wire: In Series with 80ºF High Limit
Black Wire: Defrost Heater
Fans:
Blue Wire

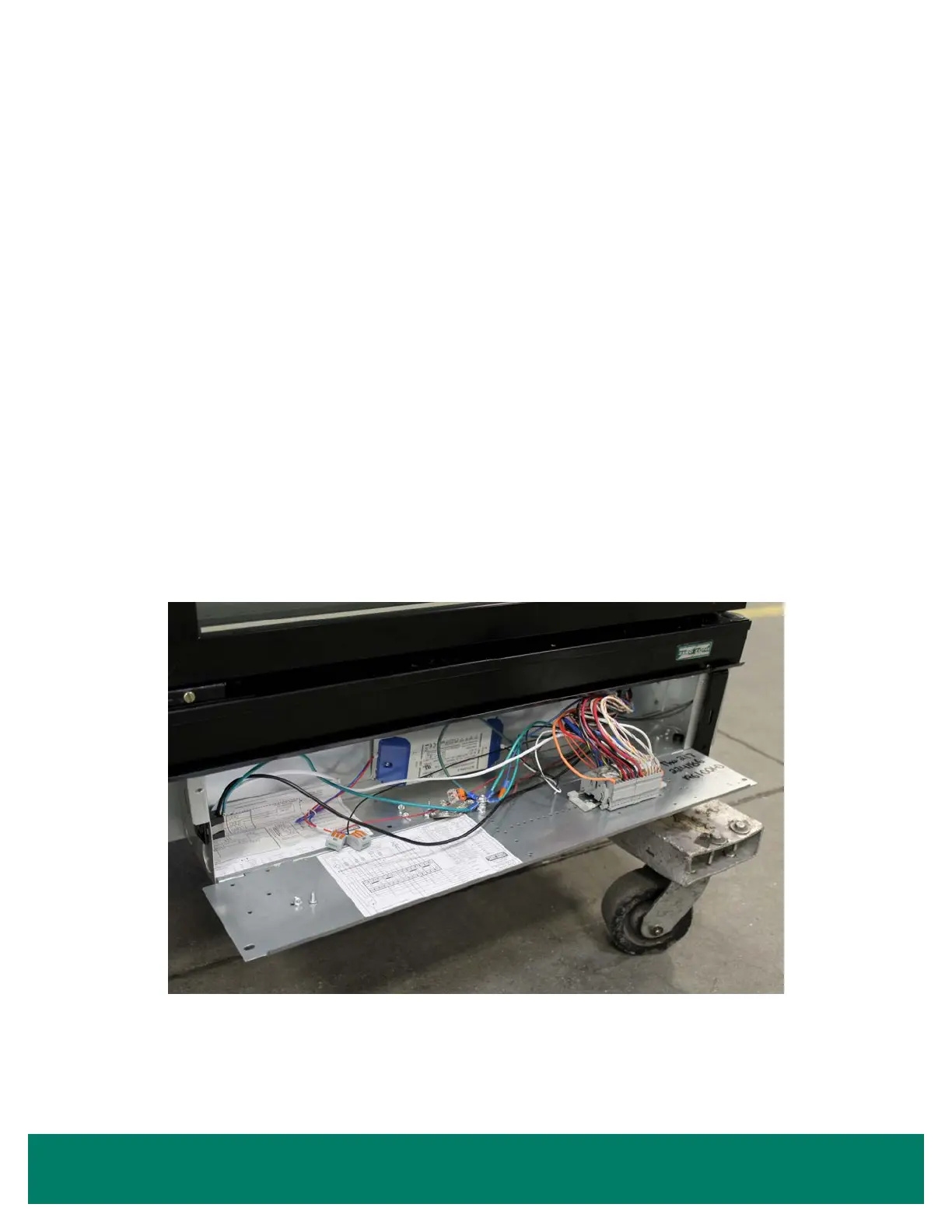

Highlight Merchandiser
®
Shown.
No connections required. No access to electrical box needed at installation.
Note: Reveal Merchandiser
®
and Highlight Merchandiser
®
use a bottom electrical enclosure. Crystal Merchandiser
®
uses a
top electrical enclosure.
