12 • Condensing Unit Connection
CONDENSING UNIT CONNECTION

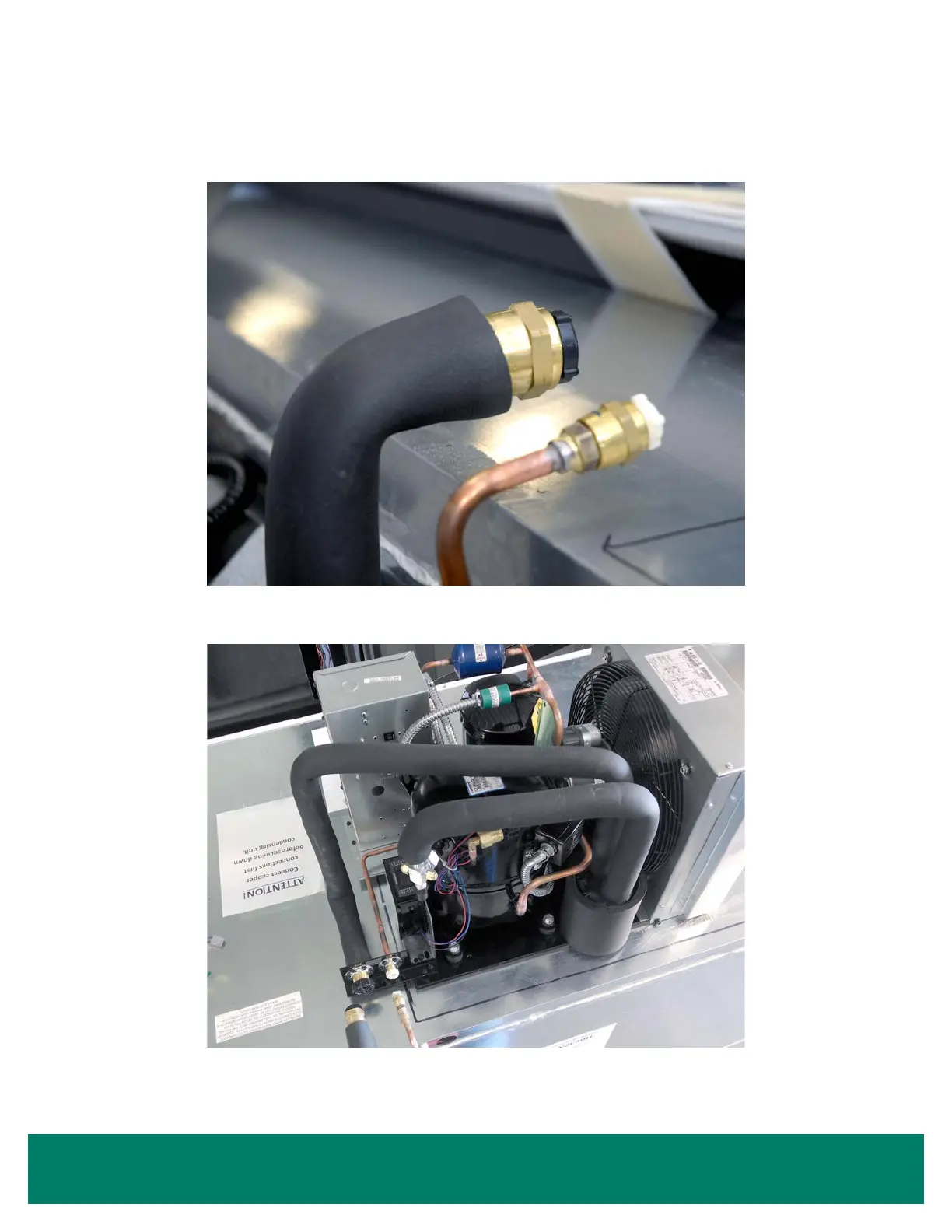

2. Place condensing unit with quick-connect couplings facing the back of the case.
3. Avoid scratching the front of the case.
1. Locate quick-connect couplings on the back of the case.
Setting the Condensing Unit
CONDENSING UNIT CONNECTION
