122
ELECTRO-HYDRAULIC SYSTEM
P+13HN001

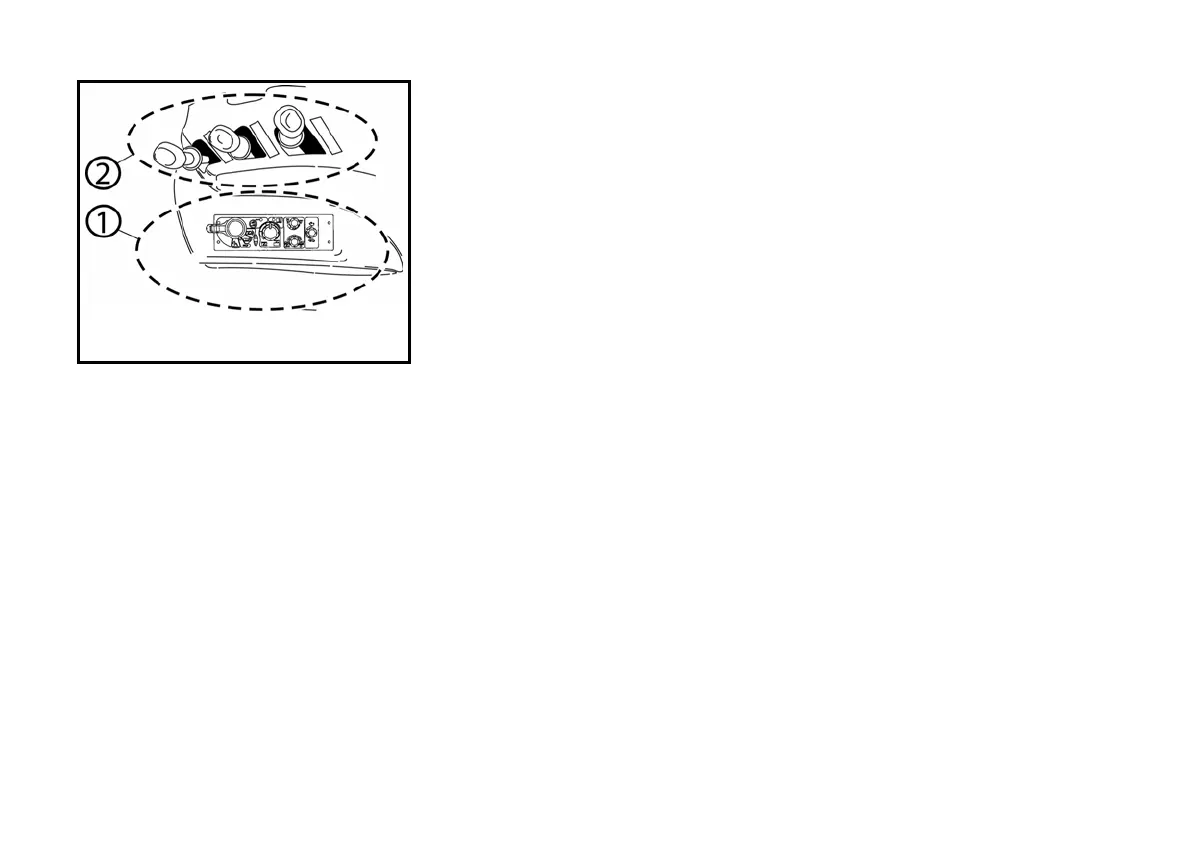

HYDRAULICS CONTROL PANEL
Hydraulics control panel is located in the
area of the right wing.
Controlling the rear three-point hitch is
enabled by the inner hydraulic circuit (1).
Controlling outer hydraulic circuits (cou-
plers) is enabled by outer hydraulic cir-
cuit (2).
