212
ADJUSTMENTS
E751
STRETCHING OF V-BELT
With correct stretching of the V-belt the
slack of the belt shall be 5.5mm when a
force 25N to one belt is applied.
Stretch the V-belt to the prescribed value
after releasing of the alternator fixing
screws (1, 2).
∗STRETCHING OF A/C COMPRESSOR
V-BELT

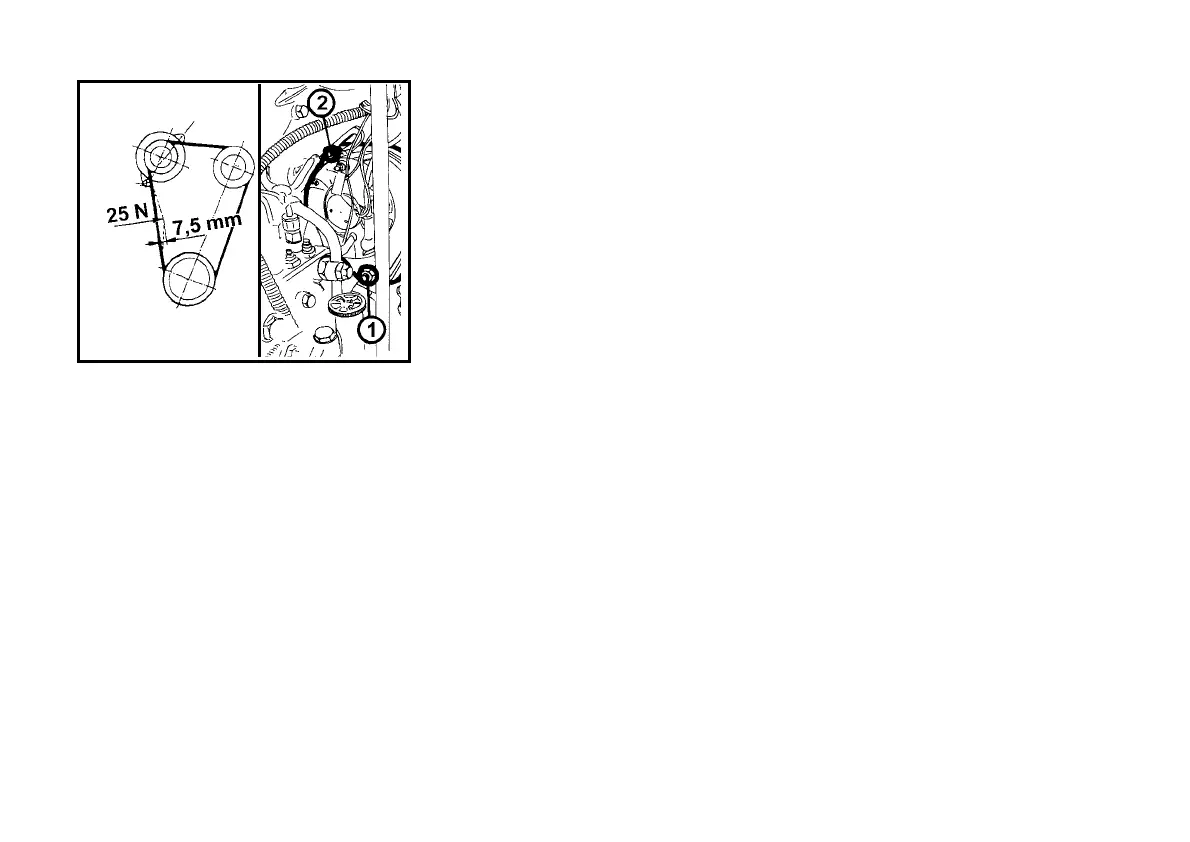

With correct stretching of the V-belt the
slack of the belt shall be 7.5mm when a
force 25N to one belt is applied.
Stretch the V-belt to the prescribed value
after releasing of the A/C compressor fix-
ing screws.
