ELECTRIC INSTALLATION

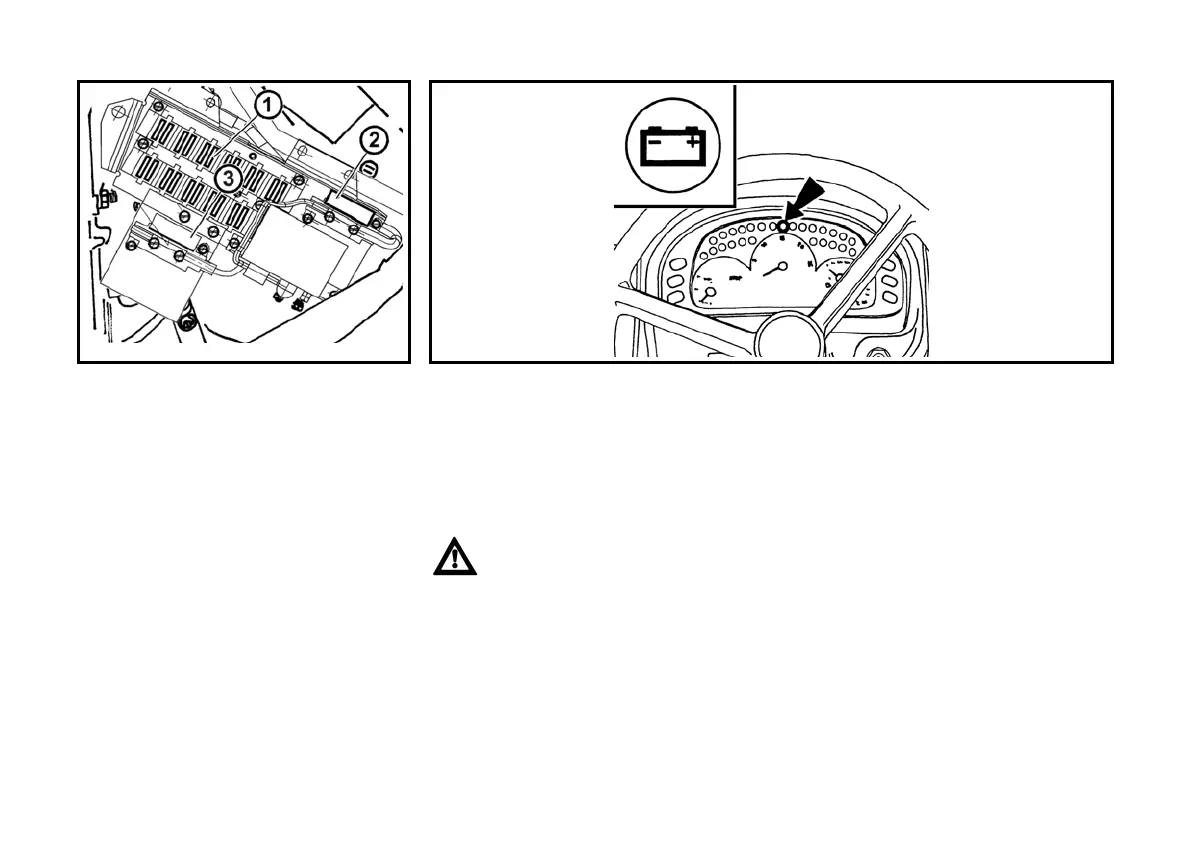

F13BN027 F13BN026
FUSE BOX
is accessible after removing the left cov-
er of steering console.
Fuses (1) are shear and when replacing
them, it is necessary to keep prescribed
values of the fuse. With repeated chop-
ping, find the nearest garage.
Ignition fuse (2) is strip of the size of
80 A.
Heating strip fuse (3) of the size of 30 A.
CHARGING CONTROL
Charging control has two functions.
If there is
1. red light with the engine running, it is a charging failure,
2. orange light signalizes a state when electrical installation of tractor has such intake
that the performance of alternator is insufficient for charging the accumulator.
If this condition occurs, turn an appliance off and the control is off.
The engine operation with a lit orange charging control can result in accumula-
tor depletion.
